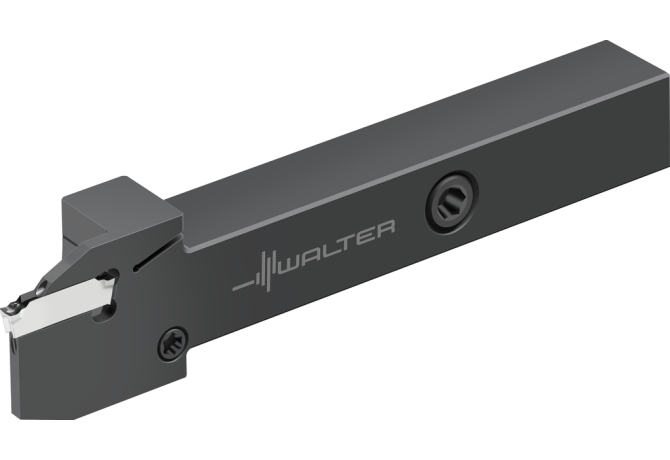

Главная Каталог продукции Toolunited 10 309-04 - Turning tool for OD grooving and parting G4014-1616R-2.5T17DX18-P

G4014-1616R-2.5T17DX18-P

Артикул: 7796062

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

17.5 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CW Cutting width

2.5 mm

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

DAXX Axial groove od max

35 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT16160115

DIN CSW1

W-DX182500***EX**

FamilyProducts

Shank tool – Radial grooving G4014...-P

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

16 mm

ID Technical product number

7796062

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A1616$$$$

ISO CSW1

WR$$DX182500***EX**

ISYC Subclass

309-04 - Turning tool for OD grooving and parting

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

0 Degree

LF Functional length

120 mm

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

1616

LOC-03 H Shank height

16 mm

LOC-03 ISO

VKT01A1616$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT16160115

LPR Protruding length

120 mm

MIID Master insert identification

DX18-2.5

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

G4014-1616R-2.5T17DX18-P

OAL Overall length

120 mm

THSC Tool holder shape code

G - straight shank design

Working process

DDA - External turning,DEA - Outer diameter grooving,DFA - External form turning,ESA - Cutting off

WT Weight of item

0.192 kg
