Главная Каталог продукции Toolunited 10 309-04 - Turning tool for OD grooving and parting G2016-3232N-19T40UX-P

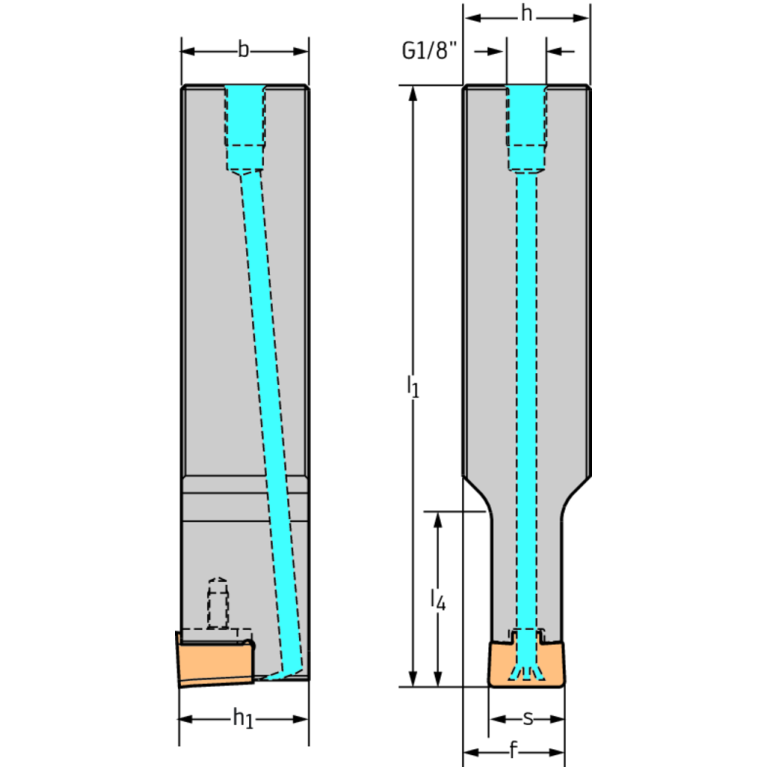

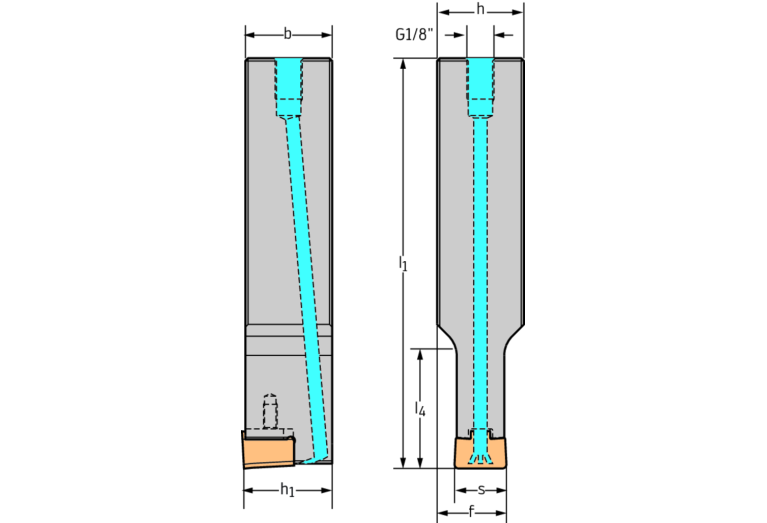

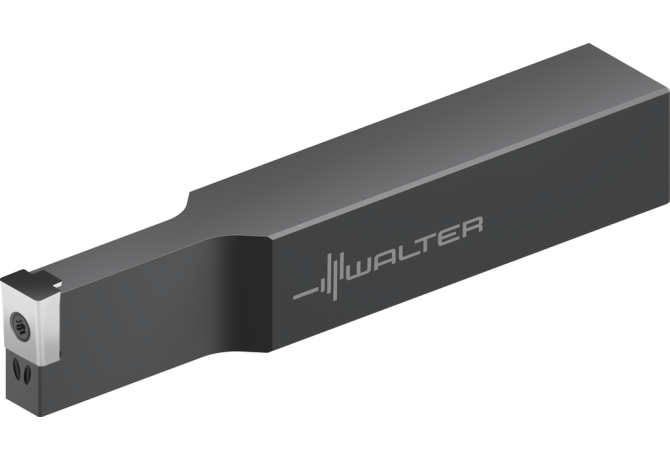

G2016-3232N-19T40UX-P

G2016-3232N-19T40UX-P G2016-3232N-19T40UX-P G2016-3232N-19T40UX-P

G2016-3232N-19T40UX-P

Walter
Артикул: 7789313
В наличии
В корзину
Описание
Характеристики
CDX Cutting depth maximum
41 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CW Cutting width
19 mm
CXSC Coolant exit style code
7 - With coolant supply (discharge), axial groove at shank
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT32320115
DIN CSW1
W-UX0019153**PA15
FamilyProducts
Shank tool – Radial grooving G2016...-P
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
N - Neutral
HF Functional height
32 mm
ID Technical product number
7789313
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
VKT01A3232$$$$
ISO CSW1
WR$$UX0019153**PA15
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
150 mm
LOC-03 B Shank width
32 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
3232
LOC-03 H Shank height
32 mm
LOC-03 ISO
VKT01A3232$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT32320115
LPR Protruding length
150 mm
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
G2016-3232N-19T40UX-P
OAL Overall length
150 mm
THSC Tool holder shape code
G - straight shank design
Working process
DEA - Outer diameter grooving
WT Weight of item
0.96 kg
