Главная Каталог продукции Toolunited 10 309-04 - Turning tool for OD grooving and parting CFIL2525M05R170110

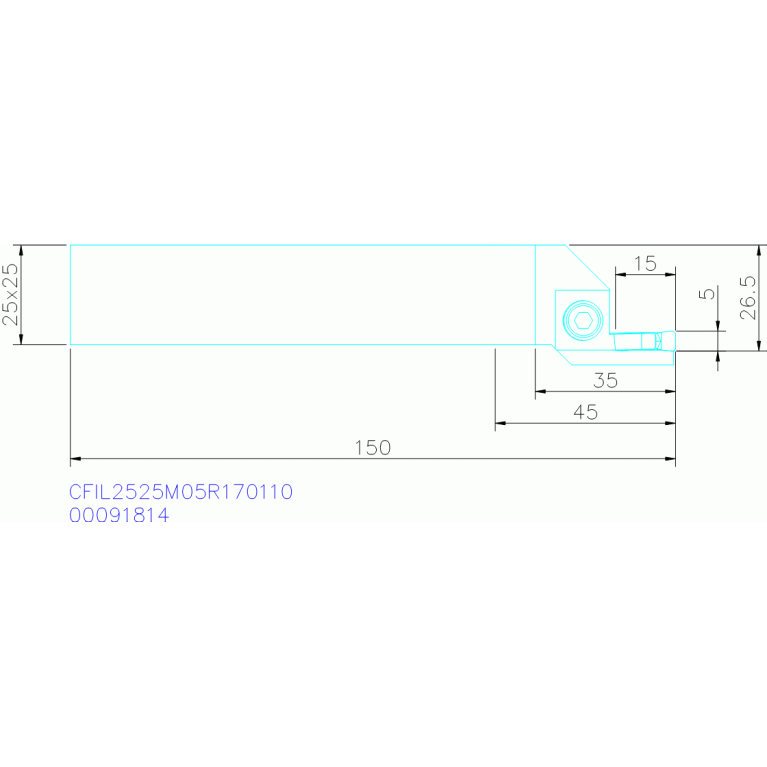

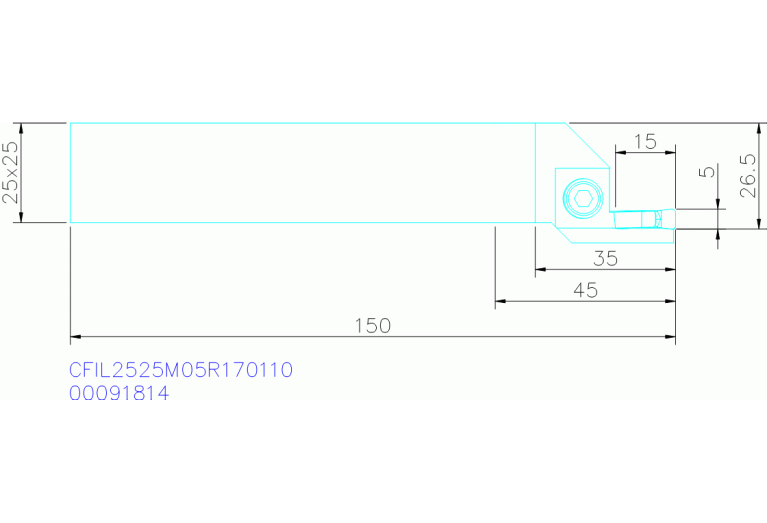

CFIL2525M05R170110

CFIL2525M05R170110 CFIL2525M05R170110 CFIL2525M05R170110

CFIL2525M05R170110

SECO Tools
Артикул: 00091814
В наличии
В корзину
Описание
Характеристики
A1A SKJ Cutting edge angle major Pos. A
1
A2A SKJ Stechbreite Nennmaß Schneidkörper Pos.A
4.76 mm
BLDA SKJ Tool style code Position A
1

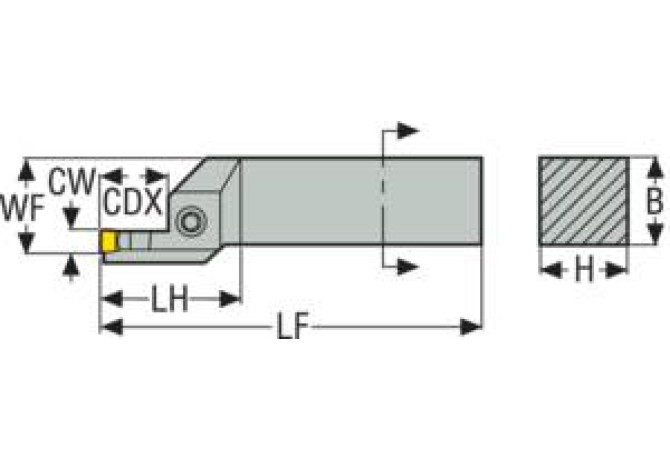

CDX Cutting depth maximum
15 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CW Cutting width
5 mm
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
VKT25250105
DIN CSW1
SO-SO LC 1605
FamilyProducts
CFIL2525M05R170110
G1A SKJ Schneidkörperlänge Schneidkörper Pos.A
17.67 mm
G7A SKJ Schneidkantenhöhe Schneidkörper Pos.A
4.17 mm
HAND Cutting direction
L - Left
ID Technical product number
00091814
Interface codes
J6 /
Interface codes CSW1
J41 / J441
ISO CSW1
SO$$LC1605**1LB****
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
KAPR Tool cutting edge angle
90 Degree
LF Functional length
150 mm
LH Head length
35 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2525
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
MIID Master insert identification
LC1605
Name Identifying order number
CFIL2525M05R170110
WF Functional width
26.5 mm
Working process
No working processes available
WT Weight of item
0.663 kg
