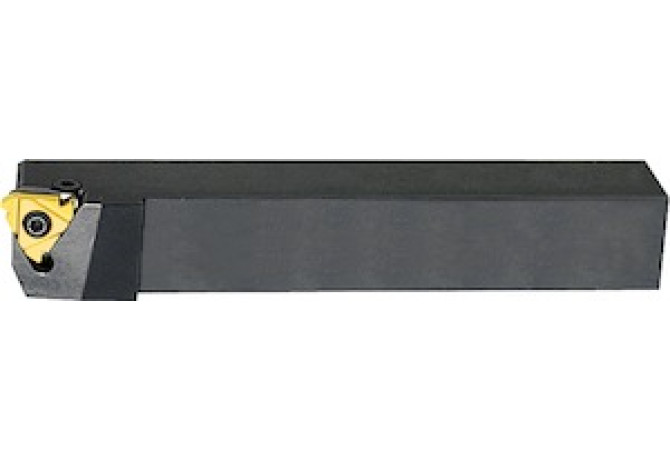

Главная Каталог продукции Toolunited 10 309-02 - Turning tool for external threading 272002 32/16

272002 32/16

272002 32/16 272002 32/16 272002 32/16

272002 32/16

Hoffmann Group
Артикул: 272002 32/16
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
8/1/2017
DIN
VKT32320105
DIN CSW1
HOG-RERE1616XX
FamilyProducts
GARANT Toolholder
GAMF Rake angle radial
-10 Degree
HAND Cutting direction
R - Right
HF Functional height
32 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-02 - Turning tool for external threading
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
-15 Degree
LF Functional length
173 mm
LOC-03 B Shank width
32 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
3232
LOC-03 H Shank height
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT32320105
LPR Protruding length
30 mm
MIID Master insert identification
RERE1616**
Name Identifying order number
272002 32/16
OAL Overall length
173 mm
SX Shank cross section shape code
01 - Square shank
WF Functional width
32 mm
Working process
No working processes available
