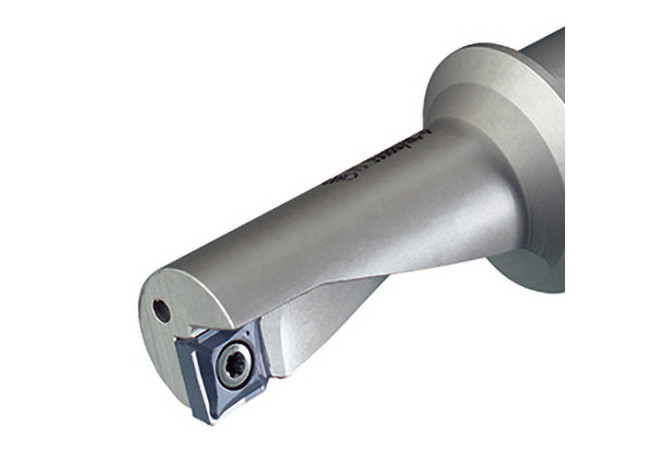

TCAP 14R-2.25DN-GV

Артикул: 3203445

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state

LL - Stock limited

DIN

ZYL01602215

DIN CSW1

XC0703043N

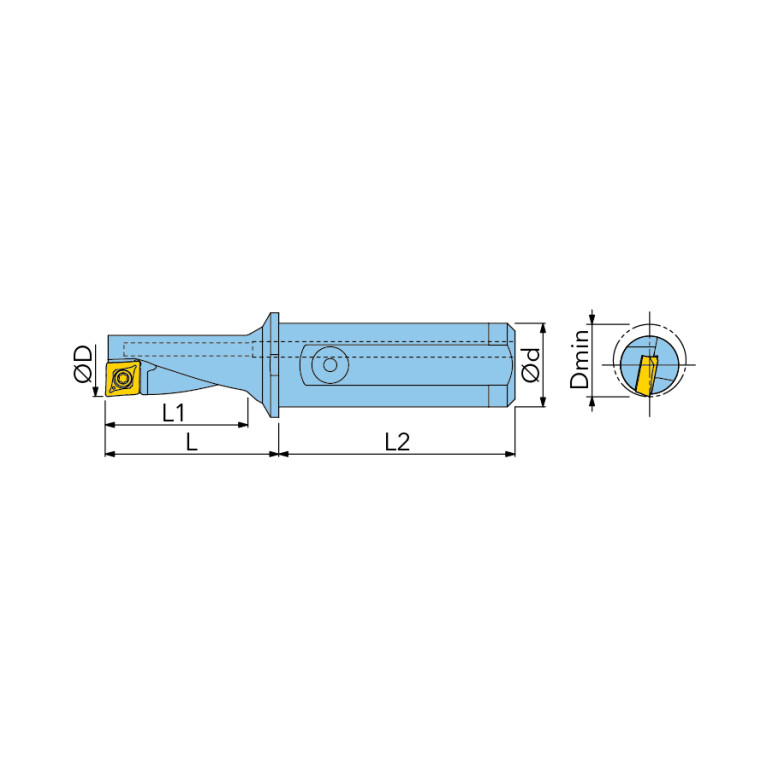

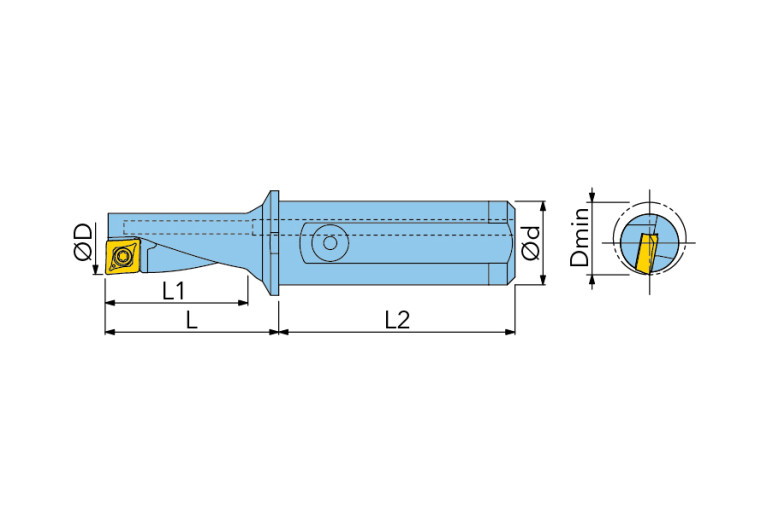

DMIN Minimum bore diameter

16.5 mm

FamilyProducts

TCAP 2.25DN

HAND Cutting direction

R - Right

ID Technical product number

3203445

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LF Functional length

38.5 mm

LH Head length

31.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01602215

Name Identifying order number

TCAP 14R-2.25DN-GV

OAL Overall length

38.5 mm

STDDES Standard designation

TCAP 14R-2.25DN-GV

Working process

No working processes available

WT Weight of item

0.1 kg
