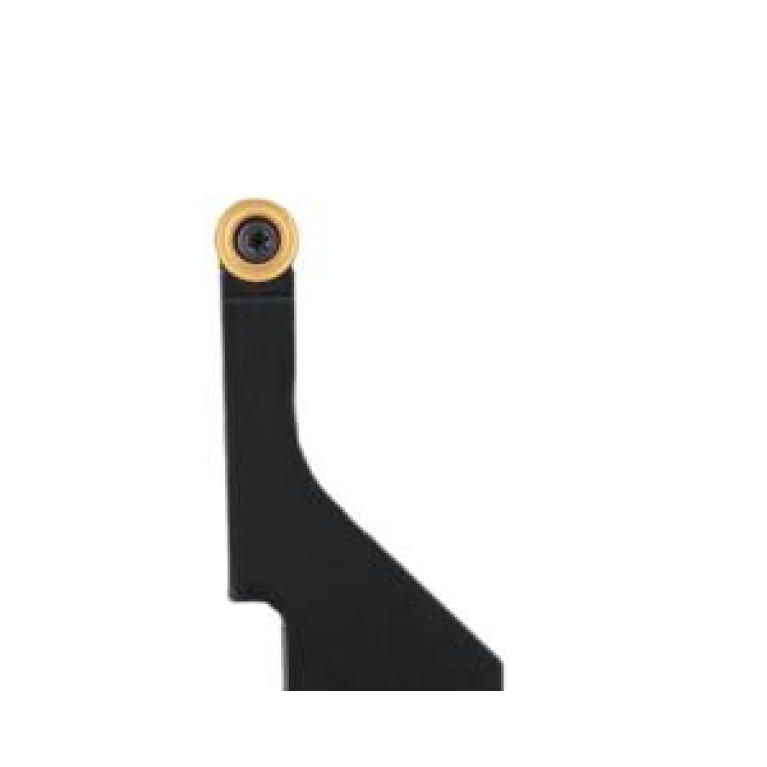

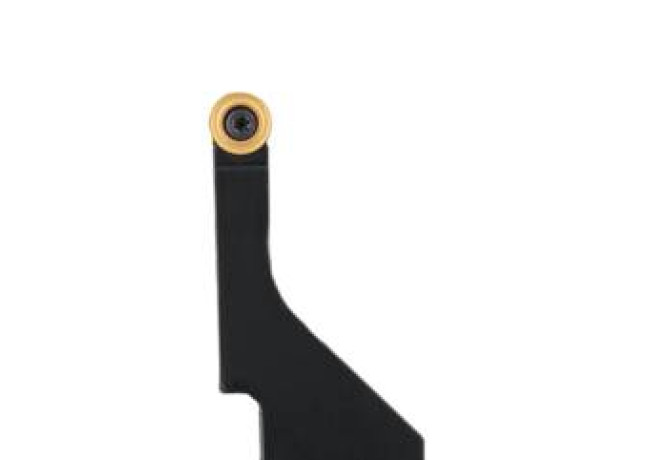

Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning SRGCL-20-2

SRGCL-20-2

SRGCL-20-2

Seco

Артикул: 00013357

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

8 mm

BLDA Tool style code Position A

10

C1A Insert thickness Pos. A

3.18 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2018

DIN

VKT20200125

DIN CSW1

SO-RC3-0803N

FamilyProducts

SRGCL-20-2

GAMO Rake angle orthogonal

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

ID Technical product number

00013357

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

45 Degree

LAMS Inclination angle

0 Degree

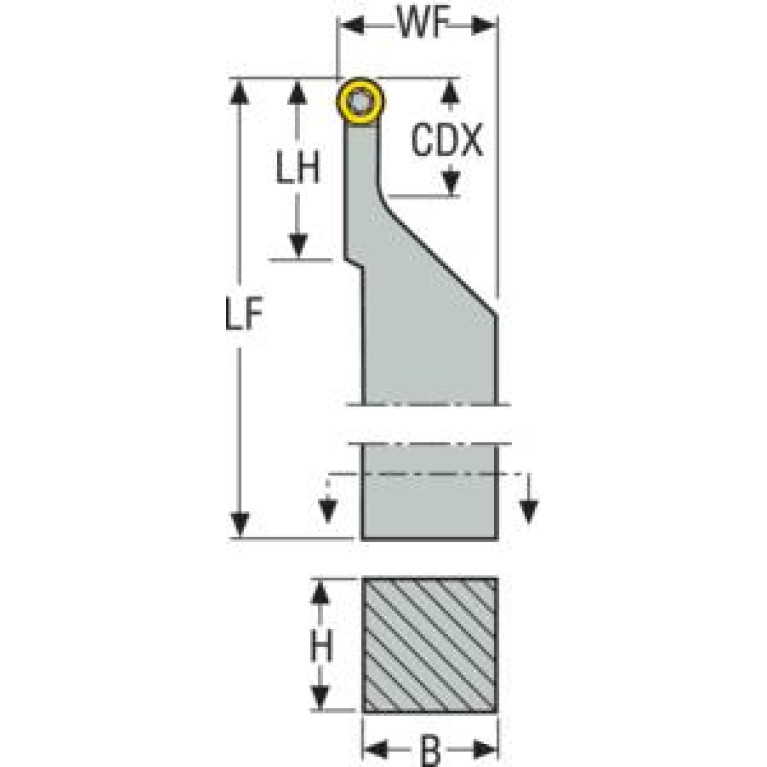

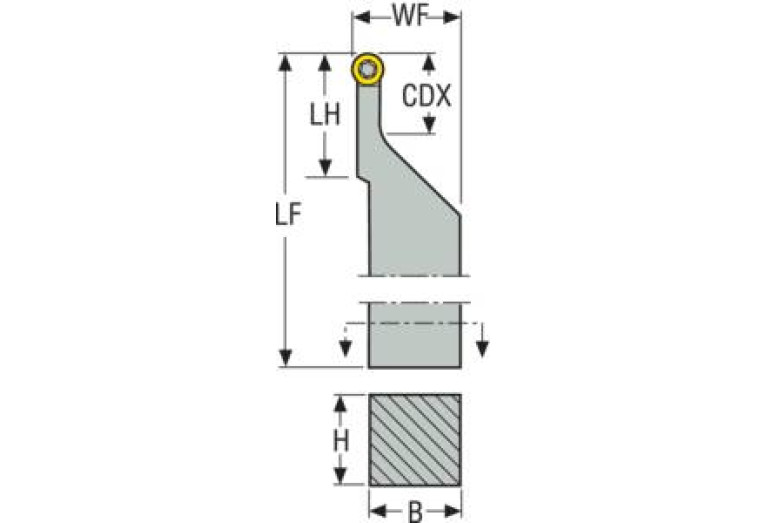

LF Functional length

153 mm

LH Head length

37.6 mm

LOC-03 B Shank width

31.75 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

2020

LOC-03 H Shank height

31.75 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200125

MIID Master insert identification

RCMT0803M0-F1

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

SRGCL-20-2

NameAnsi Identifying order number inch alternative

SRGCL20-2

STDDES Standard designation

SRGCL-20-2

THSC Tool holder shape code

A - offset shank design

WF Functional width

38.1 mm

Working process

No working processes available

WT Weight of item

0.88 kg
