Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning SDJCR-6-2

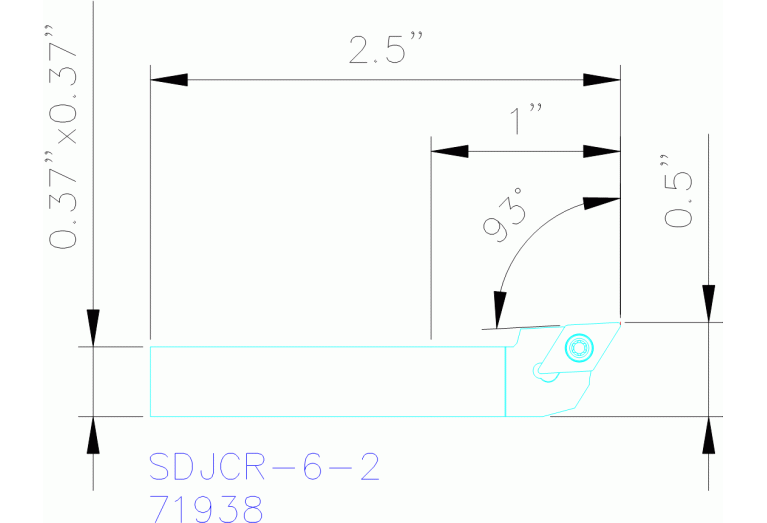

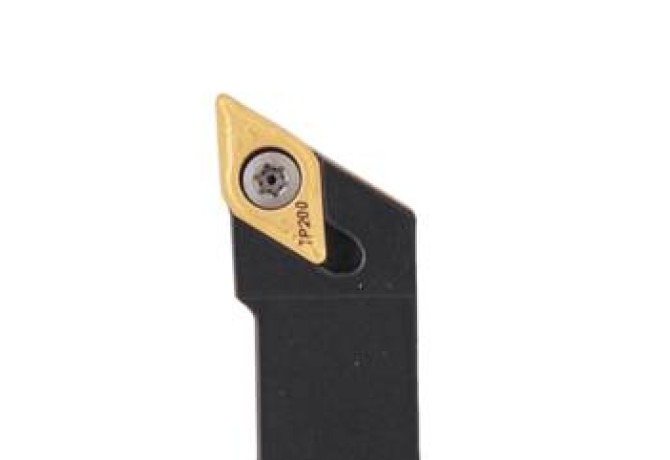

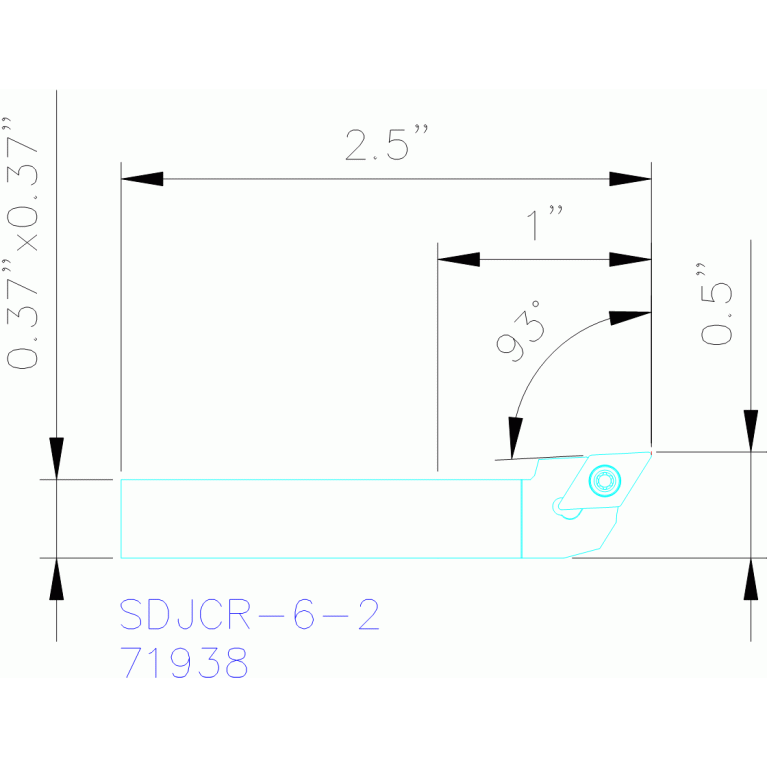

SDJCR-6-2

SDJCR-6-2

Seco

Артикул: 00071938

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

2.38 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.05 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2018

DIN

VKT06060125

EPSR Insert included angle

55 Degree

FamilyProducts

SDJCR-6-2

GAMO Rake angle orthogonal

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

HF Functional height

9.525 mm

ID Technical product number

00071938

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$DC0702**3RB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

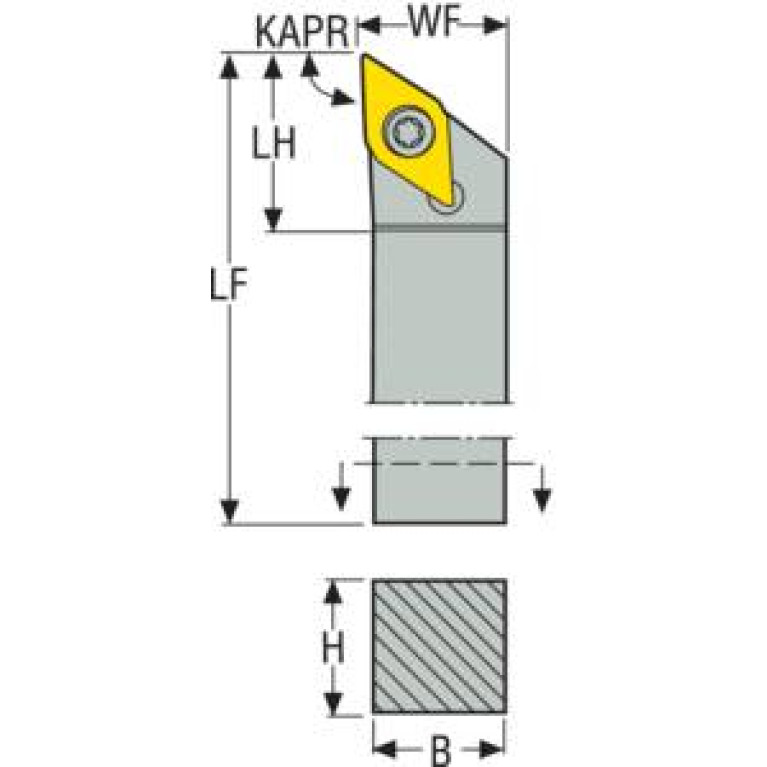

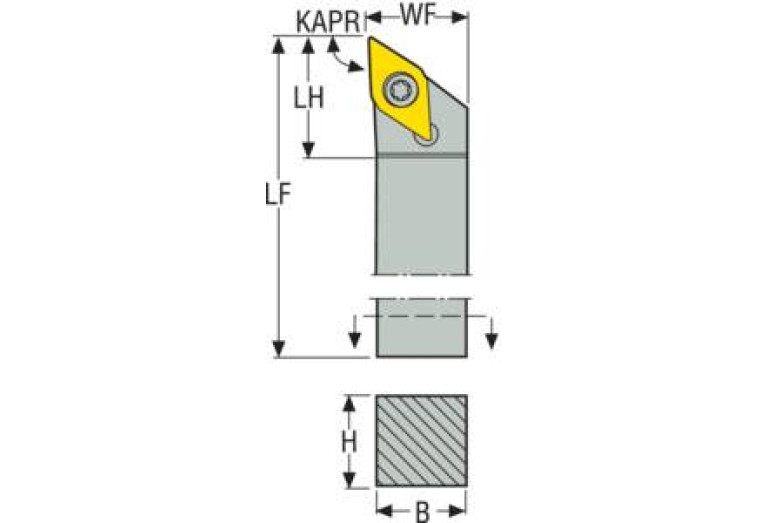

KAPR Tool cutting edge angle

93 Degree

LAMS Inclination angle

0 Degree

LF Functional length

63.5 mm

LH Head length

17.27 mm

LOC-03 B Shank width

9.53 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0606

LOC-03 H Shank height

9.53 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT06060125

MIID Master insert identification

DCGT0702005-F1

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

SDJCR-6-2

STDDES Standard designation

SDJCR-6-2

THSC Tool holder shape code

A - offset shank design

WF Functional width

12.7 mm

Working process

No working processes available

WT Weight of item

0.056 kg
