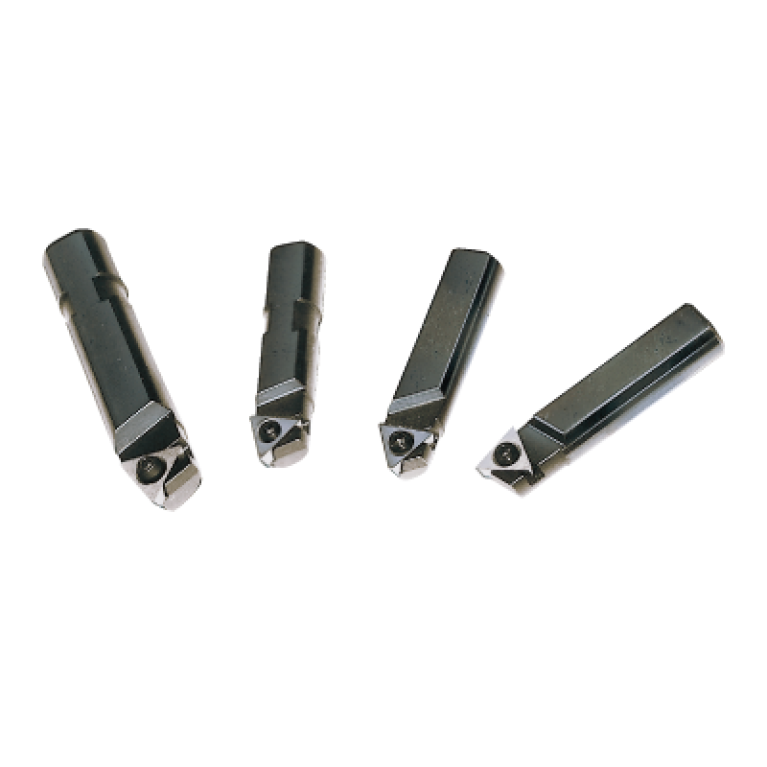

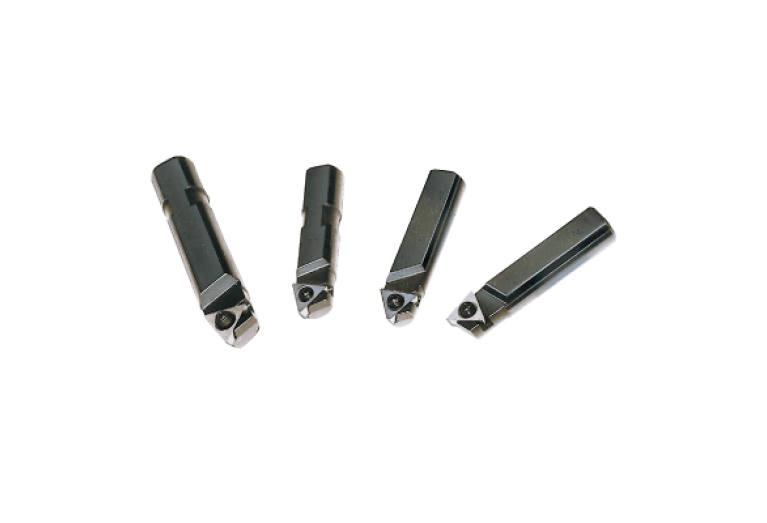

Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning SBR108

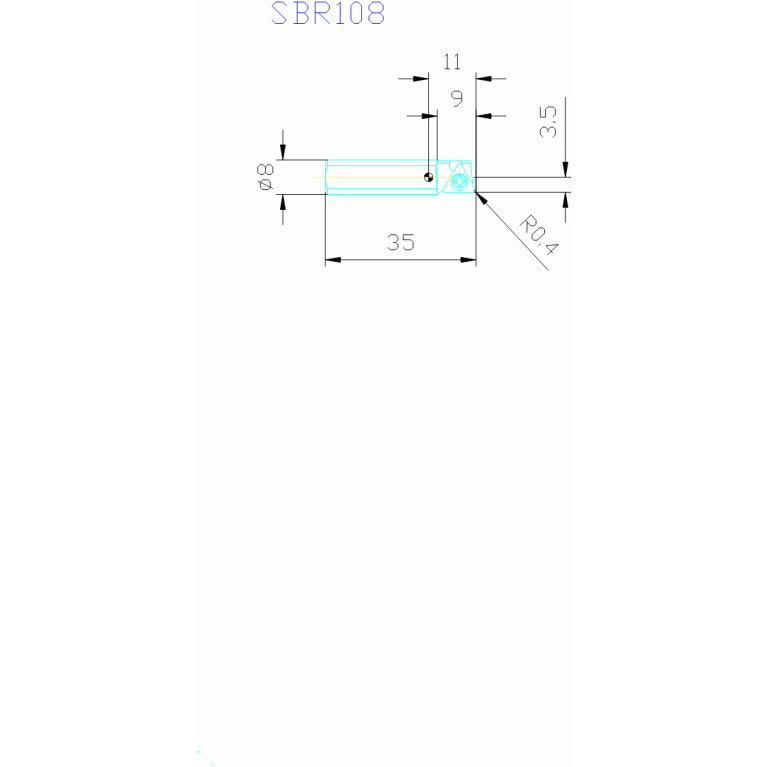

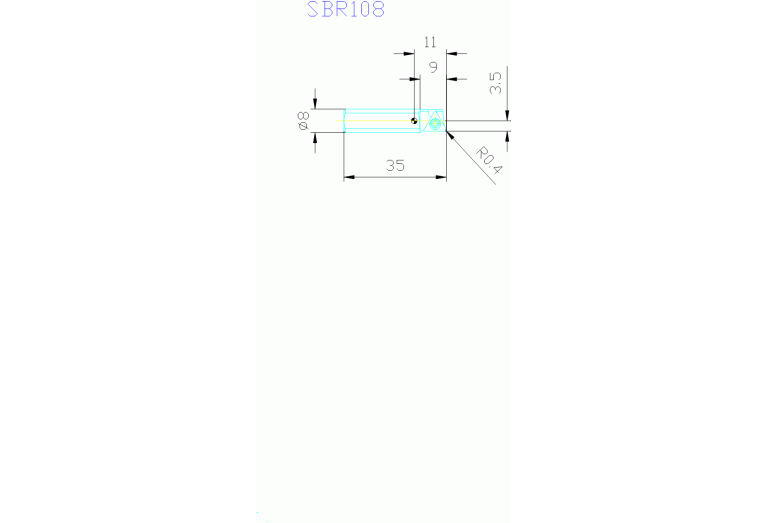

SBR108

SBR108 SBR108 SBR108 SBR108

SBR108

Mitsubishi Materials
Артикул: SBR108
В наличии
В корзину
Описание
Характеристики

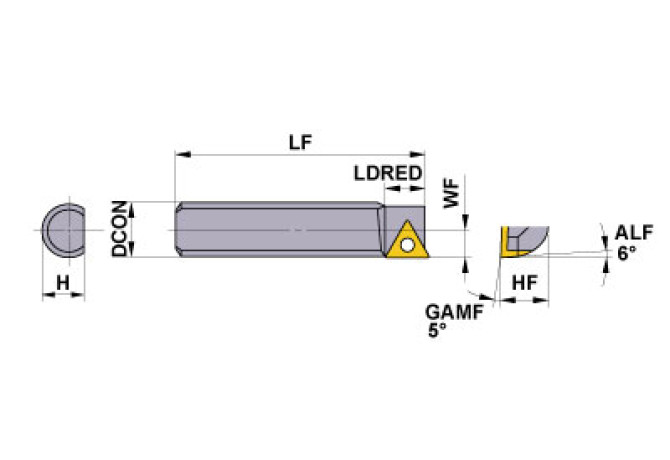

A2A Clearance angle major Pos. A
11 Degree
B3A Inscribed circle diameter Pos. A
4.76 mm
BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
2.38 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL00802205
DIN CSW1
TP0802 4N
EPSR Insert included angle
60 Degree
FamilyProducts
MI TYPE BORING BARS
HAND Cutting direction
R - Right
HF Functional height
7 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
LF Functional length
35 mm
LOC-03 B Shank width
8 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 H Shank height
7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802205
LPR Protruding length
9 mm
MIID Master insert identification
TPGX0802
Name Identifying order number
SBR108
OAL Overall length
35 mm
WF Functional width
3.5 mm
Working process
No working processes available
