Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning S40V-PWLNR08

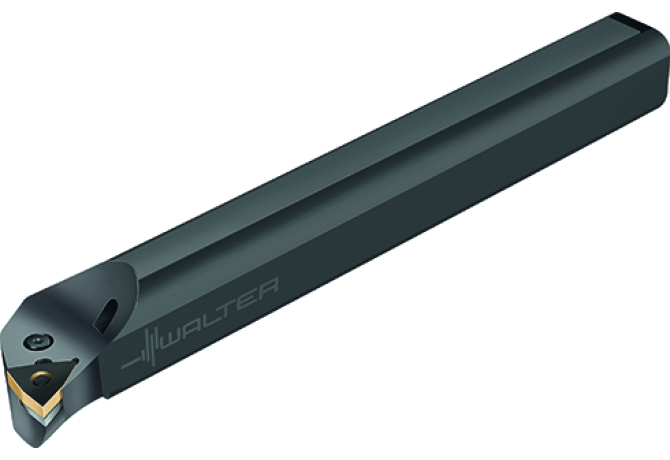

S40V-PWLNR08

S40V-PWLNR08

Walter

Артикул: 5044317

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL04002205

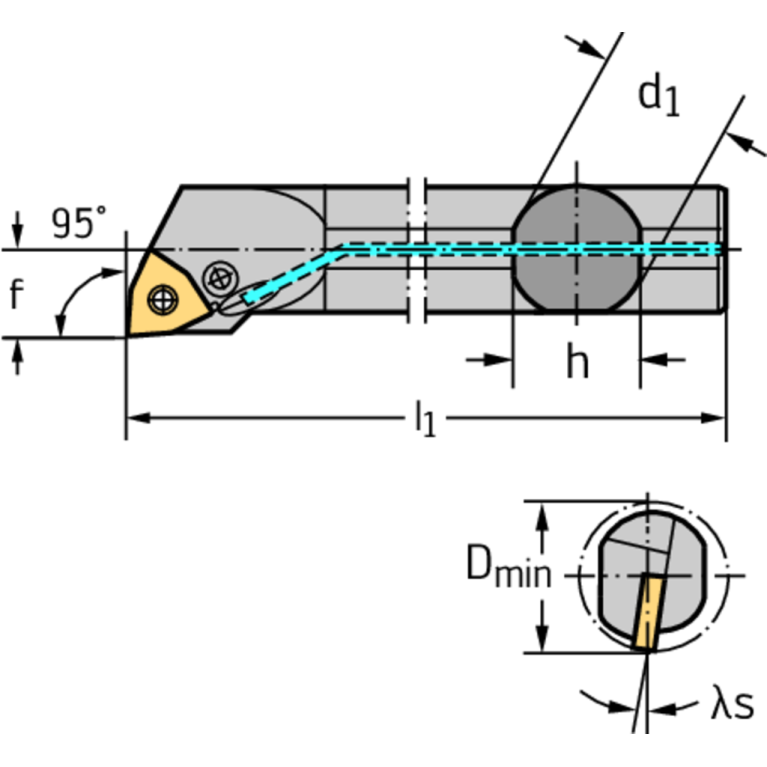

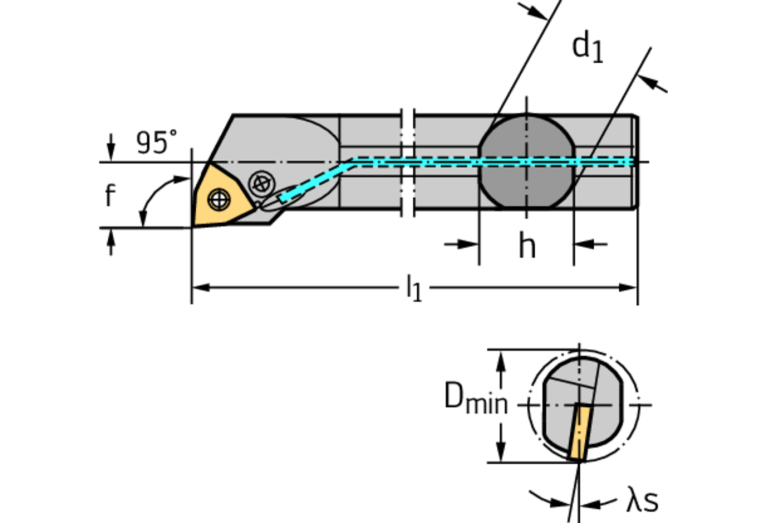

DMIN Minimum bore diameter

50 mm

EPSR Insert included angle

80 Degree

FamilyProducts

Boring bar – Lever clamping A...-PWLN

GAMO Rake angle orthogonal

-6 Degree

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

5044317

Interface codes

J6 / J61

Interface codes CSW1

/ J441

ISO

ZYL22G4000$$$$

ISO CSW1

ISO$WN0804002******

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

LAMS Inclination angle

-10 Degree

LF Functional length

400 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 H Shank height

39 mm

LOC-03 ISO

ZYL22G4000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04002205

LPR Protruding length

65 mm

MIID Master insert identification

WNMG 432

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

S40V-PWLNR08

OAL Overall length

400 mm

WF Functional width

27 mm

Working process

No working processes available

WT Weight of item

0 kg
