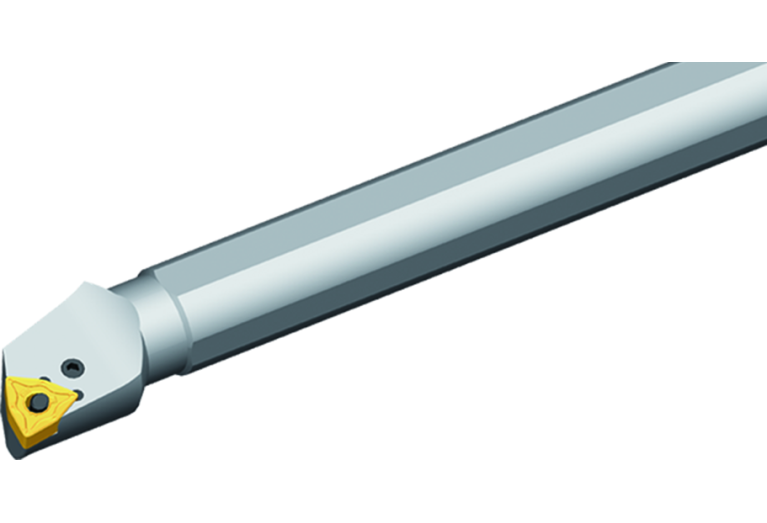

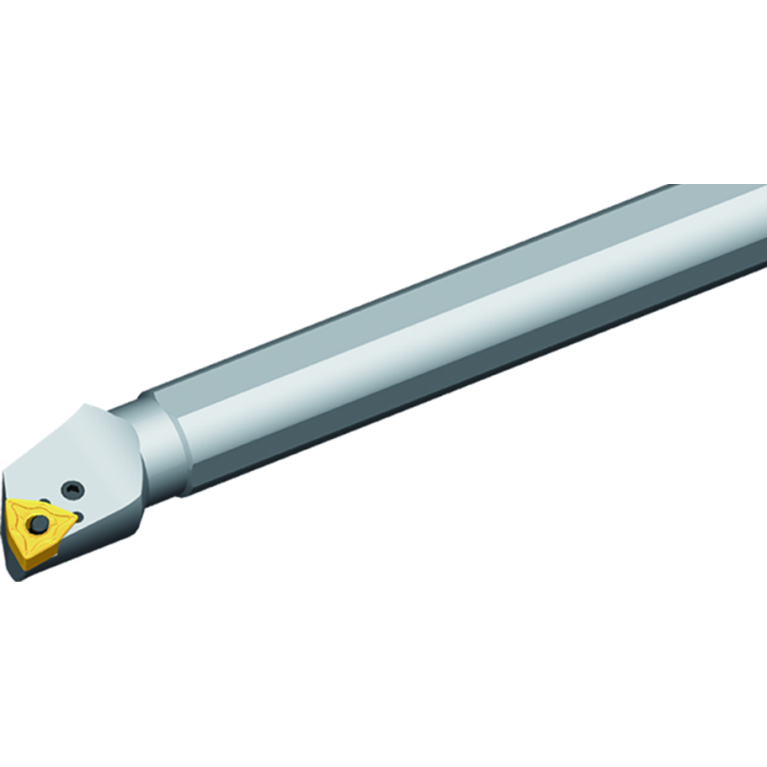

Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning S32U-PWLNL08

S32U-PWLNL08

S32U-PWLNL08

Артикул: S32U-PWLNL08

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

7

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.4 mm

DCC Design configuration style code

S - Solid steel, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state valid from

20.65 kg

DIN

ZYL03202205

DIN CSW1

WN0804162N

DMIN Minimum bore diameter

40 mm

EPSR Insert included angle

80 Degree

FamilyProducts

WN** steel boring bar

GAMF Rake angle radial

-15 Degree

HAND Cutting direction

L - Left

ID Identifying order number

S32U-PWLNL08

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

8.7 mm

LF Functional length

350 mm

LH Head length

50 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 H Shank height

30 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03202205

MIID Master insert identification

WNMG080404

MTP Clamping type code

P - Hole clamping, with straight bore

OAL Overall length

350 mm

STDDES Standard designation

S32U-PWLNL08

SX Shank cross section shape code

31 - (left) Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

22 mm

Working process

No working processes available
