Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning S32T-MVLNL16

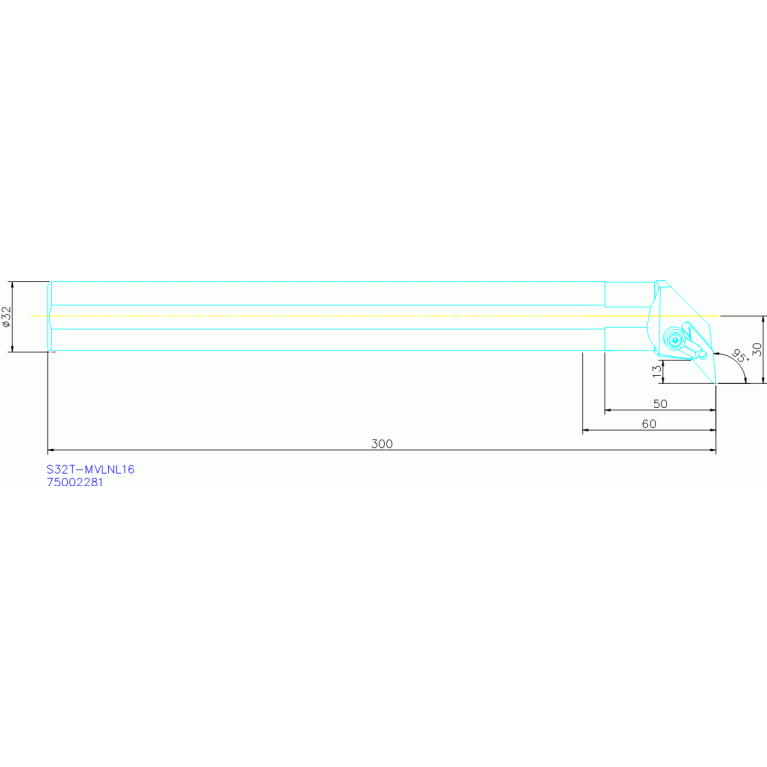

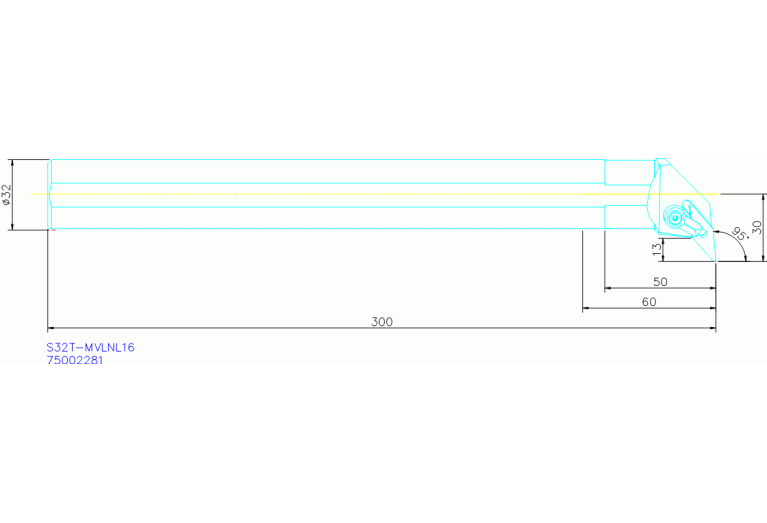

S32T-MVLNL16

S32T-MVLNL16 S32T-MVLNL16 S32T-MVLNL16 S32T-MVLNL16

S32T-MVLNL16

Seco
Артикул: 75002281
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL03202215
DMIN Minimum bore diameter
48 mm
EPSR Insert included angle
35 Degree
FamilyProducts
S32T-MVLNL16
GAMO Rake angle orthogonal
-5 Degree
HAND Cutting direction
L - Left
ID Technical product number
75002281
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$VN1604**2LB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

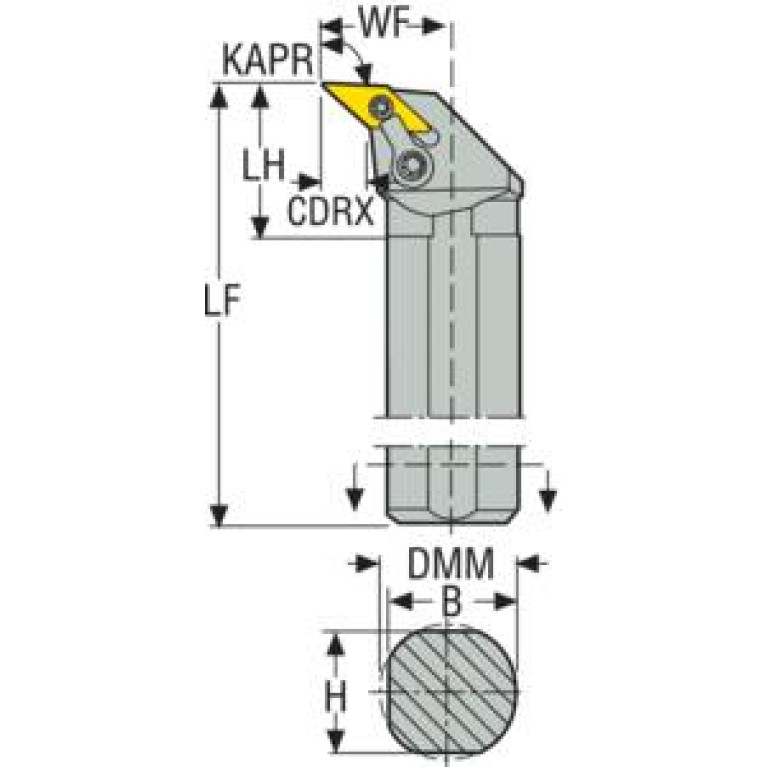

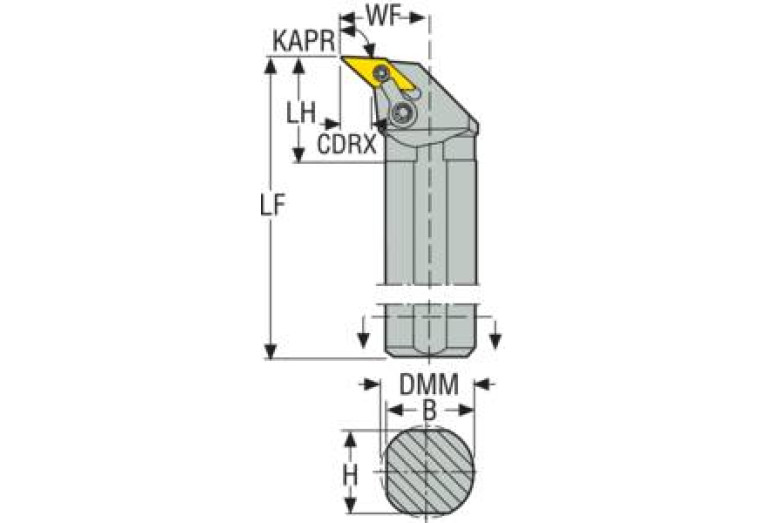

KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
-12 Degree
LF Functional length
300 mm
LH Head length
50 mm
LOC-03 B Shank width
31 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 H Shank height
30 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03202215
MIID Master insert identification
VNGA160402S-01020-L1-B
MTP Clamping type code
M - Top and hole clamping, with cylindrical bore
Name Identifying order number
S32T-MVLNL16
STDDES Standard designation
S32T-MVLNL16
THSC Tool holder shape code
A - offset shank design
WF Functional width
30 mm
Working process
No working processes available
WT Weight of item
1.762 kg
