Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning S32T-MCLNL12

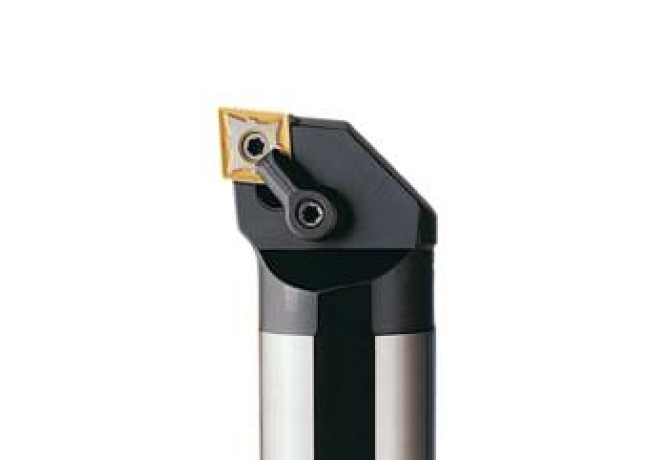

S32T-MCLNL12

S32T-MCLNL12

Seco

Артикул: 75002245

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

4.76 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.397 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL03202215

DMIN Minimum bore diameter

40 mm

EPSR Insert included angle

80 Degree

FamilyProducts

S32T-MCLNL12

GAMO Rake angle orthogonal

-5 Degree

HAND Cutting direction

L - Left

ID Technical product number

75002245

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$CN1204**2LB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

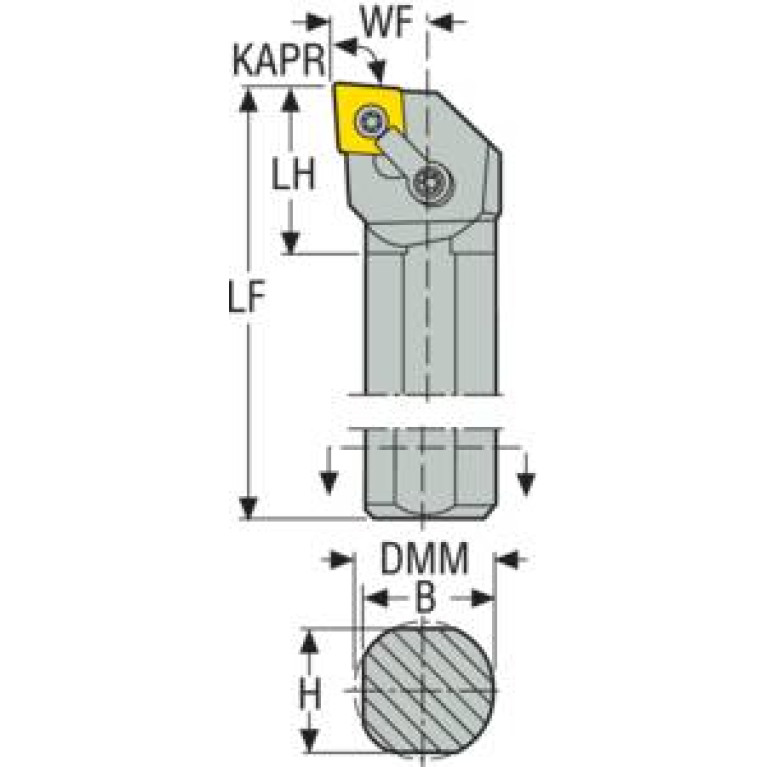

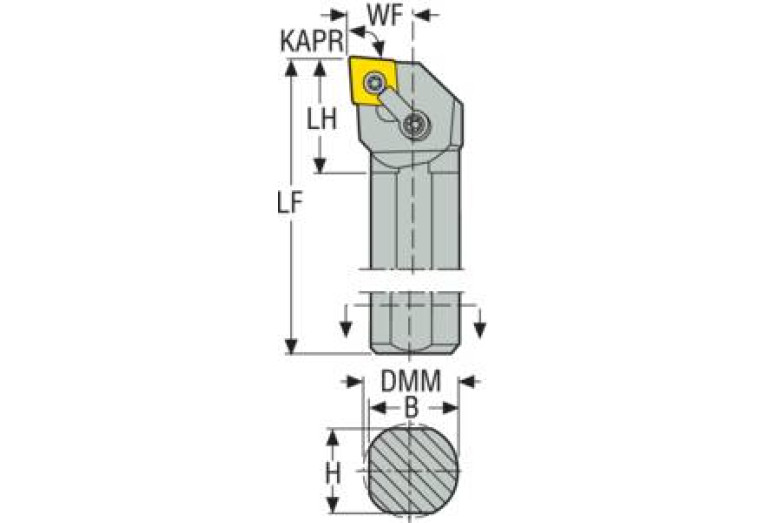

KAPR Tool cutting edge angle

95 Degree

LAMS Inclination angle

-14 Degree

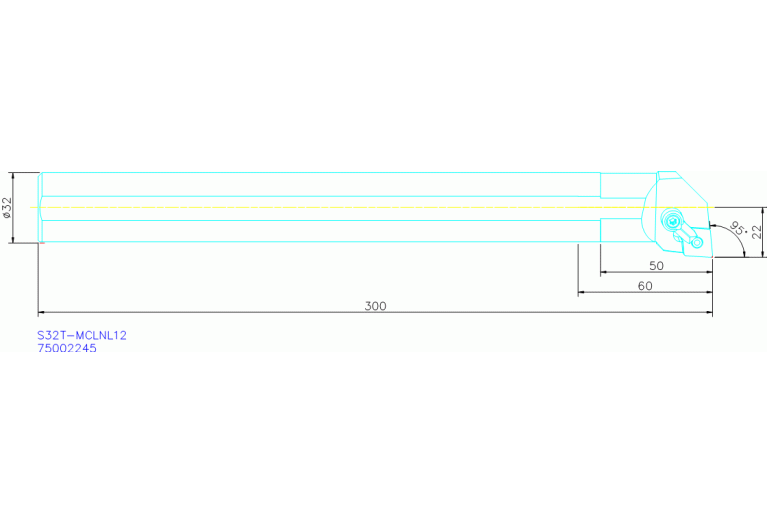

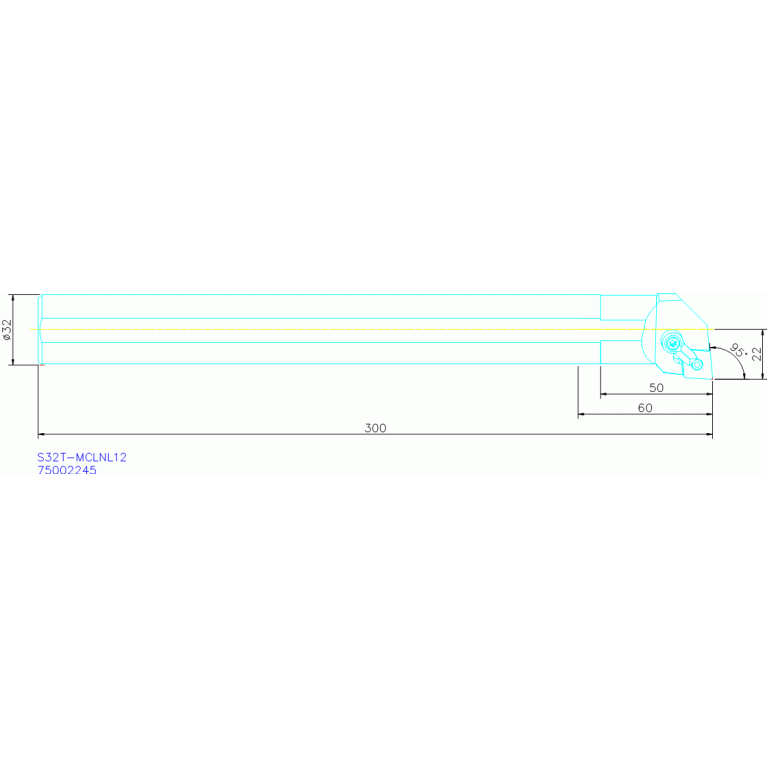

LF Functional length

300 mm

LH Head length

50 mm

LOC-03 B Shank width

31 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 H Shank height

30 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03202215

MIID Master insert identification

CNGA120404S-02020-L1-B

MTP Clamping type code

M - Top and hole clamping, with cylindrical bore

Name Identifying order number

S32T-MCLNL12

STDDES Standard designation

S32T-MCLNL12

THSC Tool holder shape code

A - offset shank design

WF Functional width

22 mm

Working process

No working processes available

WT Weight of item

1.79 kg
