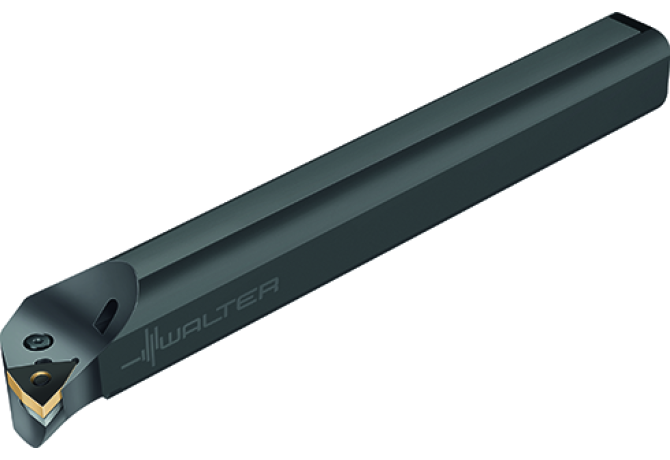

S20S-PWLNR06

S20S-PWLNR06 S20S-PWLNR06 S20S-PWLNR06

S20S-PWLNR06

Walter
Артикул: 5044307
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02002205
DMIN Minimum bore diameter
25 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Boring bar – Lever clamping A...-PWLN
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
5044307
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
ZYL22G2000$$$$
ISO CSW1
ISO$WN0604002******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
-15 Degree
LF Functional length
250 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 H Shank height
19 mm
LOC-03 ISO
ZYL22G2000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02002205
LPR Protruding length
40 mm
MIID Master insert identification
WNMG 332
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
S20S-PWLNR06
OAL Overall length
250 mm
WF Functional width
13 mm
Working process
No working processes available
WT Weight of item
0 kg
