Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning S16R-SSKCL09

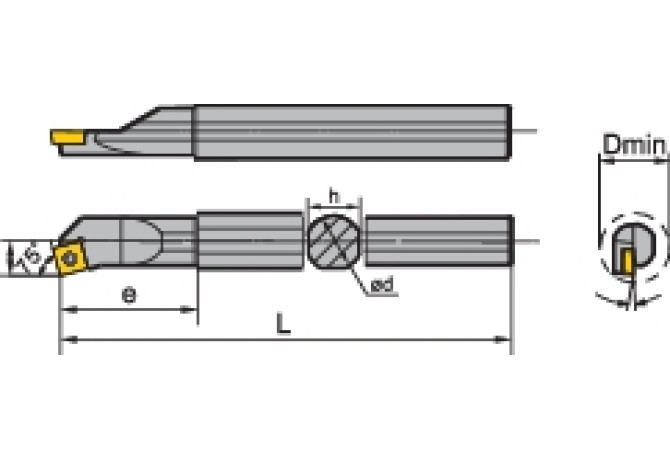

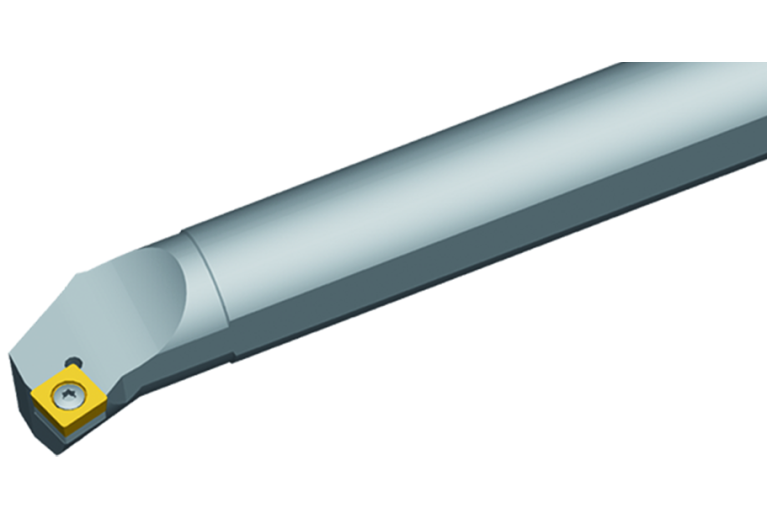

S16R-SSKCL09

S16R-SSKCL09

Артикул: S16R-SSKCL09

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

2

C1A Insert thickness Pos. A

3.97 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.2 mm

DCC Design configuration style code

S - Solid steel, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state

SF - Made to order

DIN

ZYL01602205

DIN CSW1

SC09T3123N

DMIN Minimum bore diameter

20 mm

EPSR Insert included angle

90 Degree

FamilyProducts

SC** steel boring bar

GAMF Rake angle radial

-11 Degree

HAND Cutting direction

L - Left

ID Identifying order number

S16R-SSKCL09

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

75 Degree

L Cutting edge length

9.525 mm

LF Functional length

200 mm

LH Head length

32.5 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 H Shank height

15 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01602205

MIID Master insert identification

SCMT09T302

MTP Clamping type code

S - Screwed across bore with, counter bore

STDDES Standard designation

S16R-SSKCL09

SX Shank cross section shape code

31 - (left) Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

11 mm

Working process

No working processes available
