Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning PWLNL2525M08JETL

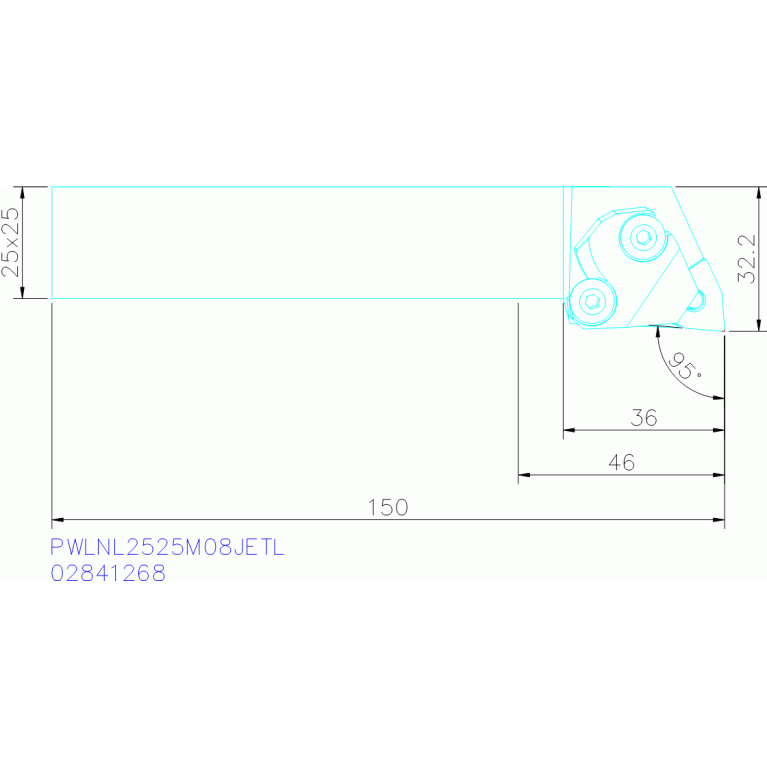

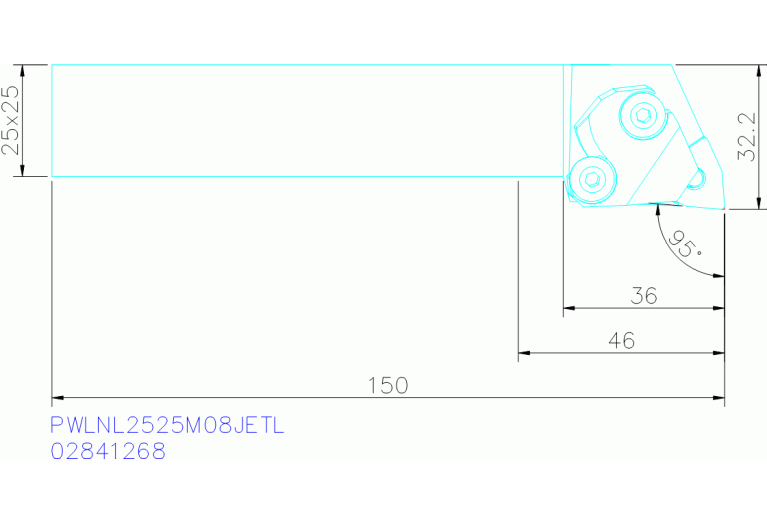

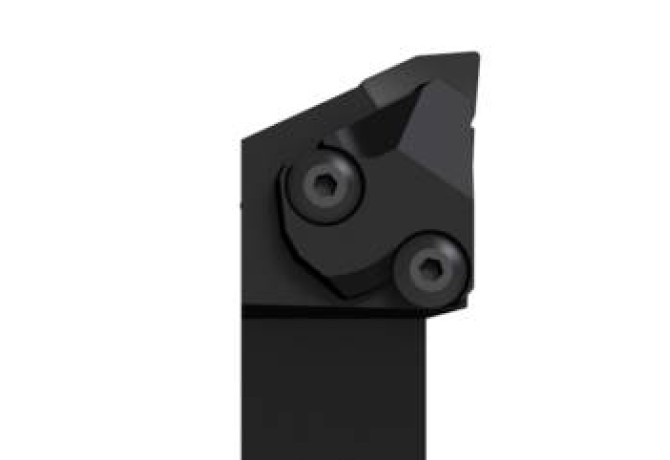

PWLNL2525M08JETL

PWLNL2525M08JETL PWLNL2525M08JETL PWLNL2525M08JETL PWLNL2525M08JETL

PWLNL2525M08JETL

Seco
Артикул: 02841268
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
7
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
VKT25250105
DMIN Minimum bore diameter
200 mm
EPSR Insert included angle
80 Degree
FamilyProducts
PWLNL2525M08JETL
GAMF Rake angle radial
-6 Degree
GAMO Rake angle orthogonal
-6 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
L - Left
HF Functional height
24.95 mm
ID Technical product number
02841268
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$WN0804**2LB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

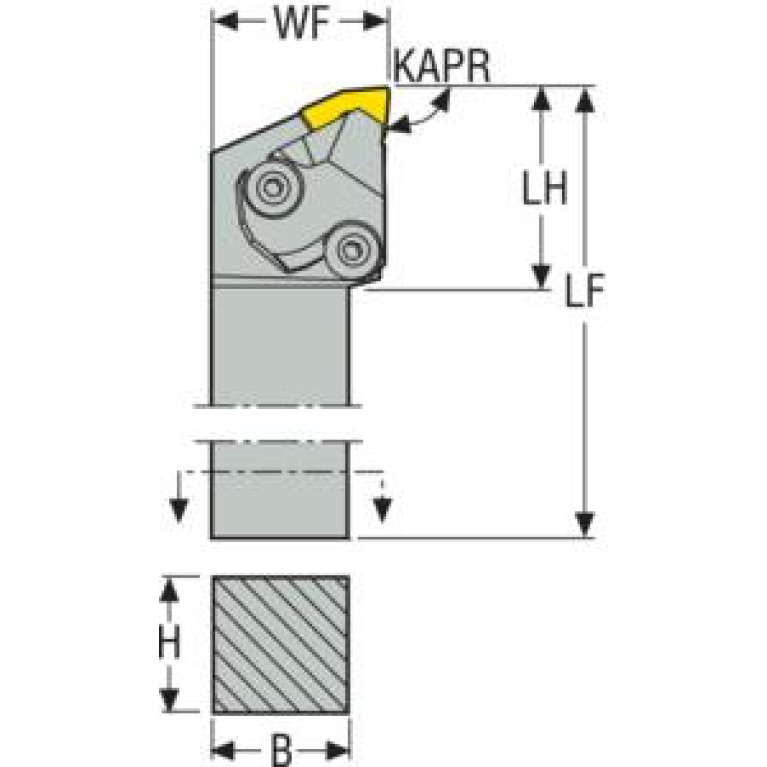

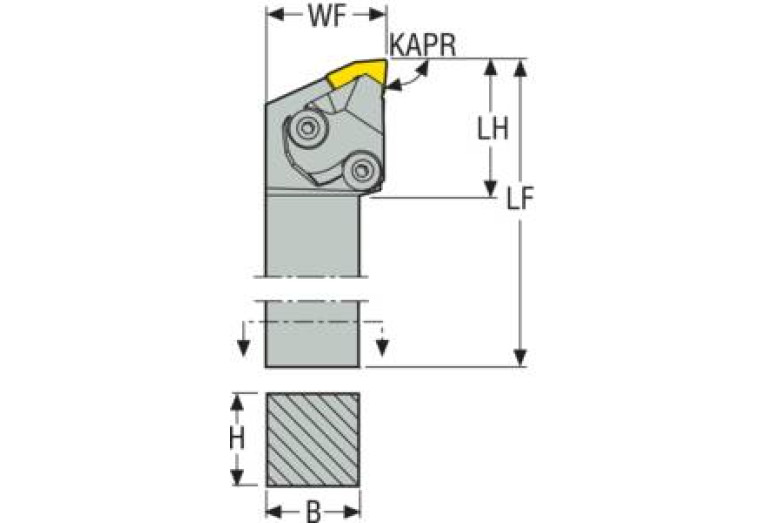

KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
-6 Degree
LF Functional length
150 mm
LH Head length
36 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2525
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
MIID Master insert identification
WNGA080408S-01020-L1-C
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
PWLNL2525M08JETL
STDDES Standard designation
PWLNL2525M08JETL
THSC Tool holder shape code
A - offset shank design
WF Functional width
32.2 mm
Working process
No working processes available
WT Weight of item
0.74 kg
