Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning PRGCR-24-25E

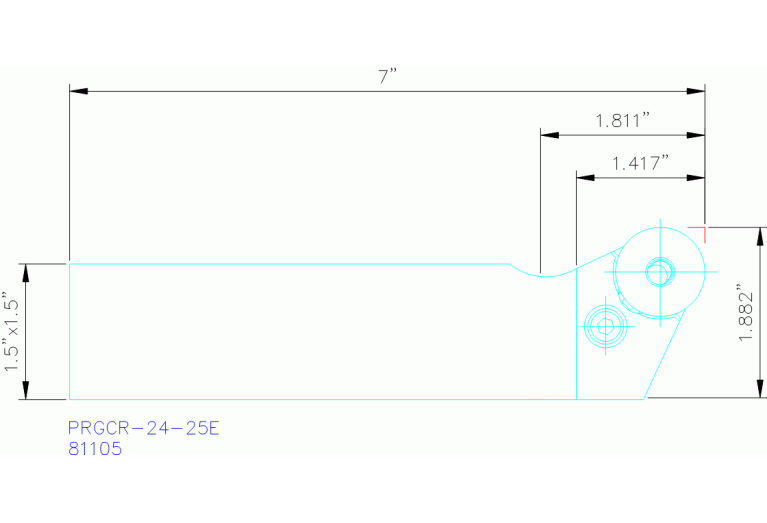

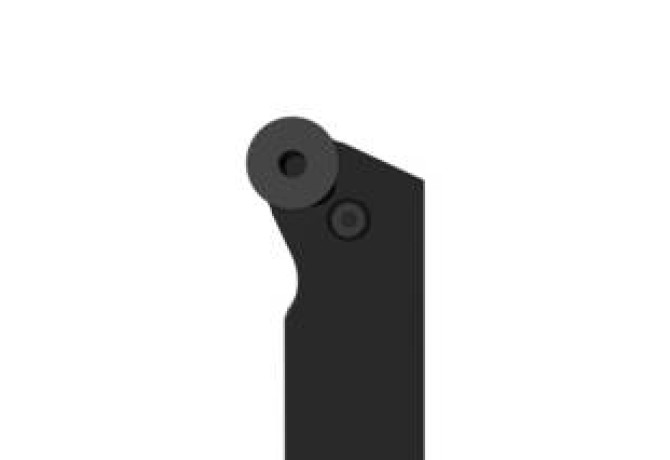

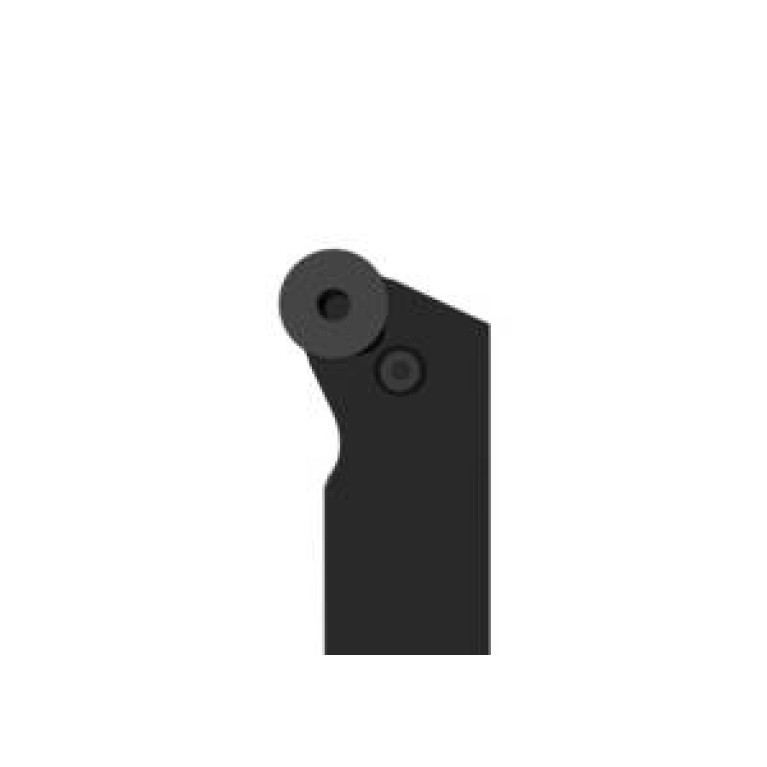

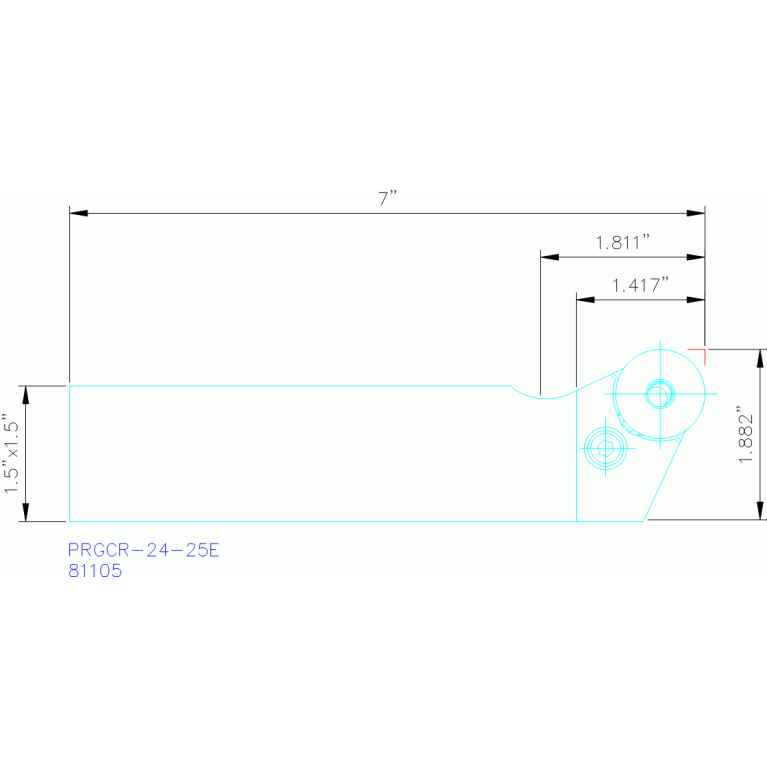

PRGCR-24-25E

PRGCR-24-25E

Seco

Артикул: 02885926

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

25 mm

BLDA Tool style code Position A

10

C1A Insert thickness Pos. A

7.94 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

VKT24240125

DMIN Minimum bore diameter

900 mm

FamilyProducts

PRGCR-24-25E

GAMF Rake angle radial

0 Degree

GAMO Rake angle orthogonal

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

HF Functional height

38.1 mm

ID Technical product number

02885926

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$RC2507**2RB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

0 Degree

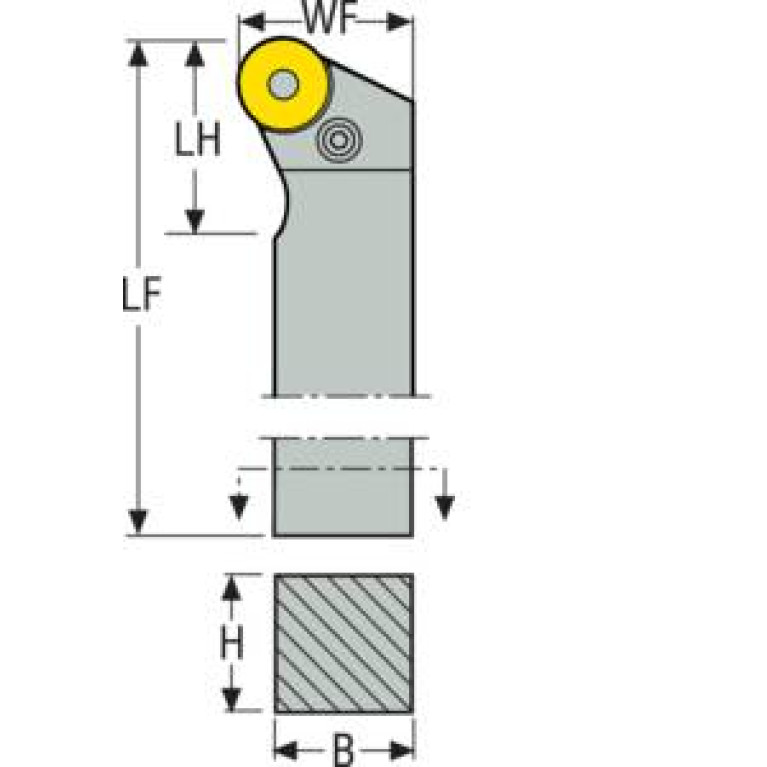

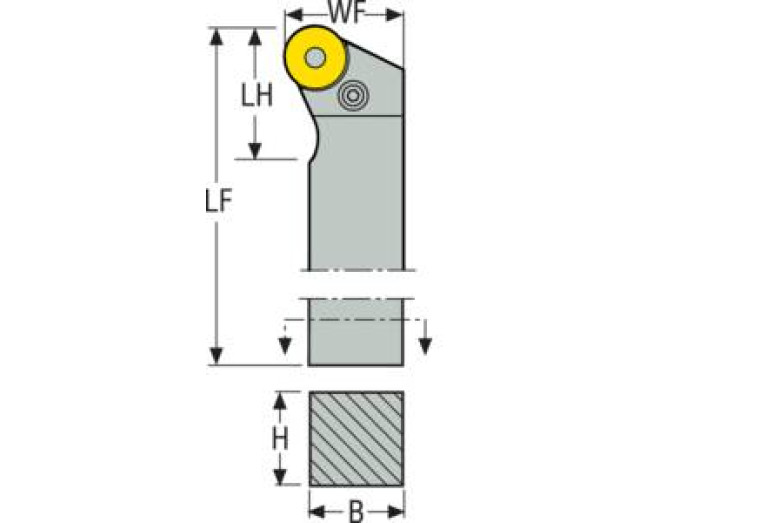

LF Functional length

177.8 mm

LH Head length

35 mm

LOC-03 B Shank width

38.1 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

2424

LOC-03 H Shank height

38.1 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT24240125

MIID Master insert identification

RCMX250700

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

PRGCR-24-25E

STDDES Standard designation

PRGCR-24-25E

THSC Tool holder shape code

A - offset shank design

WF Functional width

48.26 mm

Working process

No working processes available

WT Weight of item

2 kg
