Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning MTGNL-24-5D

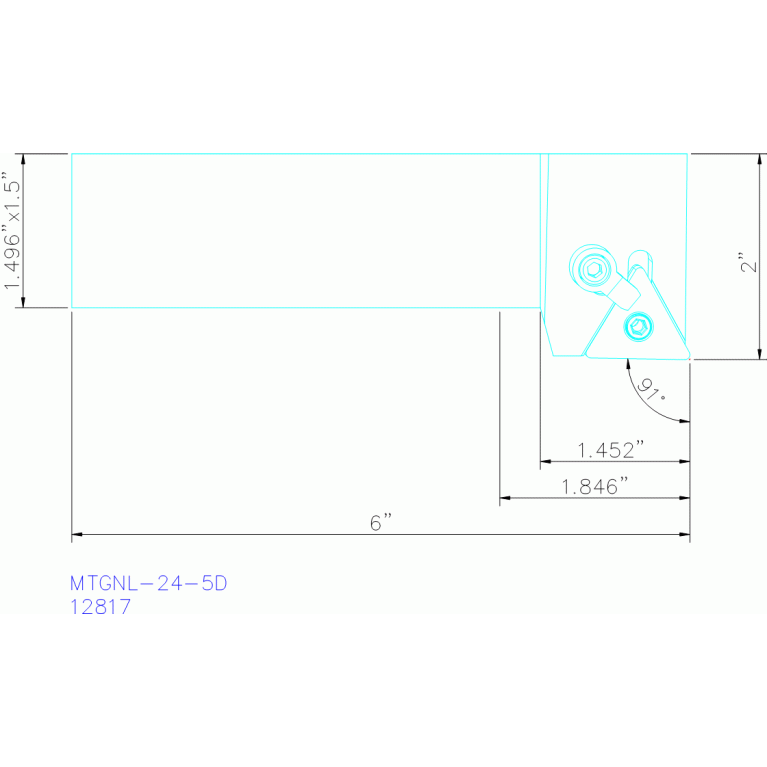

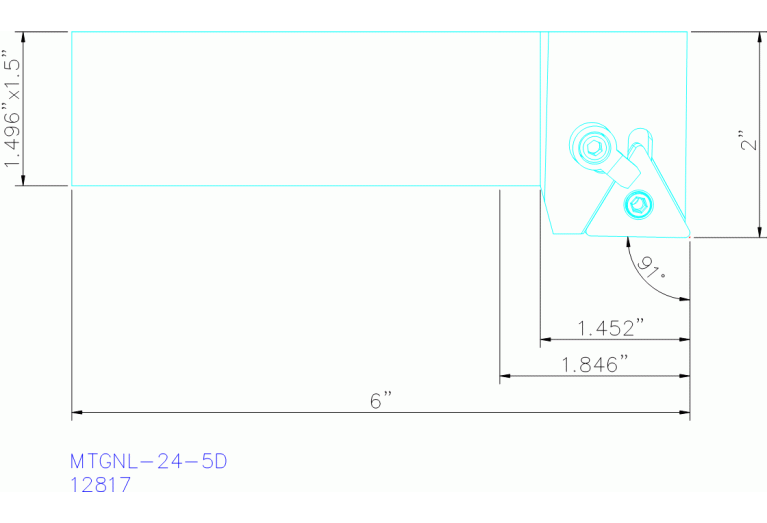

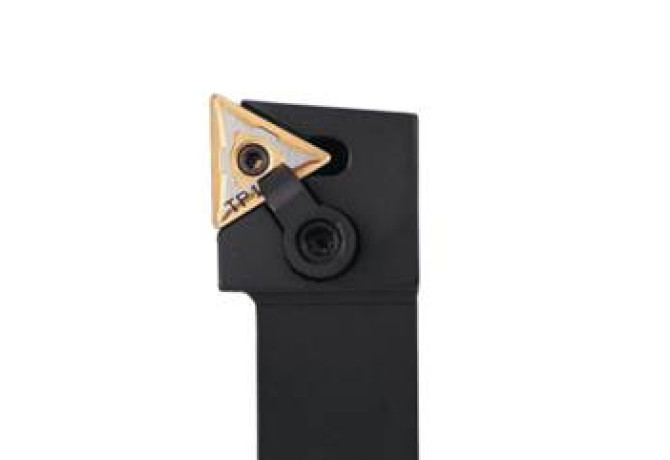

MTGNL-24-5D

MTGNL-24-5D MTGNL-24-5D MTGNL-24-5D MTGNL-24-5D

MTGNL-24-5D

Seco
Артикул: 00012817
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
VKT24240125
EPSR Insert included angle
60 Degree
FamilyProducts
MTGNL-24-5D
GAMF Rake angle radial
-5 Degree
GAMO Rake angle orthogonal
-5 Degree
GAMP Rake angle axial
-5 Degree
HAND Cutting direction
L - Left
HF Functional height
38.1 mm
ID Technical product number
00012817
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$TN2706**2LB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

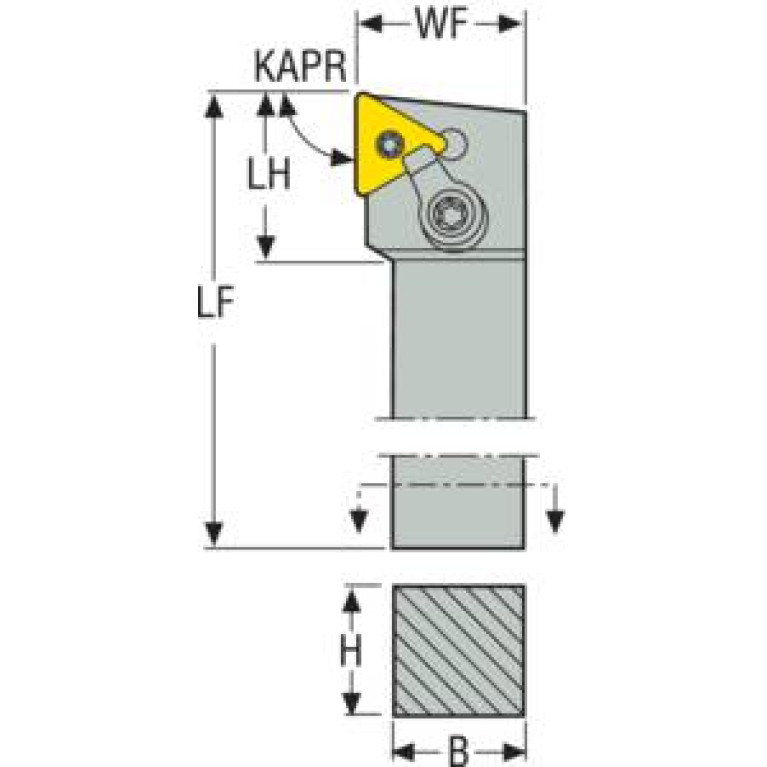

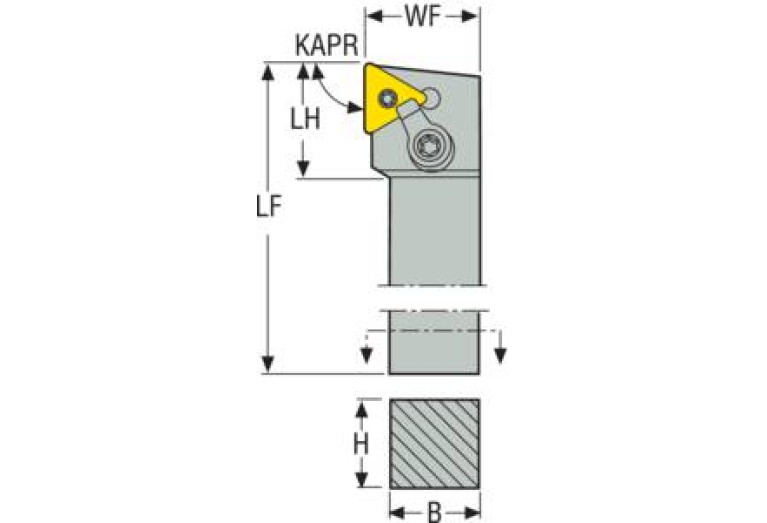

KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
-5 Degree
LF Functional length
152.4 mm
LH Head length
115.31 mm
LOC-03 B Shank width
38.1 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
2424
LOC-03 H Shank height
38 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT24240125
MIID Master insert identification
TN2706
MTP Clamping type code
M - Top and hole clamping, with cylindrical bore
Name Identifying order number
MTGNL-24-5D
STDDES Standard designation
MTGNL-24-5D
THSC Tool holder shape code
A - offset shank design
WF Functional width
50.8 mm
Working process
No working processes available
WT Weight of item
1.98 kg
