Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning MTENNS-8-2

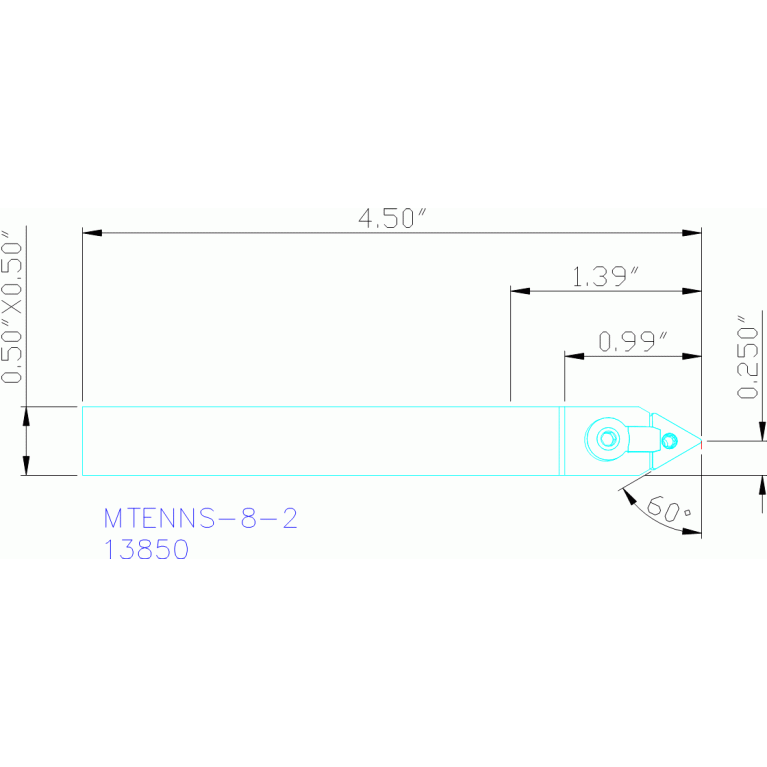

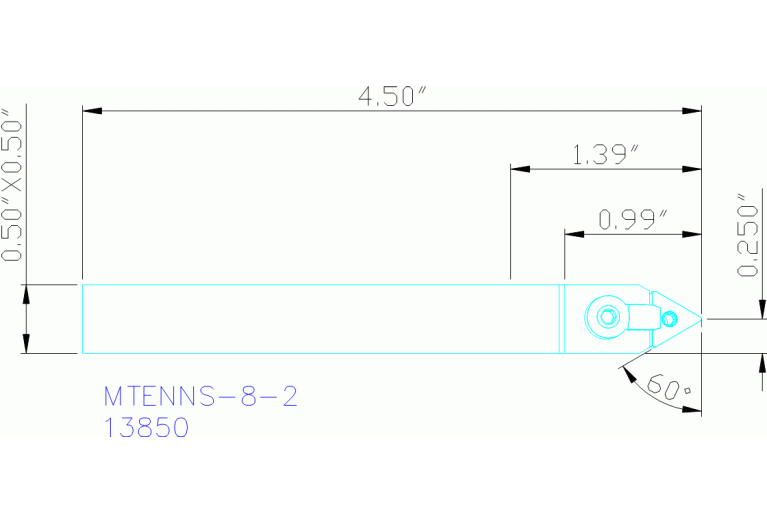

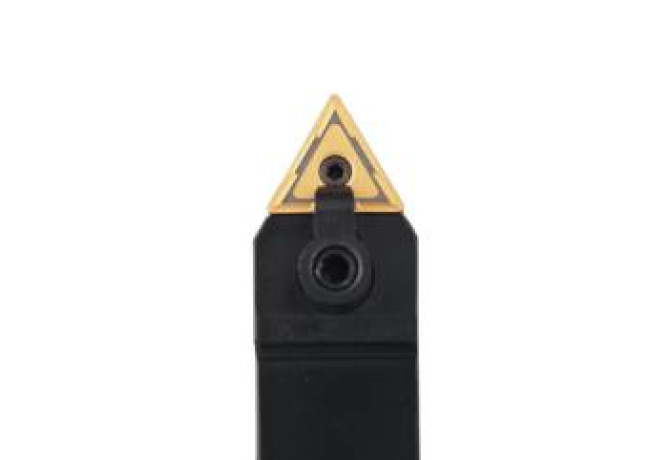

MTENNS-8-2

MTENNS-8-2 MTENNS-8-2 MTENNS-8-2 MTENNS-8-2

MTENNS-8-2

Seco
Артикул: 00013850
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
VKT08080125
DIN CSW1
SO-TN2-1103N
EPSR Insert included angle
60 Degree
FamilyProducts
MTENNS-8-2
GAMO Rake angle orthogonal
0 Degree
GAMP Rake angle axial
-10 Degree
HAND Cutting direction
N - Neutral
ID Technical product number
00013850
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

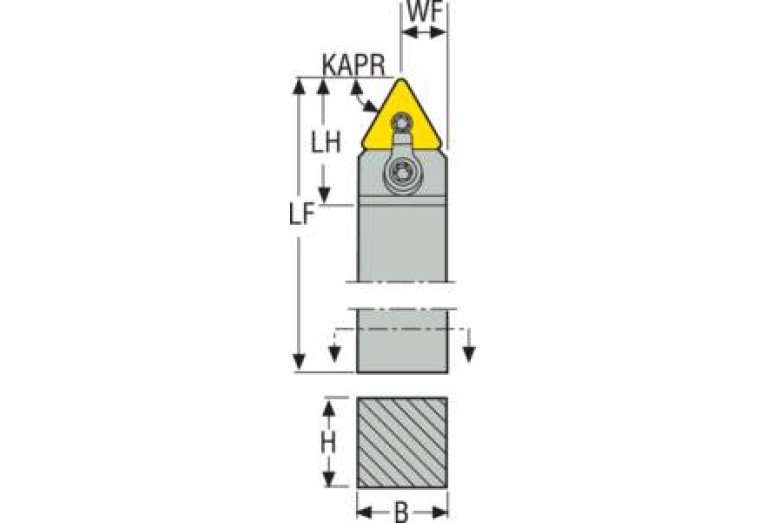

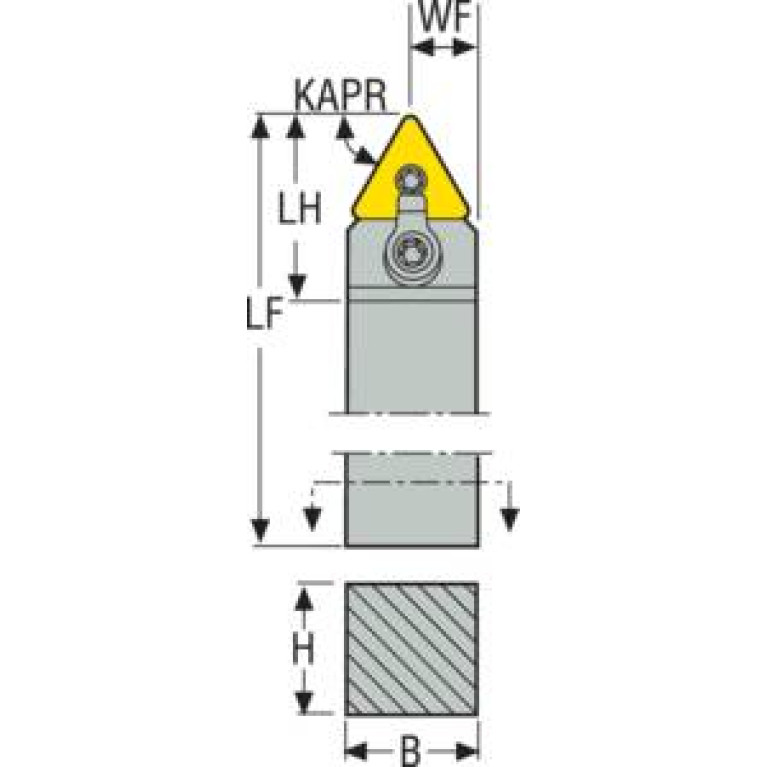

KAPR Tool cutting edge angle
60 Degree
LAMS Inclination angle
-10 Degree
LF Functional length
114.3 mm
LH Head length
25.15 mm
LOC-03 B Shank width
12.7 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0808
LOC-03 H Shank height
12.7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT08080125
MIID Master insert identification
TN1103
MTP Clamping type code
M - Top and hole clamping, with cylindrical bore
Name Identifying order number
MTENNS-8-2
STDDES Standard designation
MTENNS-8-2
WF Functional width
6.35 mm
Working process
No working processes available
WT Weight of item
0.148 kg
