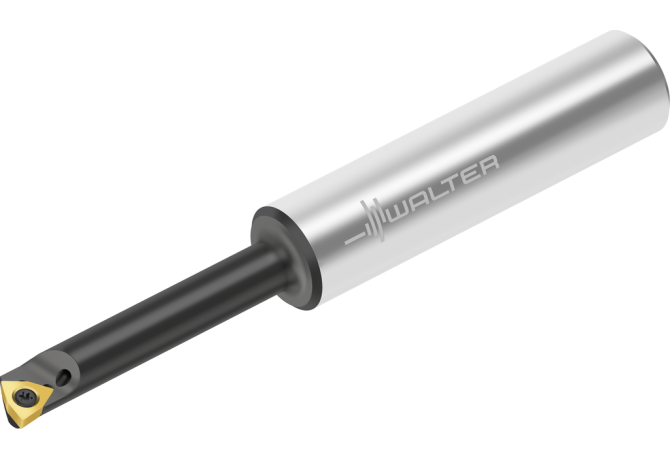

Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning EB556.CS

EB556.CS

Артикул: 7649558

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL01600115

DIN CSW1

TC1102043N

DMIN Minimum bore diameter

13.8 mm

EPSR Insert included angle

60 Degree

FamilyProducts

Solid carbide single-piece boring bar for precision boring EB100

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

7649558

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

ZYL01G1600$$$$

ISO CSW1

ISO$TC1102003****04

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

11 mm

LAMS Inclination angle

0 Degree

LF Functional length

137 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 ISO

ZYL01G1600$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600115

LPR Protruding length

137 mm

MIID Master insert identification

TCMT 11 02 04

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

EB556.CS

OAL Overall length

137 mm

WF Functional width

6.9 mm

Working process

BAB - Open by boring

WT Weight of item

0.282 kg
