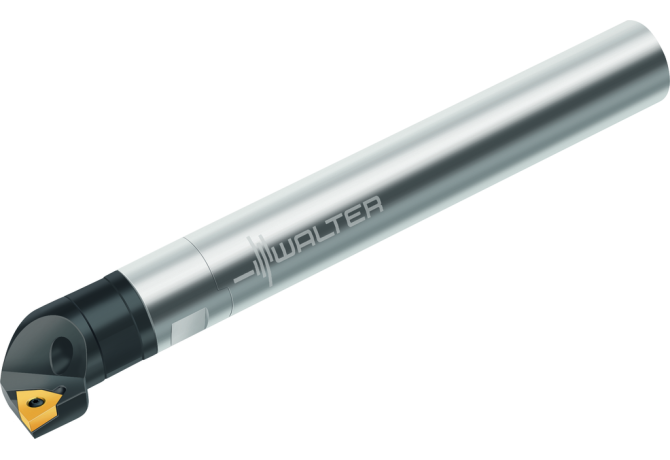

Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning EB377.WC04

EB377.WC04

Артикул: 5008272

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL01600105

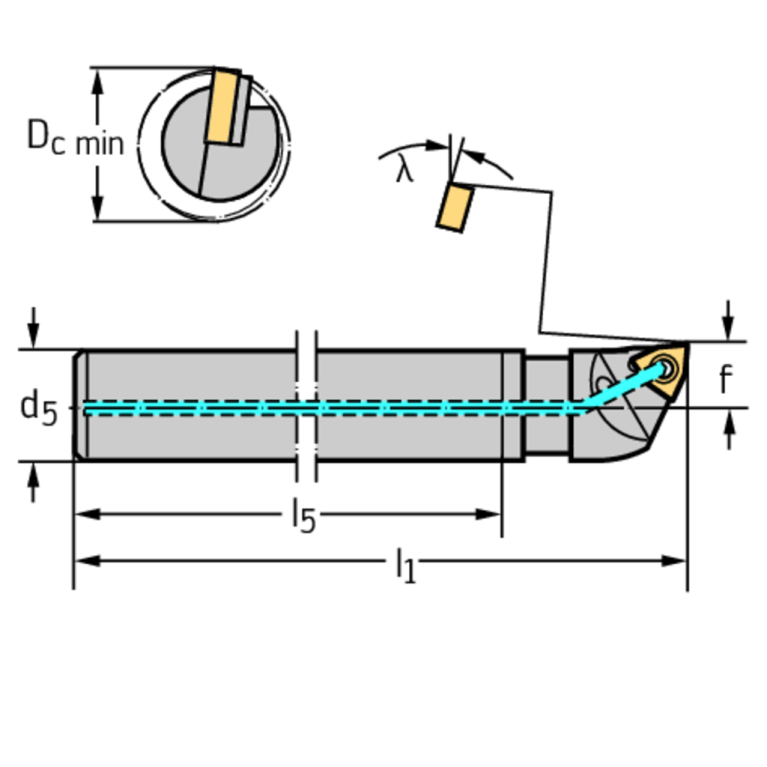

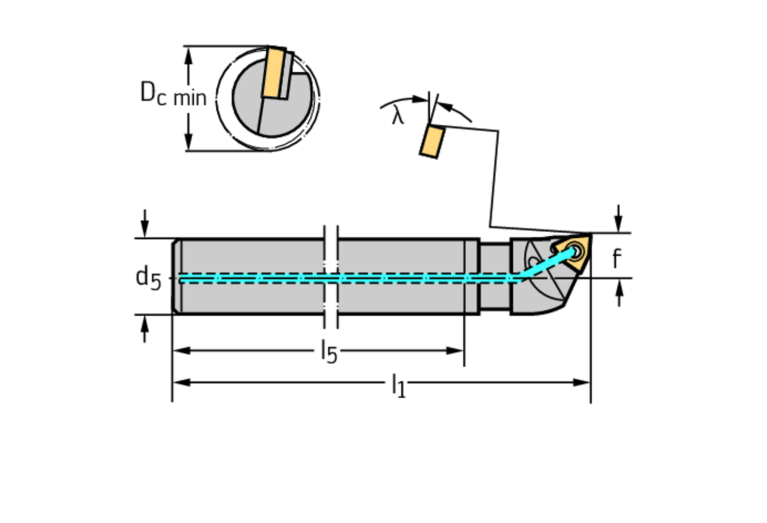

DMIN Minimum bore diameter

39.8 mm

EPSR Insert included angle

80 Degree

FamilyProducts

Boring bar for precision boring with insert holder EB100

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

5008272

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISO

ZYL01G1600$$$$

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

4.3 mm

LAMS Inclination angle

0 Degree

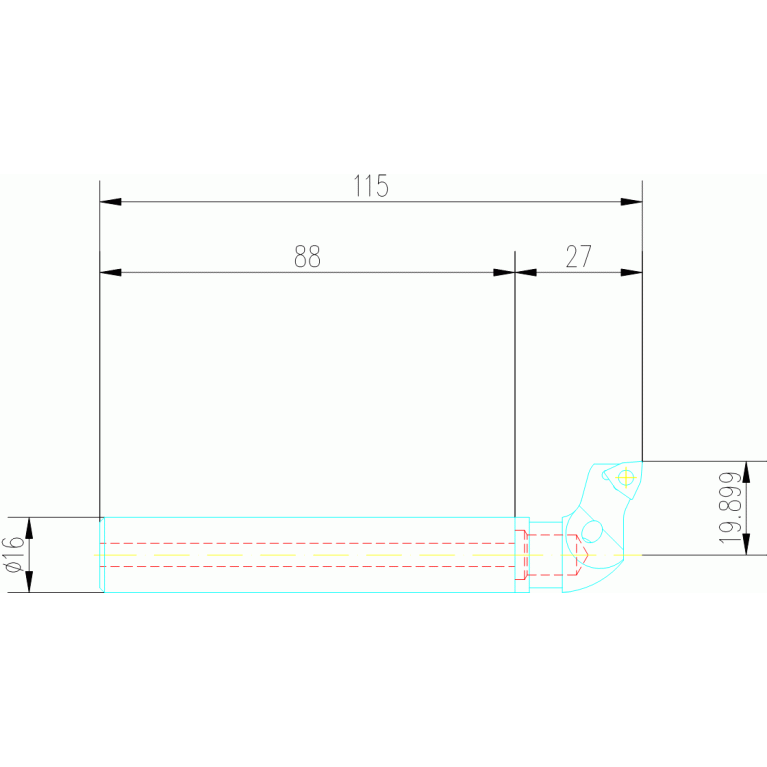

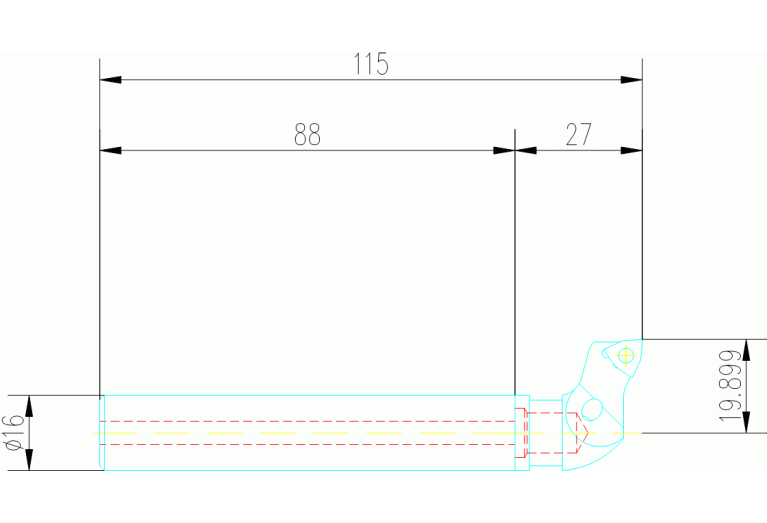

LF Functional length

115 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 ISO

ZYL01G1600$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

LPR Protruding length

27 mm

MIID Master insert identification

WCGW 04 02 04

Name Identifying order number

EB377.WC04

OAL Overall length

115 mm

WF Functional width

19.9 mm

Working process

BAB - Open by boring

WT Weight of item

0.2 kg
