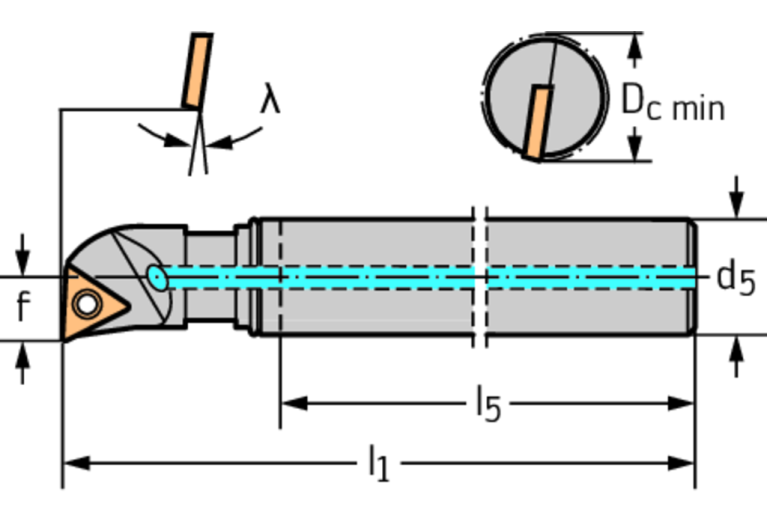

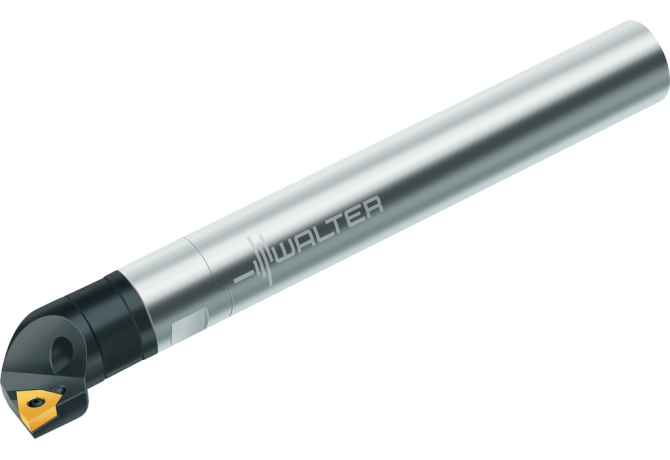

Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning EB354.TC06.CS

EB354.TC06.CS

Артикул: 7673654

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00800105

DIN CSW1

TC06T1043N

DMIN Minimum bore diameter

8.8 mm

EPSR Insert included angle

60 Degree

FamilyProducts

Solid carbide boring bar for precision boring with insert holder EB100

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

7673654

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

ZYL01F8000$$$$

ISO CSW1

ISO$TC06T1003****04

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

6.9 mm

LAMS Inclination angle

0 Degree

LF Functional length

105 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 ISO

ZYL01F8000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LPR Protruding length

18 mm

MIID Master insert identification

TCMT 06 T1 00 RE=0

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

EB354.TC06.CS

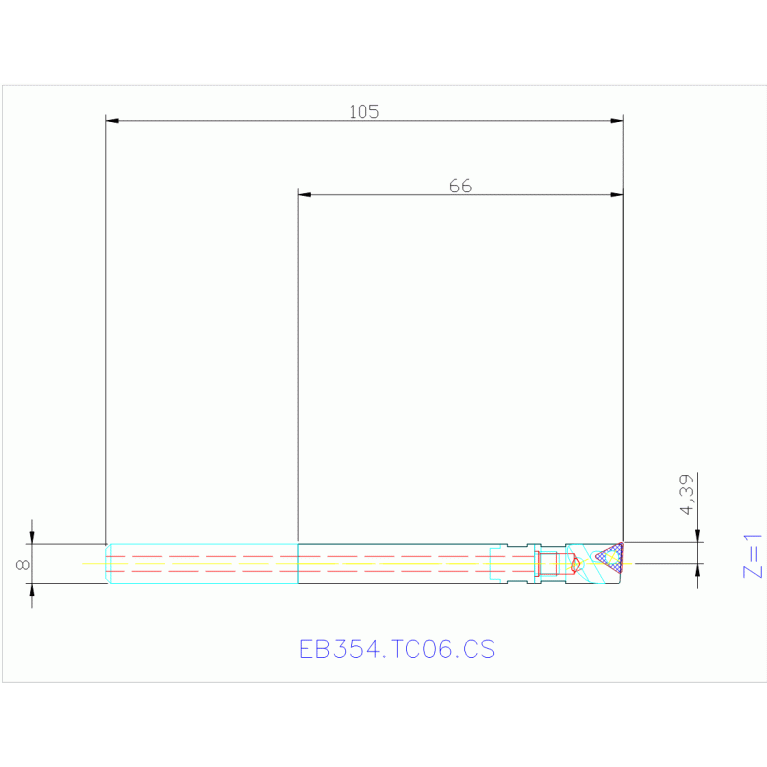

OAL Overall length

105 mm

WF Functional width

4.5 mm

Working process

BAB - Open by boring

WT Weight of item

0.092 kg
