Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning DSRNL855D

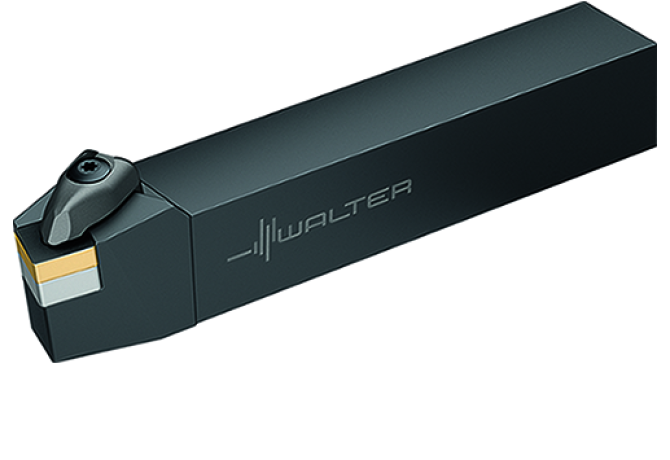

DSRNL855D

DSRNL855D DSRNL855D DSRNL855D

DSRNL855D

Walter
Артикул: 5097574
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT20160125
EPSR Insert included angle
90 Degree
FamilyProducts
Shank tool – Rigid clamping DSRN
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
L - Left
HF Functional height
31.75 mm
ID Technical product number
5097574
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
VKT01B2016$$$$
ISO CSW1
ISO$SN1506002******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

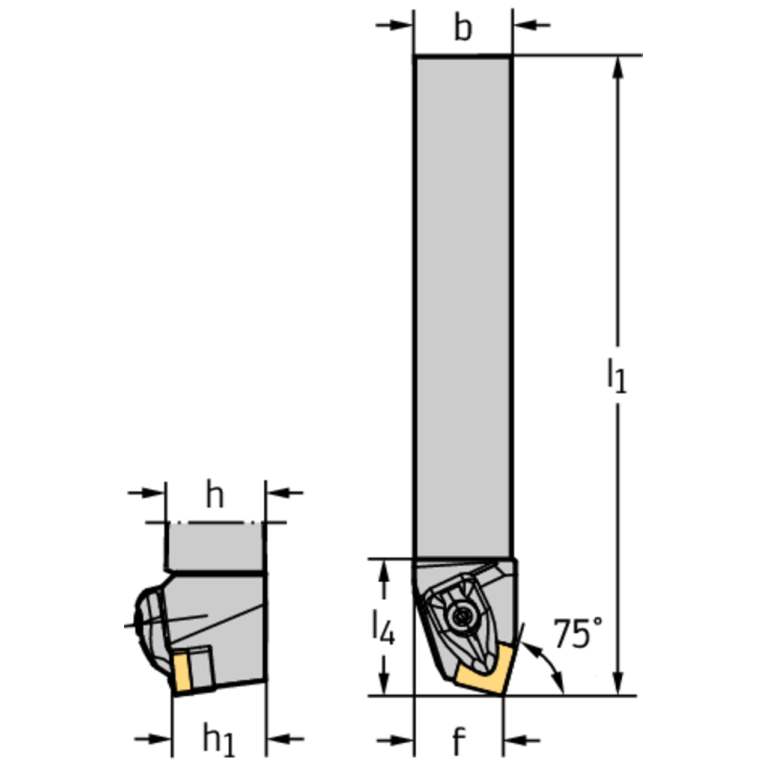

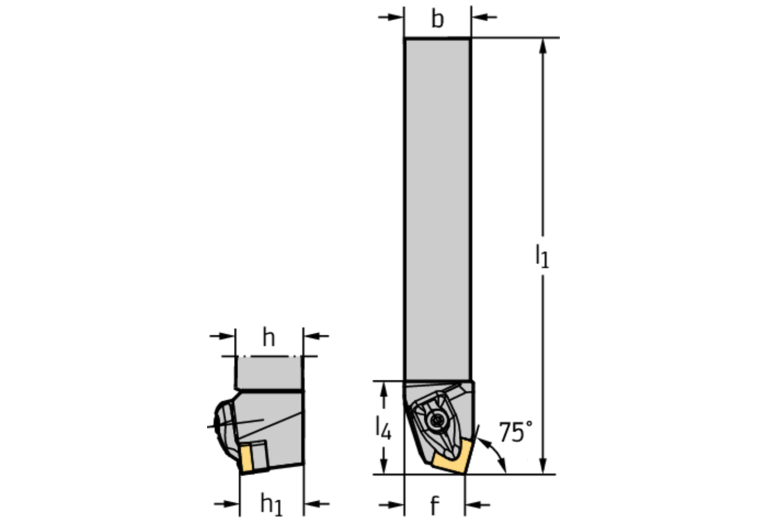

KAPR Tool cutting edge angle
75 Degree
LAMS Inclination angle
-6 Degree
LF Functional length
152.4 mm
LOC-03 B Shank width
25.4 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
2016
LOC-03 H Shank height
31.75 mm
LOC-03 ISO
VKT01B2016$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20160125
LPR Protruding length
41.656 mm
MIID Master insert identification
SNMG 543
MTP Clamping type code
D
Name Identifying order number
DSRNL855D
OAL Overall length
152.4 mm
WF Functional width
26.594 mm
Working process
No working processes available
WT Weight of item
0.72 kg
