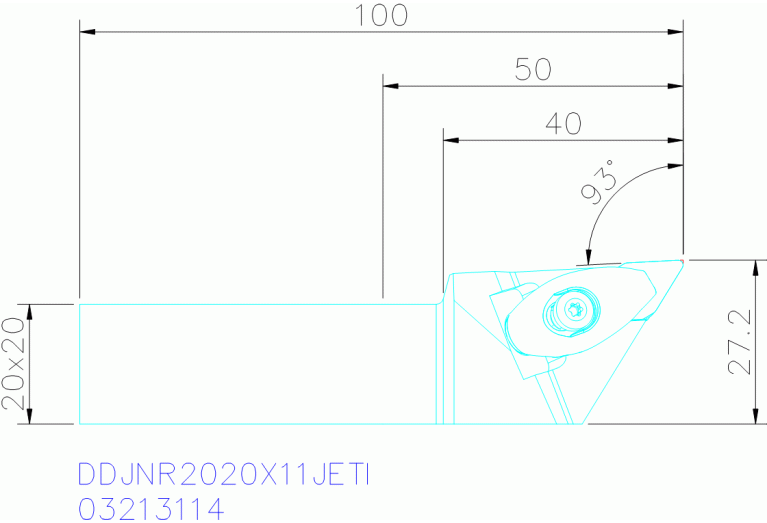

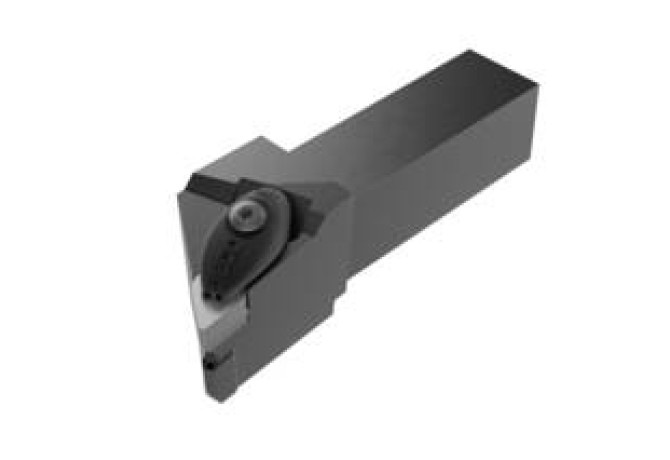

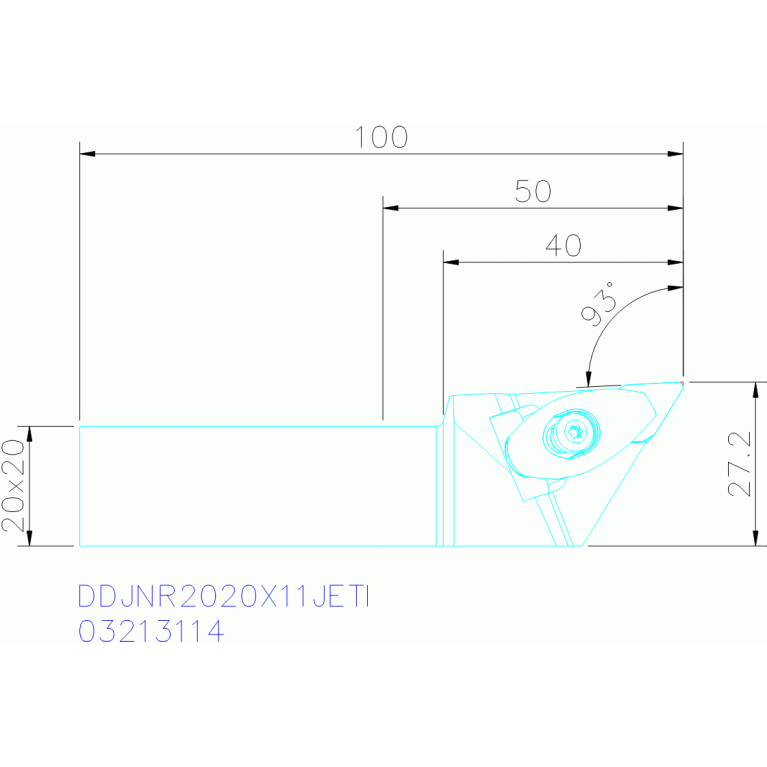

Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning DDJNR2020X11JETI

DDJNR2020X11JETI

DDJNR2020X11JETI DDJNR2020X11JETI DDJNR2020X11JETI DDJNR2020X11JETI

DDJNR2020X11JETI

Seco
Артикул: 03213114
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
9.52 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
DCP Data chip provision
0 - Without data chip
DIN
VKT20200105
DMIN Minimum bore diameter
235 mm
FamilyProducts
DDJNR2020X11JETI
GAMF Rake angle radial
-6.34 Degree
GAMO Rake angle orthogonal
-6 Degree
GAMP Rake angle axial
-5.68 Degree
HAND Cutting direction
R - Right
HF Functional height
20 mm
ID Technical product number
03213114
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
SSQ02G2020$$$$
ISO CSW1
ISO$DN1104**2RB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

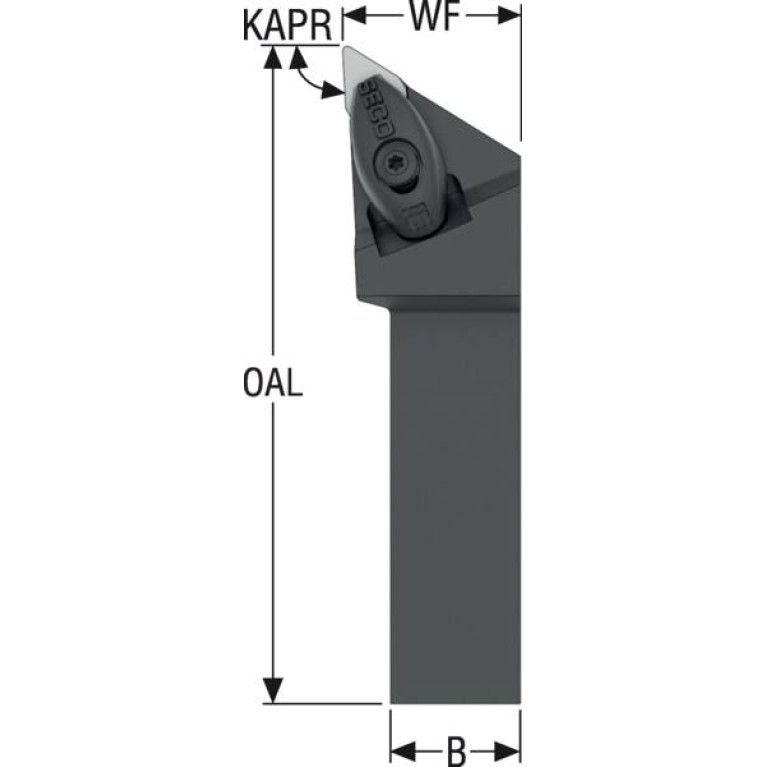

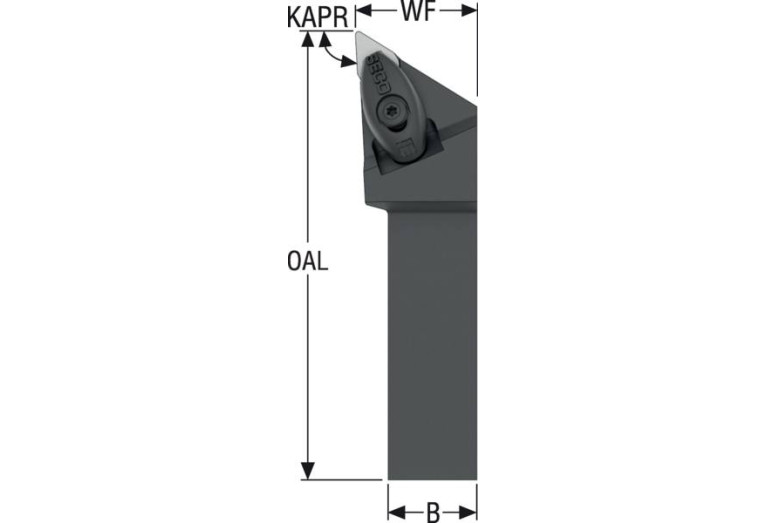

KAPR Tool cutting edge angle
93 Degree
LAMS Inclination angle
-6 Degree
LF Functional length
36 mm
LH Head length
40 mm
LOC-03 B Shank width
20 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2020
LOC-03 H Shank height
20 mm
LOC-03 ISO
SSQ02G2020$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200105
MIID Master insert identification
DNMA110408S
MTP Clamping type code
D
Name Identifying order number
DDJNR2020X11JETI
OAL Overall length
100 mm
STDDES Standard designation
DDJNR2020X11JETI
THSC Tool holder shape code
A - offset shank design
WF Functional width
27.2 mm
Working process
No working processes available
WT Weight of item
0.26 kg
