Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning C05M-SWLCR-2

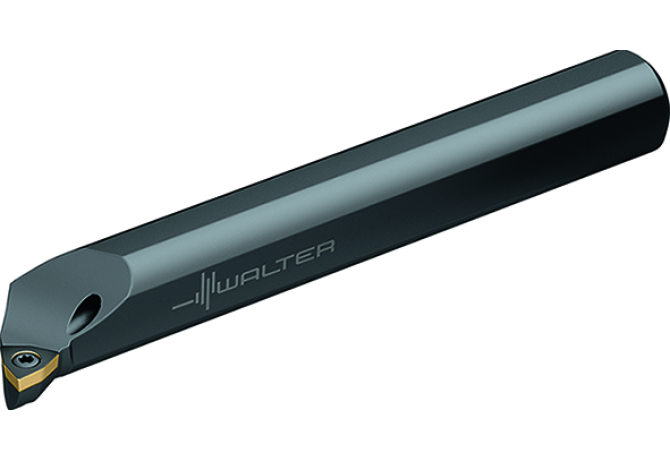

C05M-SWLCR-2

C05M-SWLCR-2 C05M-SWLCR-2 C05M-SWLCR-2

C05M-SWLCR-2

Walter
Артикул: 5028630
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL31252225

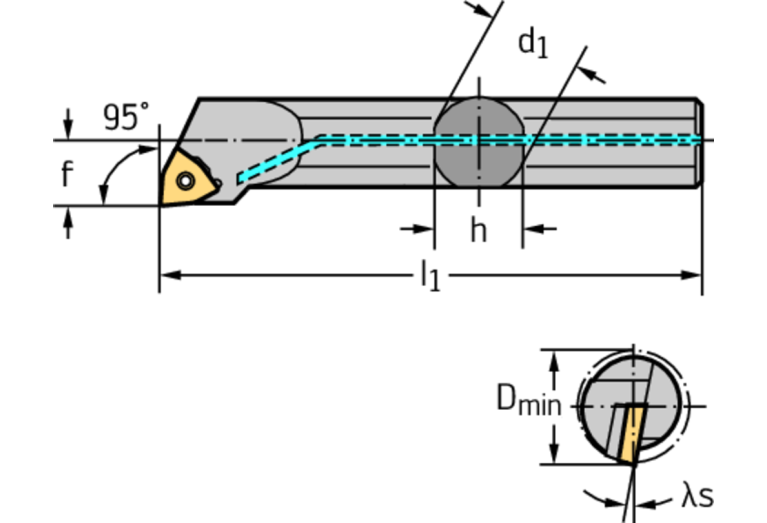

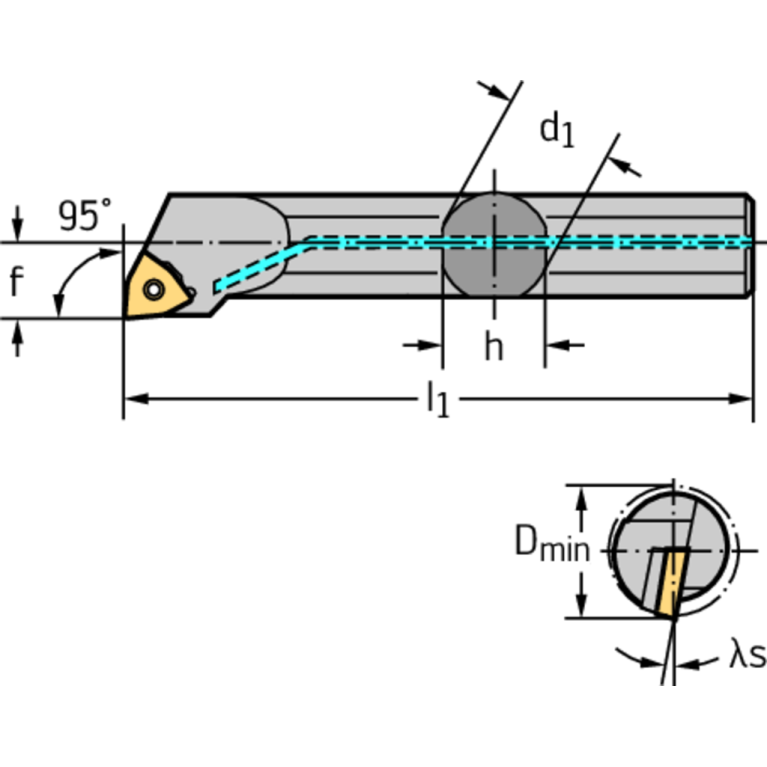

DMIN Minimum bore diameter
10.998 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Boring bar – Screw clamping A...-SWLC
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
5028630
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
ZYL22R3125$$$$
ISO CSW1
ISO$WC0402003******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
-15 Degree
LF Functional length
152.4 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
3125
LOC-03 DCONMS Diameter
7.938 mm
LOC-03 H Shank height
8 mm
LOC-03 ISO
ZYL22R3125$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL31252225
LPR Protruding length
15.24 mm
MIID Master insert identification
WCGW 2(1.5)1
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
C05M-SWLCR-2
OAL Overall length
152.4 mm
WF Functional width
5.994 mm
Working process
No working processes available
WT Weight of item
0 kg
