Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning A25T-SDJCR11

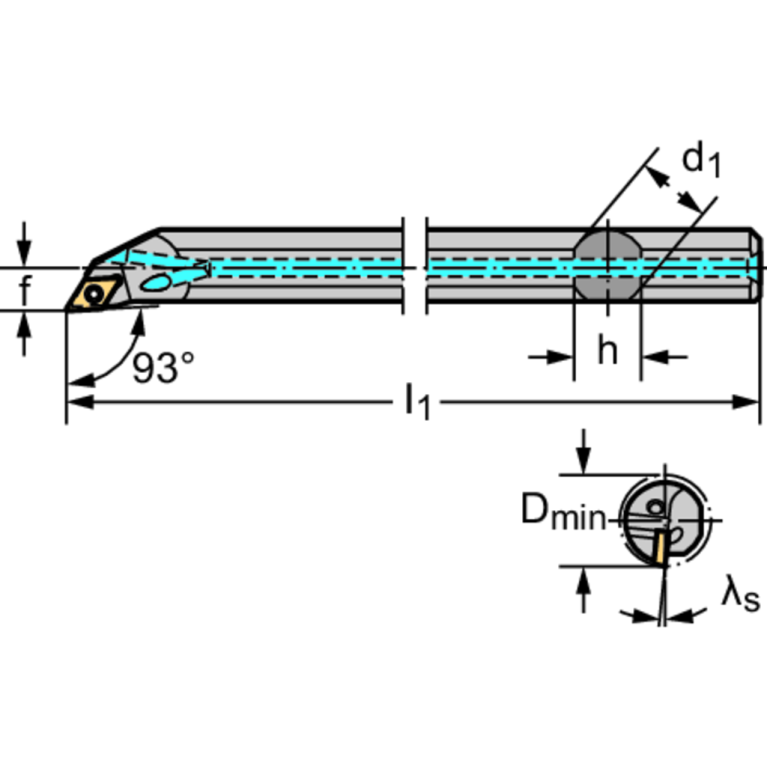

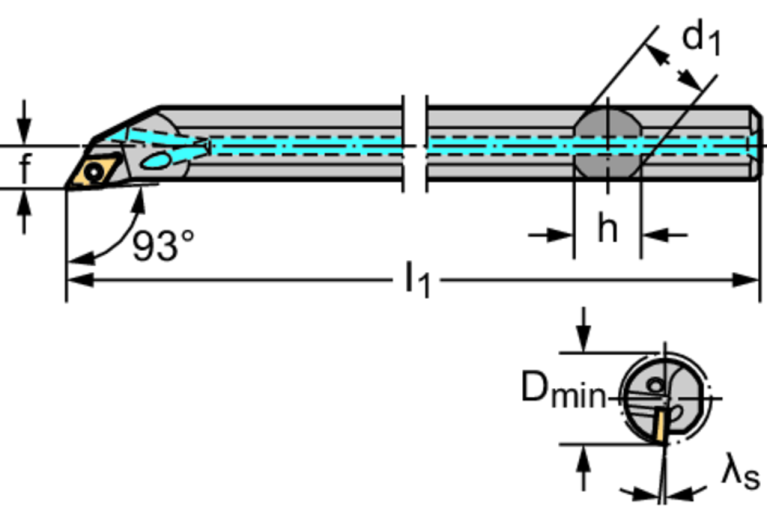

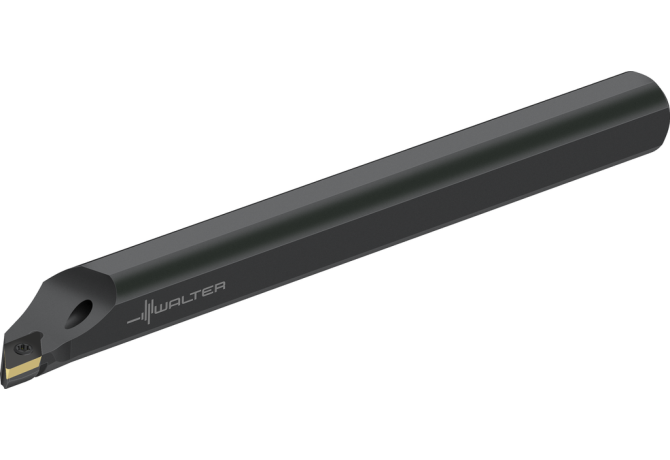

A25T-SDJCR11

A25T-SDJCR11

Walter

Артикул: 7807972

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

3

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL02502215

DIN CSW1

DC11T3993N

DMIN Minimum bore diameter

32 mm

EPSR Insert included angle

55 Degree

FamilyProducts

Boring bar – Screw clamping A...-SDJC

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

7807972

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

1

ISO

ZYL22G2500$$$$

ISO CSW1

ISO$DC11T3003******

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

11.6 mm

LAMS Inclination angle

-4 Degree

LF Functional length

300 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 H Shank height

23 mm

LOC-03 ISO

ZYL22G2500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02502215

LPR Protruding length

300 mm

MIID Master insert identification

DCMT 11 T3 08

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A25T-SDJCR11

OAL Overall length

300 mm

THSC Tool holder shape code

G - straight shank design

WF Functional width

14 mm

Working process

DDI - Internal turning,DFI - Internal form turning

WT Weight of item

0.87 kg
