Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning A10R-SCLPR2

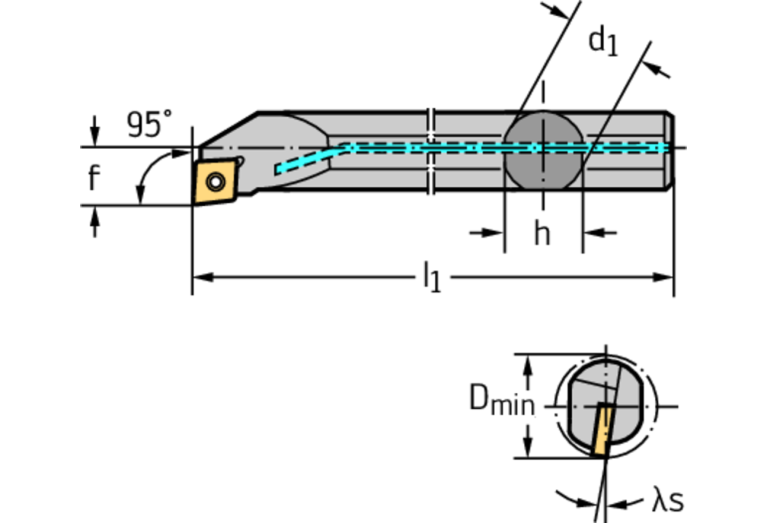

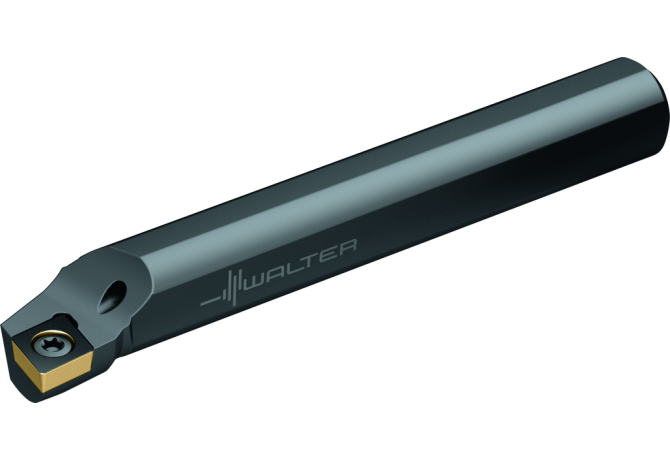

A10R-SCLPR2

A10R-SCLPR2 A10R-SCLPR2 A10R-SCLPR2

A10R-SCLPR2

Walter
Артикул: 7394712
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL06252235
DIN CSW1
CP0602993N
DMIN Minimum bore diameter
19.6 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Boring bar – Screw clamping A...-SCLP
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
7394712
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
ZYL22R6250$$$$
ISO CSW1
ISO$CP0602003******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
6.4 mm
LAMS Inclination angle
5 Degree
LF Functional length
203.2 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
0625
LOC-03 DCONMS Diameter
15.875 mm
LOC-03 H Shank height
14.28 mm
LOC-03 ISO
ZYL22R6250$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL06252235
LPR Protruding length
203.2 mm
MIID Master insert identification
CPMT 2(1.5)1
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
A10R-SCLPR2
OAL Overall length
203.2 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
10.312 mm
Working process
DDI - Internal turning
WT Weight of item
0.279 kg
