Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning 261133 16/11

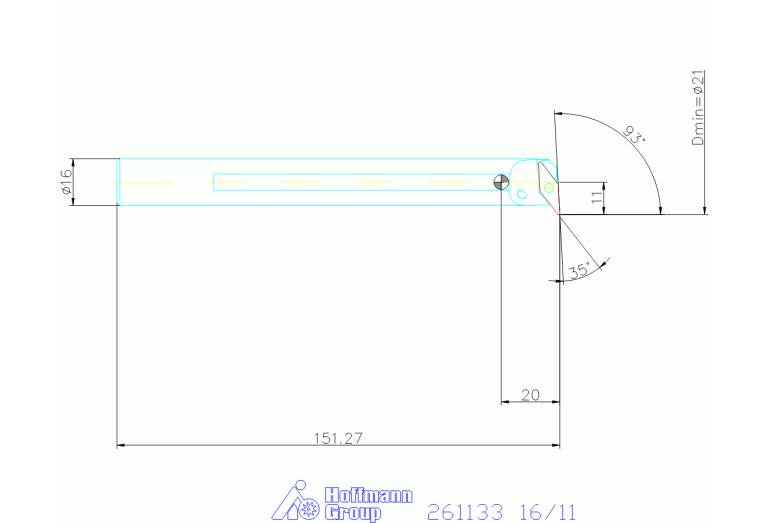

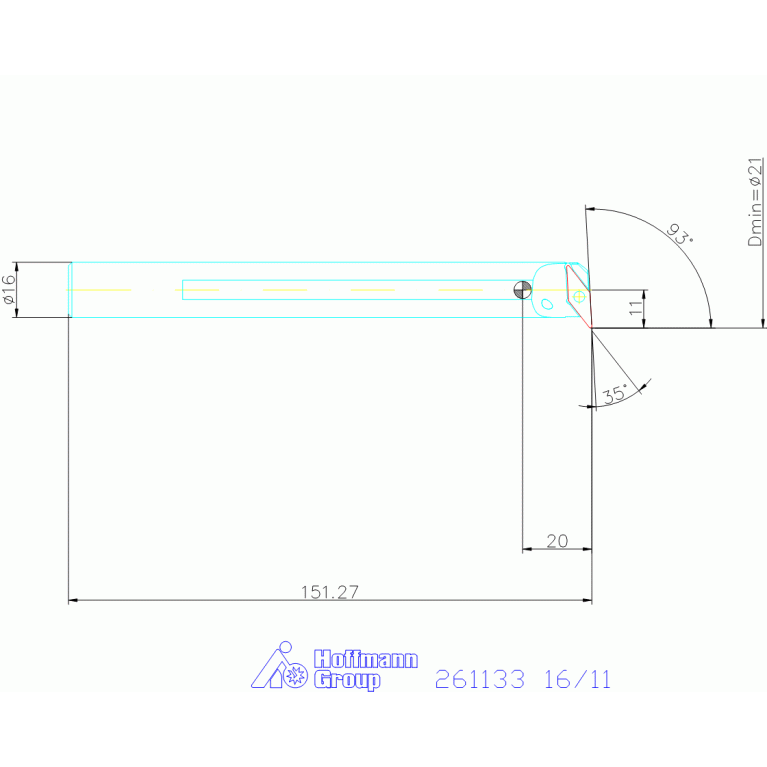

261133 16/11

261133 16/11

Hoffmann Group

Артикул: 261133 16/11

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

5 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

3.18 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.4 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL01602215

DIN CSW1

VB1103043N

DMIN Minimum bore diameter

21 mm

EPSR Insert included angle

35 Degree

FamilyProducts

A..SVUB 93° Boring bar

GAMF Rake angle radial

7 Degree

HAND Cutting direction

R - Right

HF Functional height

10.8 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

11.1 mm

LAMS Inclination angle

0 Degree

LF Functional length

150 mm

LFA A dimension on lf

0.51 mm

LH Head length

24.7 mm

LOC-03 B Shank width

15.5 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01602215

LPR Protruding length

16.5 mm

MIID Master insert identification

VBMT110304

Name Identifying order number

261133 16/11

OAL Overall length

150 mm

STDDES Standard designation

A16MSVUBR11

SX Shank cross section shape code

12 - F3 > F2 (right) Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

6.16 mm

WFA A dimension on wf

11.12 mm

Working process

No working processes available

WT Weight of item

0.25 kg
