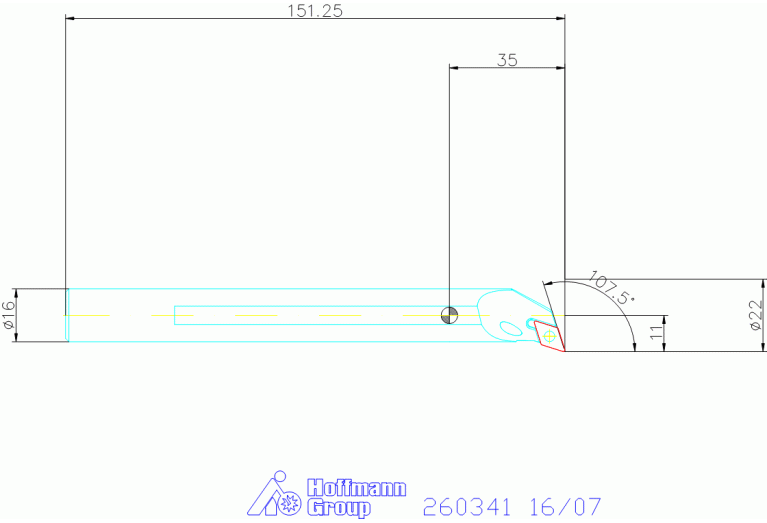

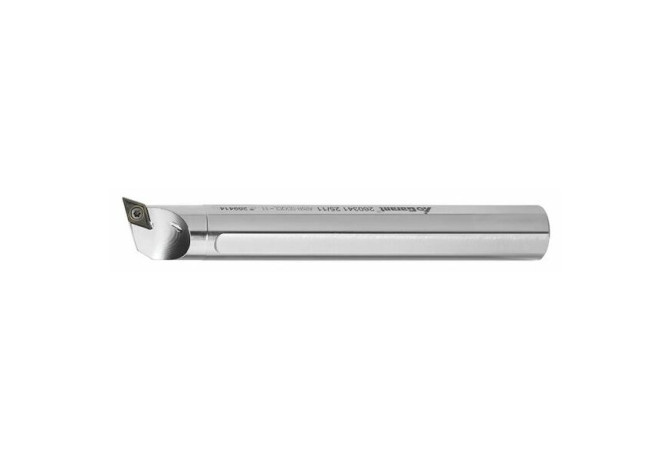

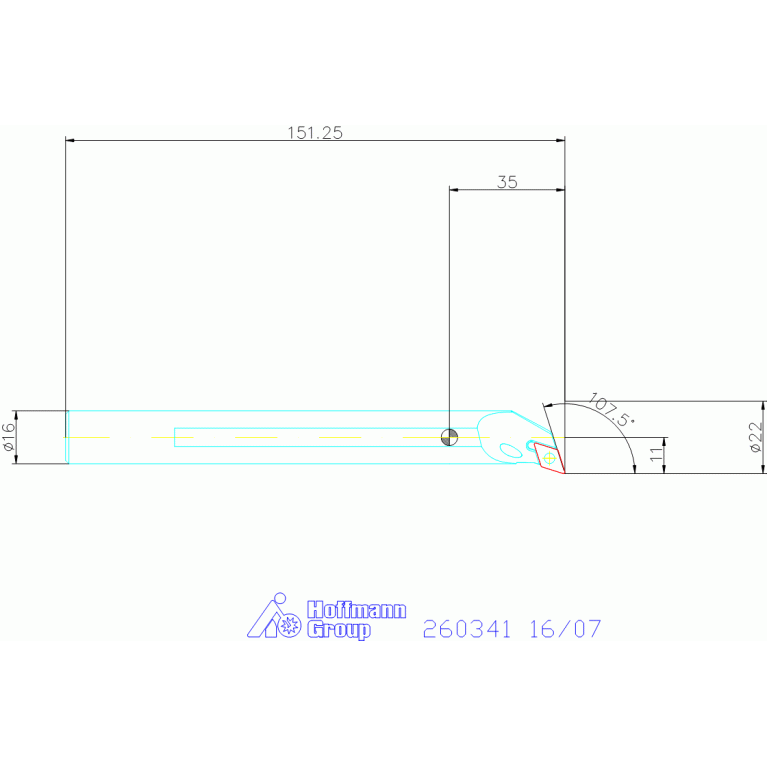

Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning 260341 16/07

260341 16/07

260341 16/07 260341 16/07 260341 16/07

260341 16/07

Hoffmann Group
Артикул: 260341 16/07
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
6.35 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
2.38 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.4 mm
DCP Data chip provision
0 - Without data chip
DIN
ZYL01602215
DIN CSW1
DC0702043N
DMIN Minimum bore diameter
22 mm
EPSR Insert included angle
55 Degree
FamilyProducts
Boring bar, steel
GAMF Rake angle radial
10 Degree
HAND Cutting direction
L - Left
HF Functional height
9.5 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
107.5 Degree
L Cutting edge length
7.75 mm
LAMS Inclination angle
0 Degree
LF Functional length
150 mm
LFA A dimension on lf
7.17 mm
LH Head length
25 mm
LOC-03 B Shank width
15.5 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 H Shank height
15.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602215
LPR Protruding length
35 mm
MIID Master insert identification
DCMT070204
Name Identifying order number
260341 16/07
OAL Overall length
150 mm
STDDES Standard designation
A16MSDQCL07
SX Shank cross section shape code
12 - F3 > F2 (right) Round shank
WF Functional width
11 mm
WFA A dimension on wf
7.07 mm
Working process
No working processes available
WT Weight of item
0.25 kg
