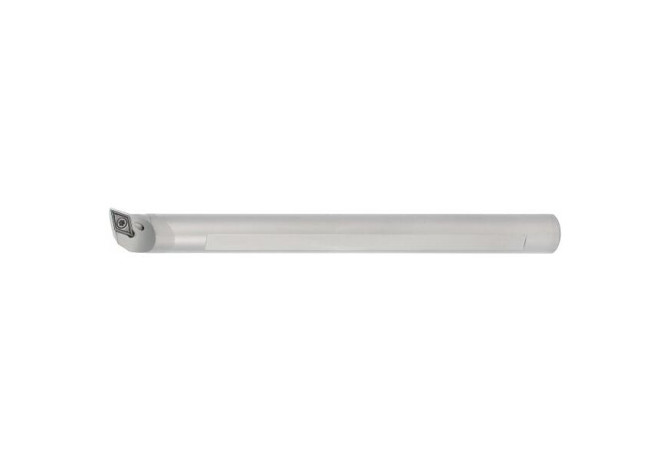

Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning 260321 10/07

260321 10/07

260321 10/07

Hoffmann Group

Артикул: 260321 10/07

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

2.38 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.2 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL01002215

DIN CSW1

DC0702023N

DMIN Minimum bore diameter

13 mm

EPSR Insert included angle

55 Degree

FamilyProducts

Boring bar carbide

GAMF Rake angle radial

0 Degree

HAND Cutting direction

R - Right

HF Functional height

7.2 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

107.5 Degree

L Cutting edge length

7.75 mm

LAMS Inclination angle

-2 Degree

LF Functional length

125 mm

LFA A dimension on lf

6.35 mm

LH Head length

26.5 mm

LOC-03 B Shank width

9 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 H Shank height

9 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01002215

LPR Protruding length

26.5 mm

MIID Master insert identification

DCMT070202

Name Identifying order number

260321 10/07

OAL Overall length

125 mm

STDDES Standard designation

E10KSDQCR07

SX Shank cross section shape code

22 - Round shank

WF Functional width

7 mm

WFA A dimension on wf

3.93 mm

Working process

No working processes available

WT Weight of item

0.17 kg
