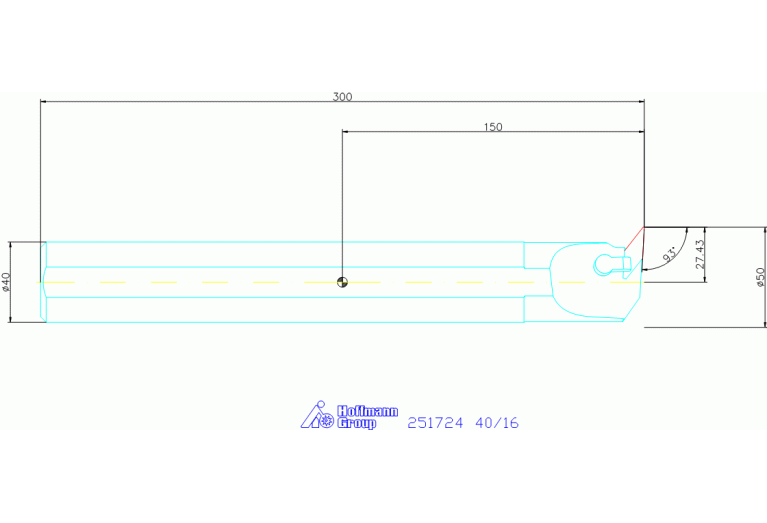

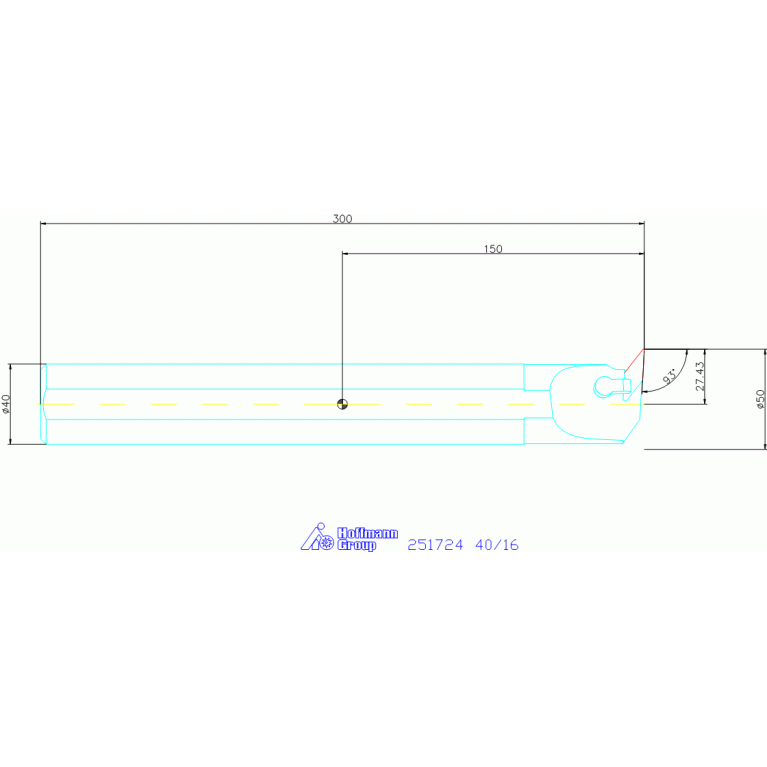

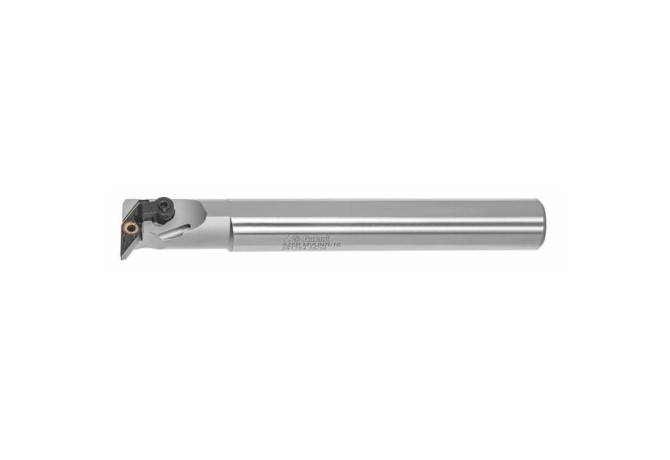

Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning 251724 40/16

251724 40/16

251724 40/16

Hoffmann Group

Артикул: 251724 40/16

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.4 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL04000115

DIN CSW1

VN1604042N

DMIN Minimum bore diameter

50 mm

EPSR Insert included angle

36 Degree

FamilyProducts

Boring bar

GAMF Rake angle radial

12.3 Degree

HAND Cutting direction

R - Right

HF Functional height

22.6 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

16 mm

LAMS Inclination angle

-20 Degree

LF Functional length

300 mm

LFA A dimension on lf

10 mm

LH Head length

59.87 mm

LOC-03 B Shank width

38.5 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 H Shank height

38.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04000115

LPR Protruding length

150 mm

MIID Master insert identification

VNMG160404

Name Identifying order number

251724 40/16

OAL Overall length

300 mm

STDDES Standard designation

A40TMVUNR16

SX Shank cross section shape code

31 - (left) Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

27.43 mm

WFA A dimension on wf

11 mm

Working process

No working processes available

WT Weight of item

2.765 kg
