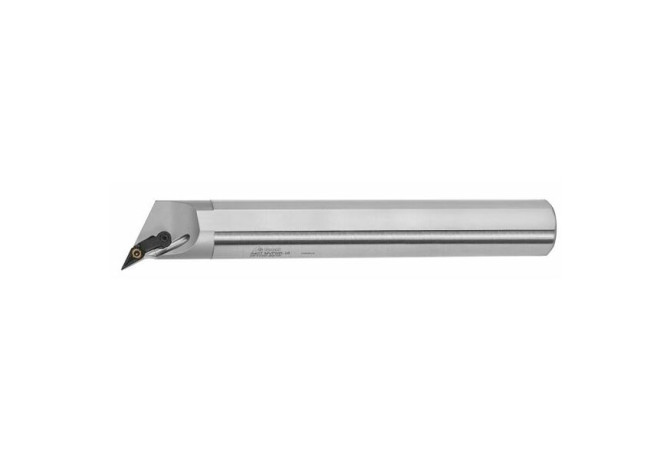

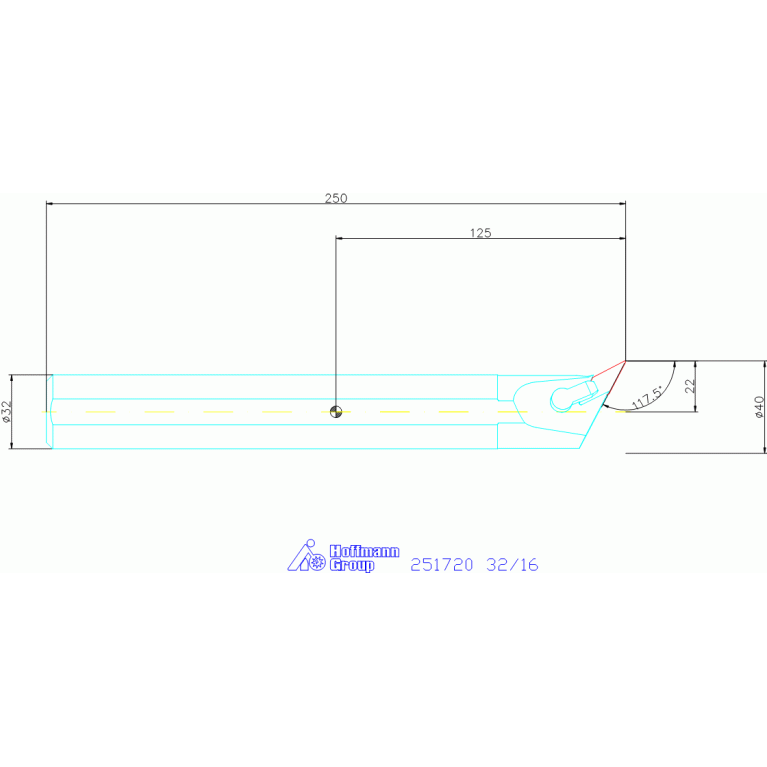

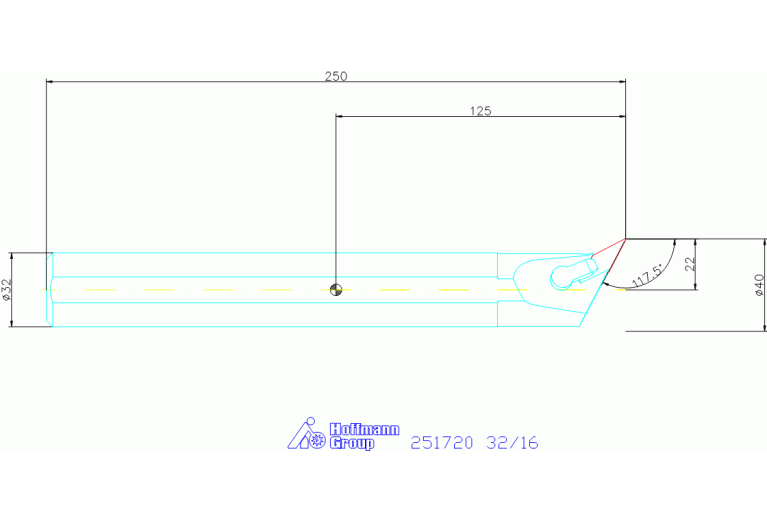

Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning 251720 32/16

251720 32/16

251720 32/16

Hoffmann Group

Артикул: 251720 32/16

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.4 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL03200115

DIN CSW1

VN1604042N

DMIN Minimum bore diameter

40 mm

EPSR Insert included angle

35.7 Degree

FamilyProducts

Boring bar

GAMF Rake angle radial

15 Degree

HAND Cutting direction

R - Right

HF Functional height

18.34 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

117.5 Degree

L Cutting edge length

16 mm

LAMS Inclination angle

-12.1 Degree

LF Functional length

250 mm

LFA A dimension on lf

6.9 mm

LH Head length

55.5 mm

LOC-03 B Shank width

31 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 H Shank height

31 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03200115

LPR Protruding length

125 mm

MIID Master insert identification

VNMG160404

Name Identifying order number

251720 32/16

OAL Overall length

250 mm

STDDES Standard designation

A32SMVPNR16

SX Shank cross section shape code

31 - (left) Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

22 mm

WFA A dimension on wf

6.5 mm

Working process

No working processes available

WT Weight of item

2.69 kg
