251416 32/22
251416 32/22
Артикул:
251416 32/22
В наличии
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.8 mm
DCP Data chip provision
0 - Without data chip
DIN
ZYL03200115
DIN CSW1
TN2204082N
DMIN Minimum bore diameter
40 mm
EPSR Insert included angle
60 Degree
FamilyProducts
GARANT Boring bar
HAND Cutting direction
R - Right
HF Functional height
18.7 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
13 Degree
L Cutting edge length
22 mm
LAMS Inclination angle
-6 Degree

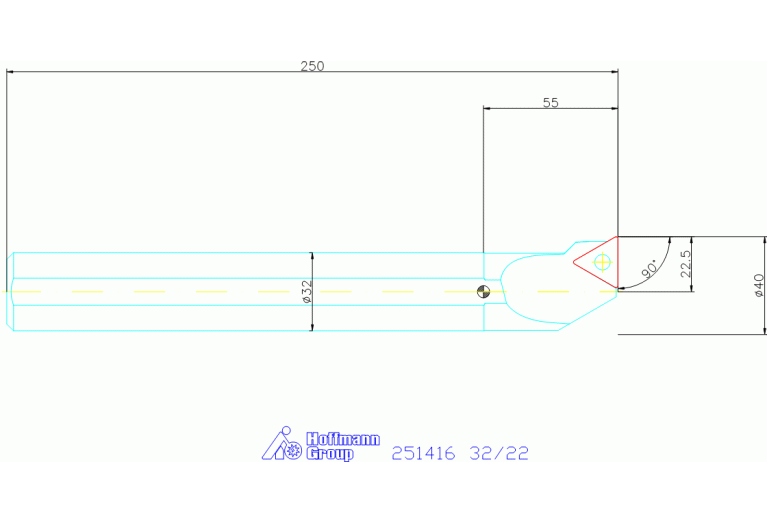

LF Functional length
250 mm
LFA A dimension on lf
0 mm
LH Head length
55 mm
LOC-03 B Shank width
31 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 H Shank height
24 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03200115
LPR Protruding length
55 mm
MIID Master insert identification
TNMG220408
Name Identifying order number
251416 32/22
OAL Overall length
250 mm
STDDES Standard designation
A32SPTFNR22
STDNO Standard
DIN8024
THSC Tool holder shape code
A - offset shank design
WF Functional width
22.5 mm
WFA A dimension on wf
0 mm
Working process
No working processes available
WT Weight of item
1.45 kg
