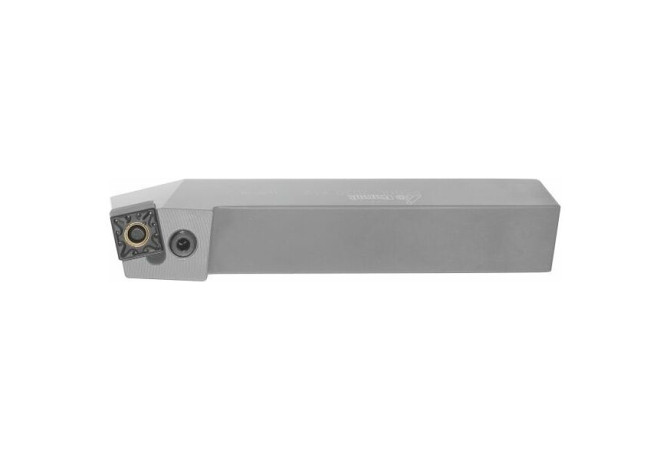

Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning 251107 20/12

251107 20/12

251107 20/12 251107 20/12 251107 20/12

251107 20/12

Hoffmann Group
Артикул: 251107 20/12
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
4.76 mm
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
DCP Data chip provision
0 - Without data chip
DIN
VKT20200105
DIN CSW1
SN1204082N
EPSR Insert included angle
90 Degree
FamilyProducts
Clamp toolholder
GAMF Rake angle radial
7.5 Degree
HAND Cutting direction
R - Right
HF Functional height
20 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
75 Degree
L Cutting edge length
12.7 mm
LAMS Inclination angle
-4.4 Degree
LF Functional length
113 mm
LFA A dimension on lf
12.2 mm
LH Head length
28 mm
LOC-03 B Shank width
20 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2020
LOC-03 H Shank height
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200105
LPR Protruding length
62.5 mm
MIID Master insert identification
SNMG120408
Name Identifying order number
251107 20/12

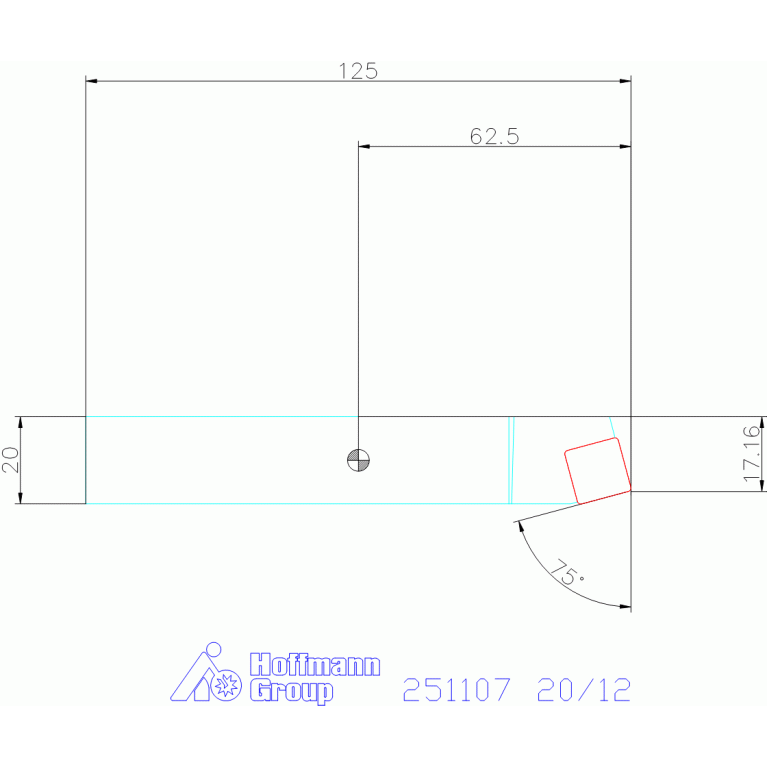

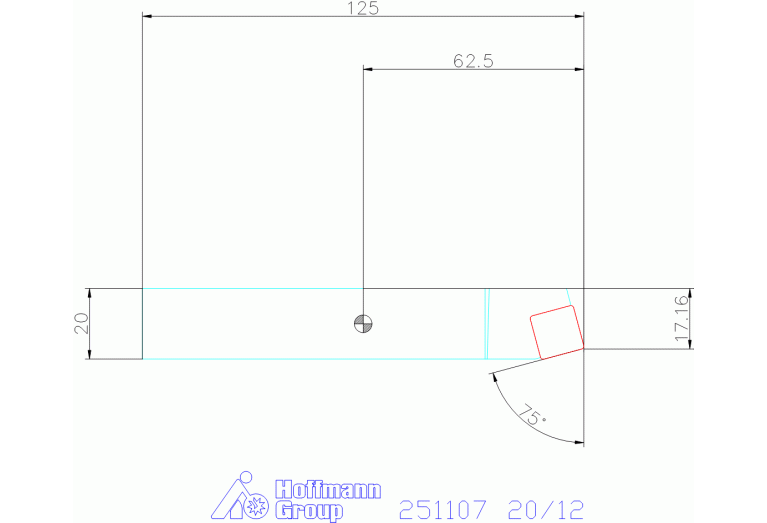

OAL Overall length
125 mm
STDDES Standard designation
PSBNR2020K12
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
10.2 mm
WFA A dimension on wf
3.1 mm
Working process
No working processes available
WT Weight of item
0.39 kg
