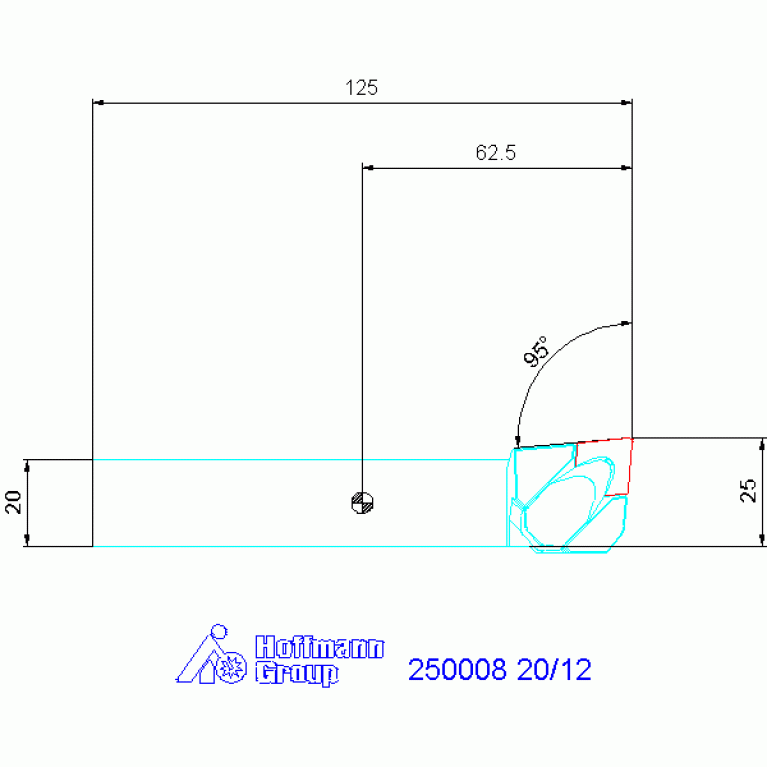

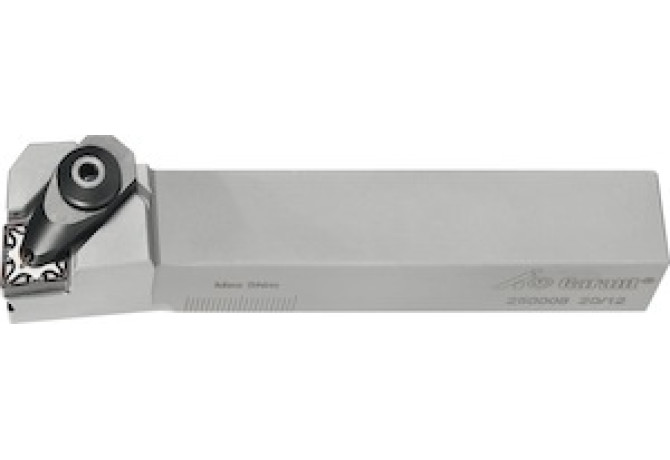

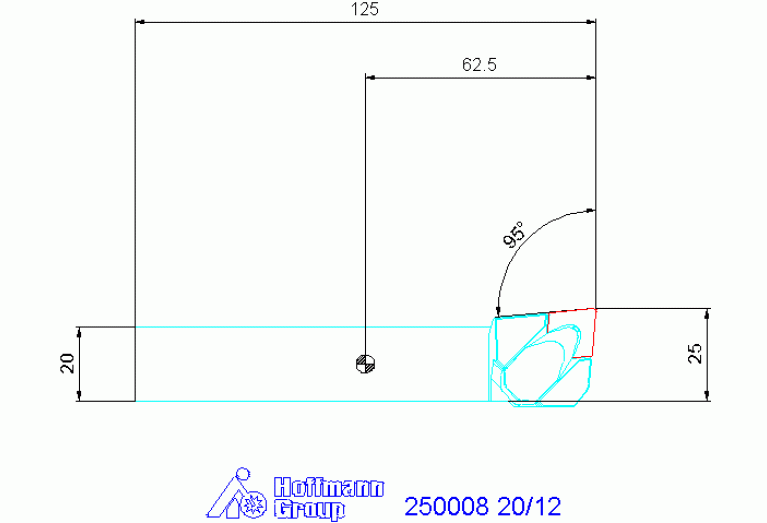

Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning 250008 20/12

250008 20/12

250008 20/12

Hoffmann Group

Артикул: 250008 20/12

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

DIN

VKT20200115

DIN CSW1

CN1204042N

EPSR Insert included angle

80 Degree

FamilyProducts

eco lever lock toolholder

GAMF Rake angle radial

-10 Degree

HAND Cutting direction

R - Right

HF Functional height

20 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

12.7 mm

LAMS Inclination angle

-6 Degree

LF Functional length

125 mm

LFA A dimension on lf

0 mm

LH Head length

29 mm

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

2020

LOC-03 H Shank height

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200115

LPR Protruding length

62.5 mm

MIID Master insert identification

CNMG1204

Name Identifying order number

250008 20/12

OAL Overall length

125 mm

STDDES Standard designation

DCLNR2020K12

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

12.5 mm

WFA A dimension on wf

0 mm

Working process

No working processes available

WT Weight of item

0.4 kg
