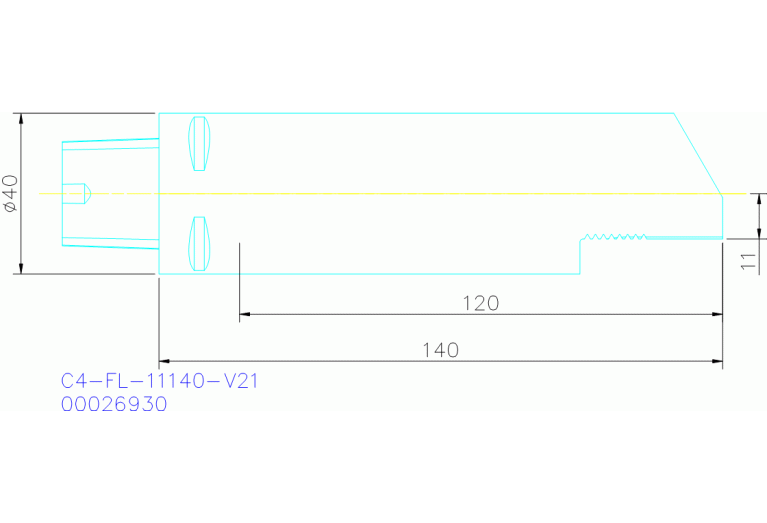

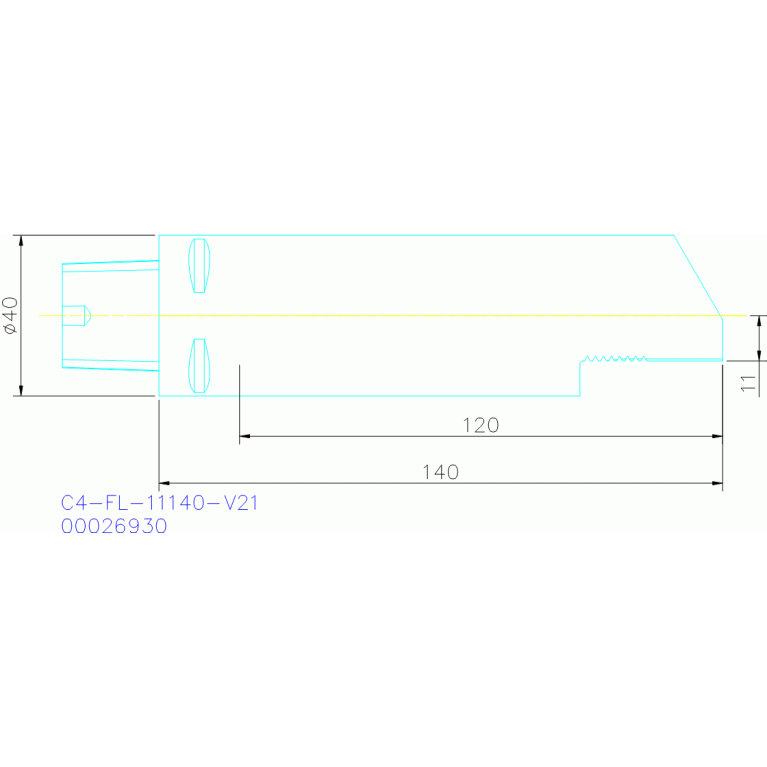

Главная Каталог продукции Toolunited 10 309-00 - Tool holder for indexable inserts unspecified C4-FL-11140-V21

C4-FL-11140-V21

Артикул: 00026930

В наличии

В корзину

Описание

Характеристики

BDRED Body diameter reduced

40 mm

BI Block index

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

CCS04000195

FamilyProducts

C4-FL-11140-V21

HAND Cutting direction

L - Left

ID Technical product number

00026930

Interface codes

J6 / J61

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

CCS01C0400$$$$

ISO CSW1

SMS01V21CLLFL

ISYC Subclass

309-00 - Tool holder for indexable inserts unspecified

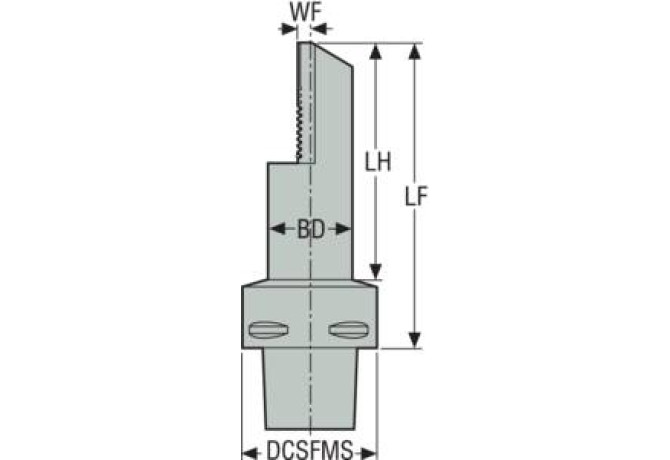

LF Functional length

140 mm

LH Head length

120 mm

LOC-01 BI Block index

LOC-01 MIID Master insert identification

Blade-V21

LOC-01 ISO

SMS01V21CLLFL

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-02 BI Block index

LOC-02 MIID Master insert identification

Blade-V21

LOC-02-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 02)

LOC-02-DIN

SO-SMS01V21CLLFL

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 ISO

CCS01C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS04000195

LTA Length tool assembly

140 mm

MIID Master insert identification

Blade-V21

Name Identifying order number

C4-FL-11140-V21

WF Functional width

11 mm

Working process

No working processes available

WT Weight of item

1.288 kg
