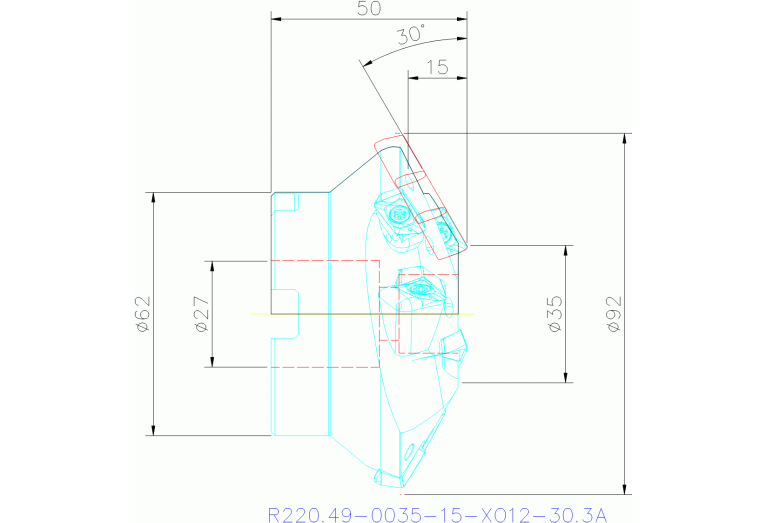

Главная Каталог продукции Toolunited 10 308-08 - Full-side angular slot milling cutter R220.49-0035-15-XO12-30.3A

R220.49-0035-15-XO12-30.3A

R220.49-0035-15-XO12-30.3A R220.49-0035-15-XO12-30.3A R220.49-0035-15-XO12-30.3A R220.49-0035-15-XO12-30.3A

R220.49-0035-15-XO12-30.3A

Seco
Артикул: 02669634
В наличии
В корзину
Описание
Характеристики
BI Block index
1
CCONMS Connection count machine side
1
CDX Cutting depth maximum
15.9 mm
CICT Cutting item count
12
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CWN Cutting width minimum
15.9 mm
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial

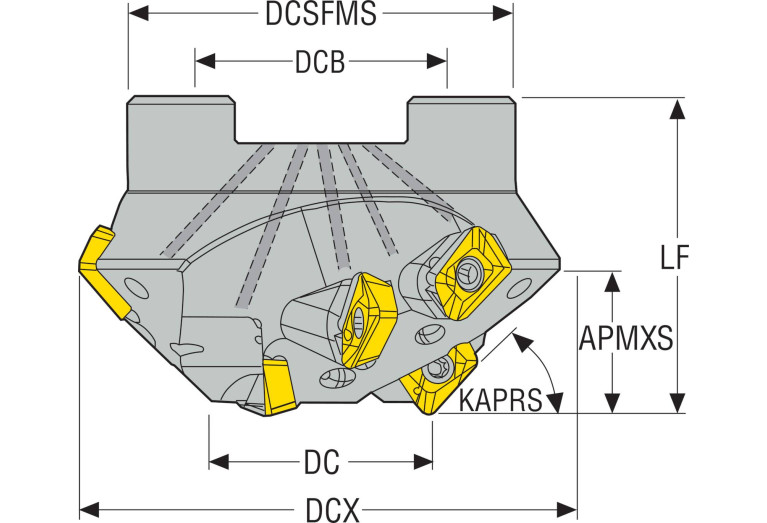

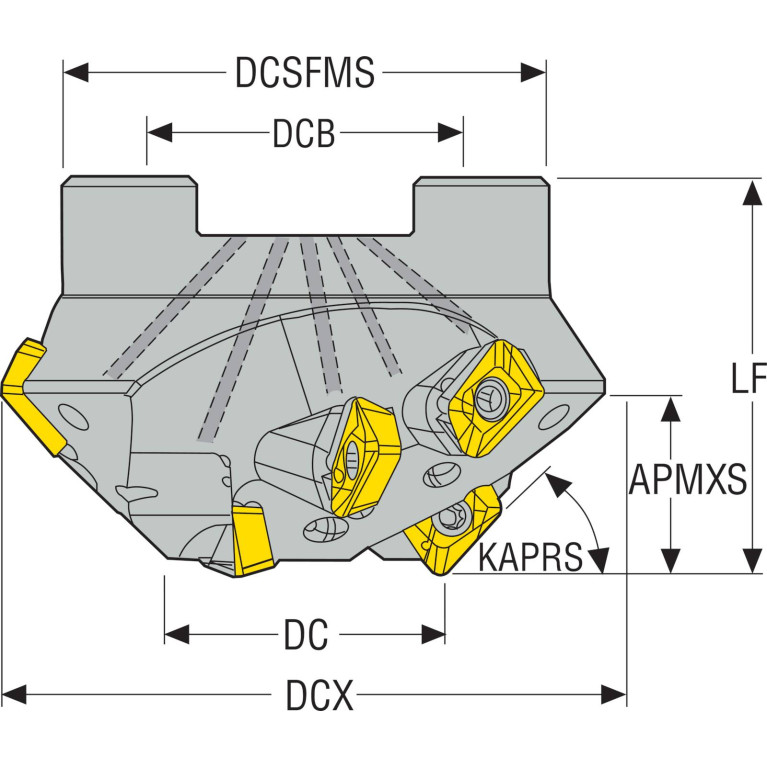

DC Cutting diameter
35 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
91.9 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
62 mm
DIN
FDA02702210
FamilyProducts
R220.49-0035-15-XO12-30.3A
GAMF Rake angle radial
-14 Degree
GAMP Rake angle axial
0 Degree
ID Technical product number
02669634
Interface codes
J6 /
ISYC Subclass
308-08 - Full-side angular slot milling cutter
KAPR Tool cutting edge angle
30 Degree
LOC-01 BI Block index
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SO-XO1204 3R
LOC-02 BI Block index
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-XO1204 3R
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02702210
Name Identifying order number
R220.49-0035-15-XO12-30.3A
OAL Overall length
50 mm
RPMX Rotational speed maximum
10700 1/min
Working process
No working processes available
WT Weight of item
1.033 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
