Главная Каталог продукции Toolunited 10 308-08 - Full-side angular slot milling cutter R220.47-0063

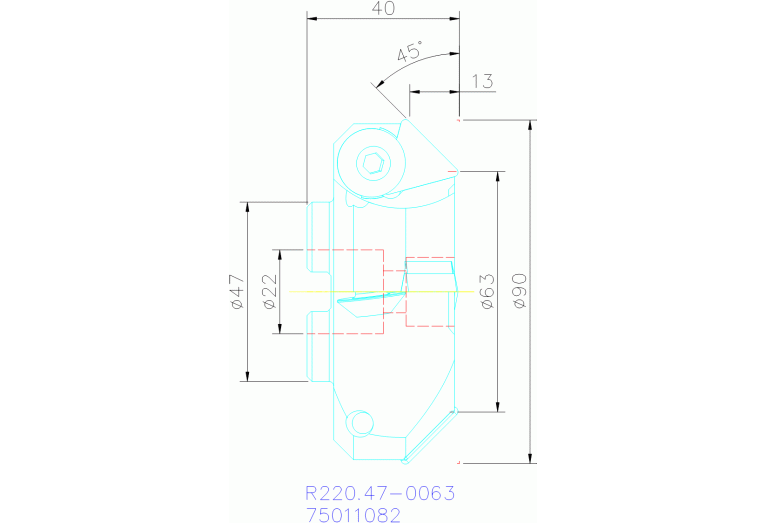

R220.47-0063

R220.47-0063

SECO Tools

Артикул: 75011082

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

60 Degree

A1B Cutting edge angle major Pos. B

60 Degree

A2A Clearance angle major Pos. A

11 Degree

A2B Clearance angle major Pos. B

11 Degree

B1A Cutting edge length Pos. A

22 mm

B1B Cutting edge length Pos. B

22 mm

B3A Inscribed circle diameter Pos. A

12.7 mm

B3B Inscribed circle diameter Pos. B

12.7 mm

BI Block index

1

BLDA Tool style code Position A

1

BLDB Tool style code Position B

1

C1A Insert thickness Pos. A

4.76 mm

C1B Insert thickness Pos. B

4.76 mm

CCONMS Connection count machine side

3

COMPC Company code

SO - SECO Tools

CWN Cutting width minimum

13 mm

D1A Corner radius Pos. A

0.2 mm

D1B Corner radius Pos. B

0.2 mm

DC Cutting diameter

63 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

88 mm

Delivery state valid from

3/14/2020

DHUB Hub diameter

47 mm

DIN

FDA02202200

FamilyProducts

R220.47-0063

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

75011082

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

1

ISISO B Indicator for ISO cutting plate Pos.B

1

ISO

FDA22G2200H$07

ISYC Subclass

308-08 - Full-side angular slot milling cutter

KAPR Tool cutting edge angle

45 Degree

LOC-01 BI Block index

1

LOC-01 MIID Master insert identification

TPGN220402

LOC-01 ISO

ISO$TP2204**3RB****

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-02 BI Block index

2

LOC-02 MIID Master insert identification

TPGN220402

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO-TP1-2204N

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03 ISO

FDA22G2200H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02202200

MIID Master insert identification

TPGN220402

Name Identifying order number

R220.47-0063

RPMX Rotational speed maximum

6800 1/min

Working process

No working processes available

WT Weight of item

0.9 kg

ZEFP Peripheral effective cutting edge count

4
