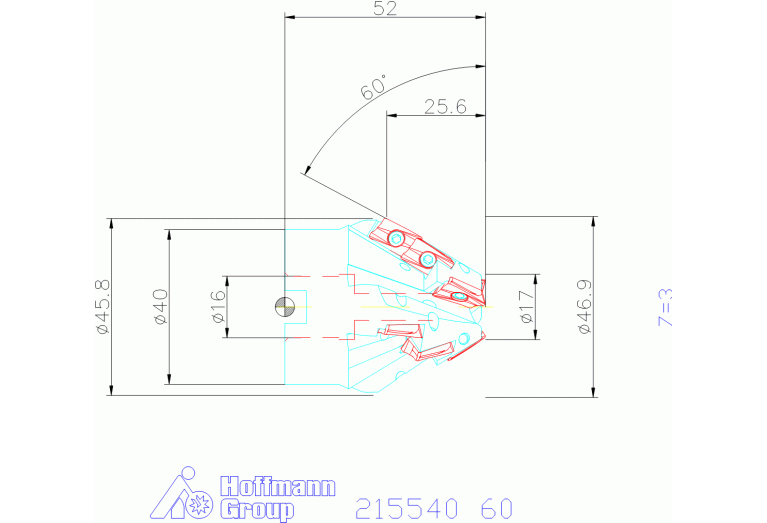

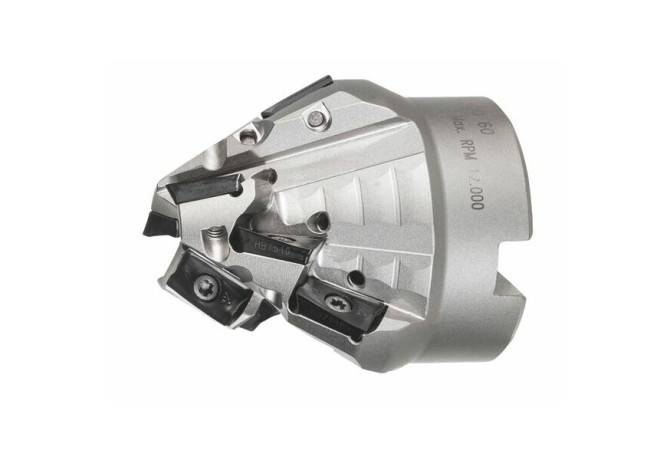

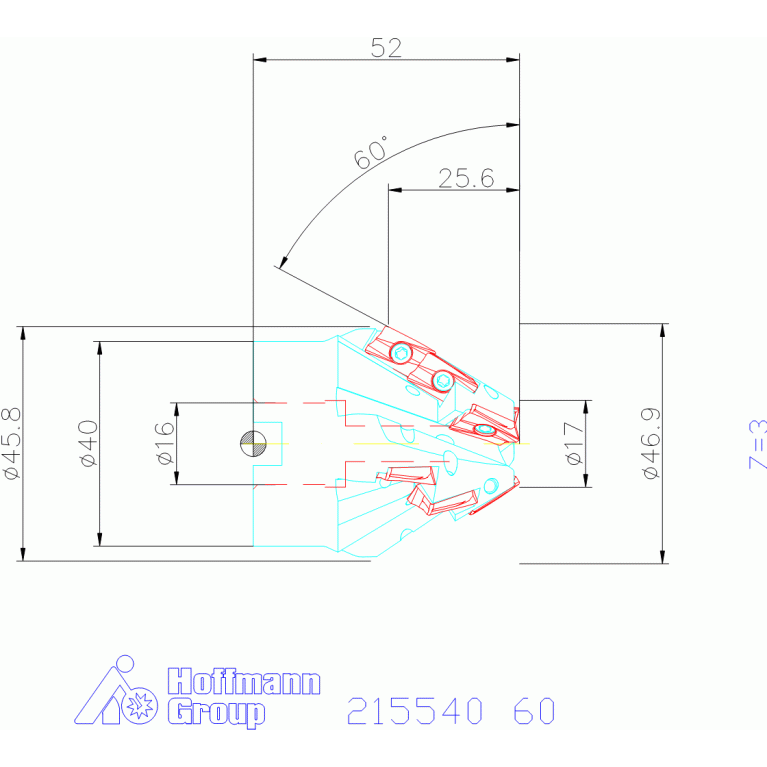

Главная Каталог продукции Toolunited 10 308-08 - Full-side angular slot milling cutter 215540 60

215540 60

215540 60

Hoffmann Group

Артикул: 215540 60

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

11 Degree

A2B Clearance angle major Pos. B

11 Degree

BD Body diameter

45.8 mm

BI Block index

1

BLDA Tool style code Position A

5

BLDB Tool style code Position B

5

CCONMS Connection count machine side

1

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

HOG - Hoffmann Group

CWN Cutting width minimum

25.5 mm

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.35 mm

DC Cutting diameter

17 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

46.9 mm

DHUB Hub diameter

40 mm

DIN

FDA01602210

FamilyProducts

Chamfer mill Softcut® MTC

GAMF Rake angle radial

-24 Degree

GAMP Rake angle axial

8 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

308-08 - Full-side angular slot milling cutter

KAPR Tool cutting edge angle

60 Degree

LOC-01 BI Block index

1

LOC-01 MIID Master insert identification

APMT1335

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

AP1335043R

LOC-02 BI Block index

2

LOC-02 MIID Master insert identification

APMT1335

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

AP1335 3R

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA01602210

MIID Master insert identification

APMT1335

Name Identifying order number

215540 60

OAL Overall length

52 mm

Working process

No working processes available

WT Weight of item

0.272 kg

ZEFF Face effective cutting edge count

3

ZEFP Peripheral effective cutting edge count

9
