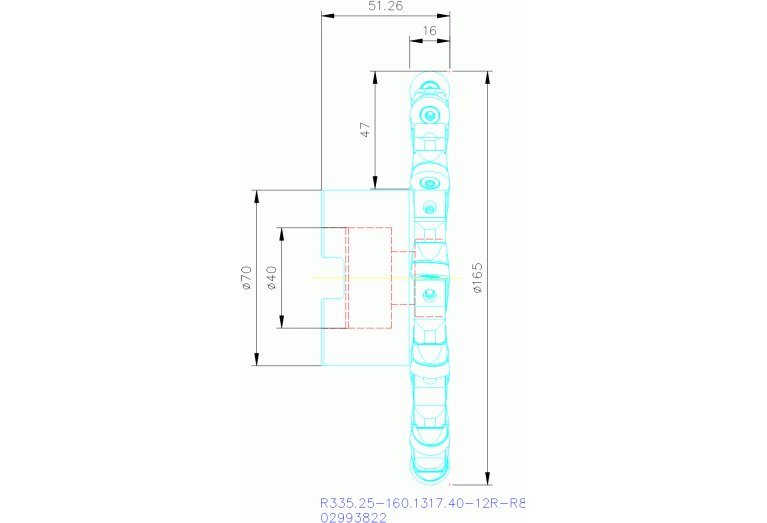

R335.25-160.1317.40-12R-R8
R335.25-160.1317.40-12R-R8
Артикул:
02993822
В наличии
Характеристики
BI Block index
1
CCONMS Connection count machine side
1
CDX Cutting depth maximum
47.001 mm
CICT Cutting item count
24
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CWN Cutting width minimum
7.94 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
165 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
70 mm
DIN
FDA04002200
FamilyProducts
R335.25-160.1317.40-12R-R8
GAMF Rake angle radial
-6 Degree
GAMP Rake angle axial
3 Degree
HAND Cutting direction
R - Right
ID Technical product number
02993822
Interface codes
J6 /
ISYC Subclass
308-07 - Full-side profile slot milling cutter
LOC-01 BI Block index
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SO-RP1605 3N
LOC-02 BI Block index
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-RP1605 3N
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA04002200
Name Identifying order number
R335.25-160.1317.40-12R-R8
OAL Overall length
51.265 mm
RPMX Rotational speed maximum
7200 1/min
Working process
No working processes available
WT Weight of item
2.245 kg
ZEFF Face effective cutting edge count
12
ZEFP Peripheral effective cutting edge count
12
