Главная Каталог продукции Toolunited 10 308-07 - Full-side profile slot milling cutter 335.25-12.00-XL1113N-R10

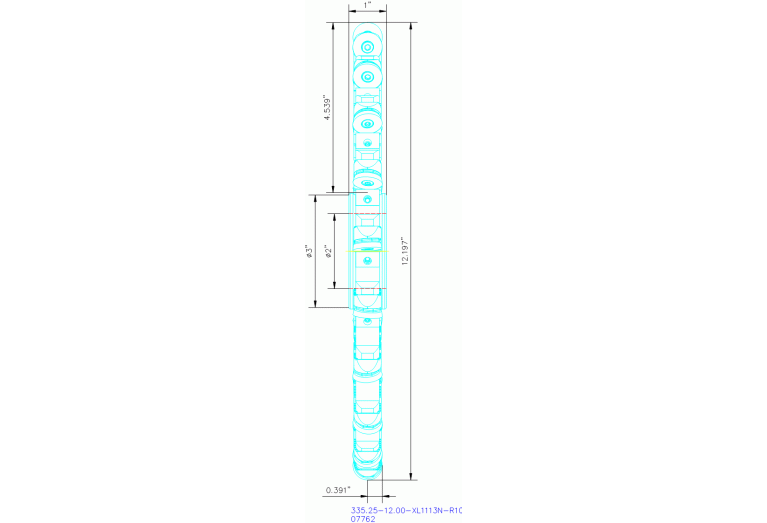

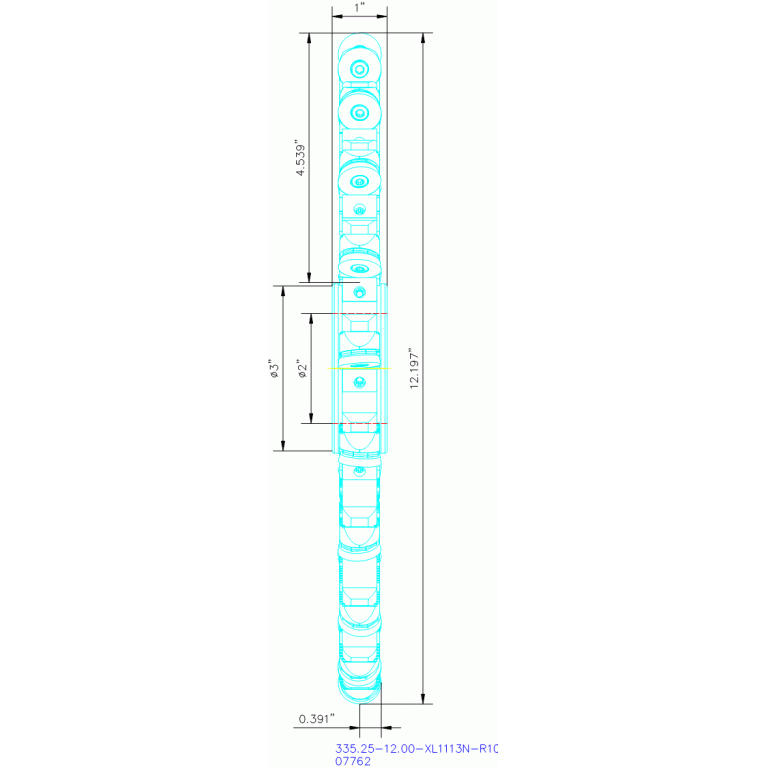

335.25-12.00-XL1113N-R10

335.25-12.00-XL1113N-R10 335.25-12.00-XL1113N-R10 335.25-12.00-XL1113N-R10 335.25-12.00-XL1113N-R10

335.25-12.00-XL1113N-R10

SECO Tools
Артикул: 02993904
В наличии
В корзину
Описание
Характеристики
BI Block index
1
CCONMS Connection count machine side
1
CDX Cutting depth maximum
115.3 mm
CICT Cutting item count
30
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CWN Cutting width minimum
20.03 mm
CXSC Coolant exit style code
0 - Without coolant exit

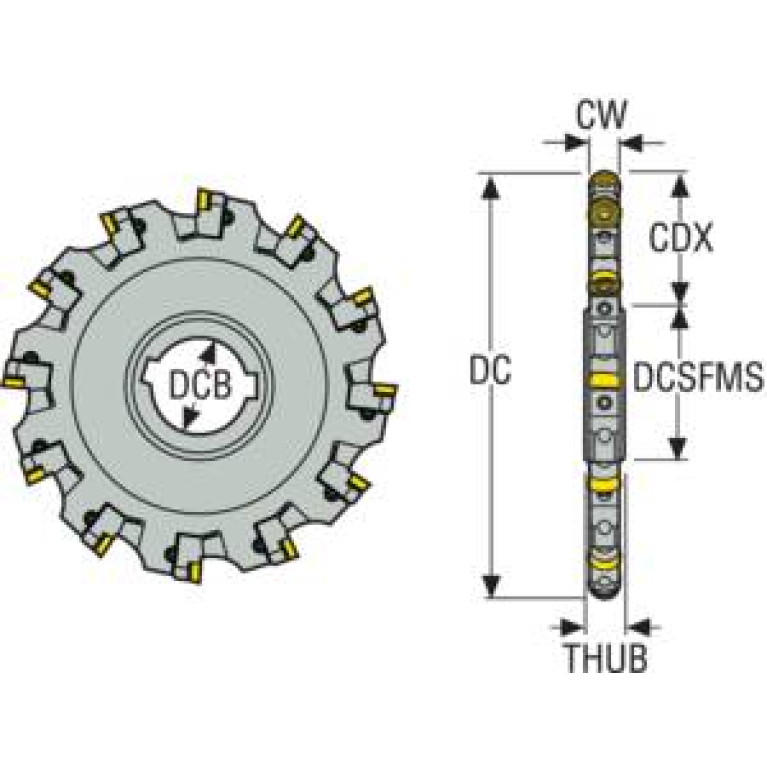

DC Cutting diameter
309.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
76.2 mm
DIN
FDA20002120
FamilyProducts
335.25-12.00-XL1113N-R10
GAMF Rake angle radial
-7 Degree
GAMP Rake angle axial
4 Degree
HAND Cutting direction
N - Neutral
ID Technical product number
02993904
Interface codes
J6 /
ISYC Subclass
308-07 - Full-side profile slot milling cutter
LOC-01 BI Block index
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SO-RP2006 3N
LOC-02 BI Block index
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-RP2006 3N
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
2000
LOC-03 DCONMS Diameter
50.8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA20002120
Name Identifying order number
335.25-12.00-XL1113N-R10
OAL Overall length
25.4 mm
RPMX Rotational speed maximum
4100 1/min
Working process
No working processes available
ZEFF Face effective cutting edge count
10
ZEFP Peripheral effective cutting edge count
10
