Главная Каталог продукции Toolunited 10 308-05 - Full-side slot milling cutter SMP03-125x12-B32-MP08-12L

SMP03-125x12-B32-MP08-12L

SMP03-125x12-B32-MP08-12L SMP03-125x12-B32-MP08-12L SMP03-125x12-B32-MP08-12L

SMP03-125x12-B32-MP08-12L

ZCC Cutting Tools
Артикул: SMP03-125x12-B32-MP08-12L
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
86 Degree
A1B Cutting edge angle major Pos. B
86 Degree
A2A Clearance angle major Pos. A
11 Degree
A2B Clearance angle major Pos. B
11 Degree
B1A Cutting edge length Pos. A
8.3 mm
B1B Cutting edge length Pos. B
8.3 mm
B3A Inscribed circle diameter Pos. A
8.3 mm
B3B Inscribed circle diameter Pos. B
8.3 mm
BI Block index
1
BLDA Tool style code Position A
3
BLDB Tool style code Position B
3
C1A Insert thickness Pos. A
3.18 mm
C1B Insert thickness Pos. B
3.18 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
33 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
ZCC - ZCC Cutting Tools
CWN Cutting width minimum
12 mm
CWX Cutting width maximum
12 mm
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.5 mm
D1B Corner radius Pos. B
0.5 mm

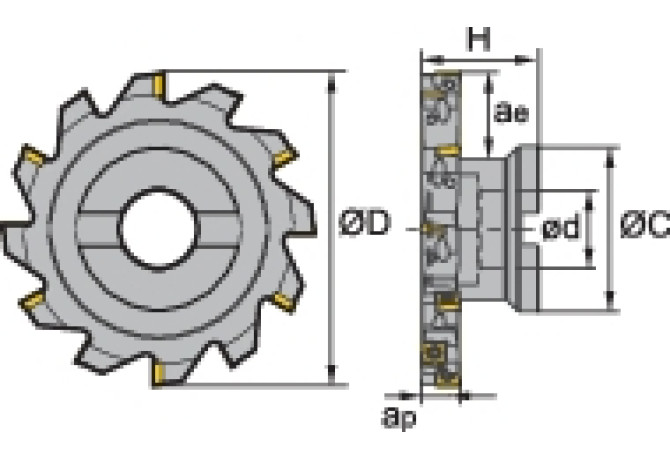

DC Cutting diameter
125 mm
DCP Data chip provision
0 - Without data chip
Delivery state
NL - Discontinued
DHUB Hub diameter
65 mm
DIN
FDA03201200
FamilyProducts
Slot mill (radial)
HAND Cutting direction
L - Left
ID Identifying order number
SMP03-125x12-B32-MP08-12L
Interface codes
J6 /
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
MPHT080305-DM
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
ZCC-MP0803
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
MPHT080305-DM
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
ZCC-MP0803
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03201200
MIID Master insert identification
MPHT080305-DM
OAL Overall length
45 mm
Working process
FNU - Groove milling,FTR - Slot cutting
WT Weight of item
1.4 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
12
