Главная Каталог продукции Toolunited 10 308-05 - Full-side slot milling cutter SMP01-100x5-A27-SN12-10L

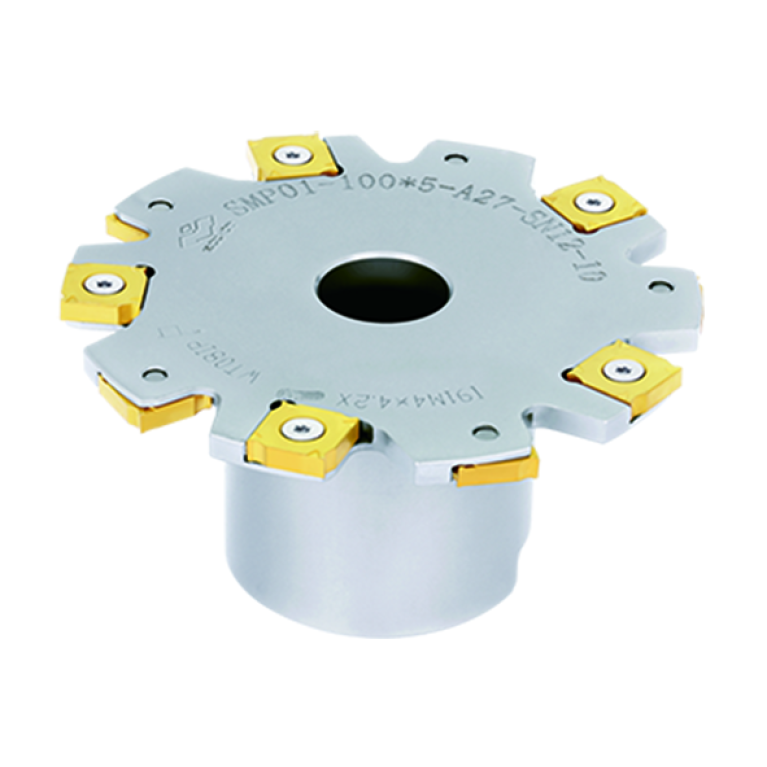

SMP01-100x5-A27-SN12-10L

SMP01-100x5-A27-SN12-10L SMP01-100x5-A27-SN12-10L SMP01-100x5-A27-SN12-10L

SMP01-100x5-A27-SN12-10L

ZCC Cutting Tools
Артикул: SMP01-100x5-A27-SN12-10L
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
A2B Clearance angle major Pos. B
0 Degree
B1A Cutting edge length Pos. A
12.7 mm
B1B Cutting edge length Pos. B
12.7 mm
B3A Inscribed circle diameter Pos. A
12.7 mm
B3B Inscribed circle diameter Pos. B
12.7 mm
BI Block index
1
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
C1A Insert thickness Pos. A
3 mm
C1B Insert thickness Pos. B
3 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
23 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
ZCC - ZCC Cutting Tools
CWN Cutting width minimum
5 mm
CWX Cutting width maximum
5 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
100 mm
DCP Data chip provision
0 - Without data chip
Delivery state
NL - Discontinued
DHUB Hub diameter
48 mm
DIN
FDA02702200
FamilyProducts
Slot mill (radial)
HAND Cutting direction
L - Left
ID Identifying order number
SMP01-100x5-A27-SN12-10L
Interface codes
J6 /
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
XSEQ1203
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
ZCC-XS1203
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
XSEQ1203
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
ZCC-XS1203
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02702200
MIID Master insert identification
XSEQ1203
OAL Overall length
50 mm
Working process
FNU - Groove milling,FTR - Slot cutting
WT Weight of item
0.7 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
10
