4VJ5V315013F6R00
4VJ5V315013F6R00
Артикул:
5890746
В наличии
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
B1A Cutting edge length Pos. A
8.7 mm
B1B Cutting edge length Pos. B
8.7 mm
B2A Insert width Pos. A
14.1 mm
B2B Insert width Pos. B
14.1 mm
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
C1A Insert thickness Pos. A
9.1 mm
C1B Insert thickness Pos. B
9.1 mm
CCONMS Connection count machine side
1
CICT Cutting item count
20
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.4 mm
D1B Corner radius Pos. B
0.4 mm
DC Cutting diameter
315 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LL - Stock limited
DHUB Hub diameter
130 mm
DIN
SPK06000200

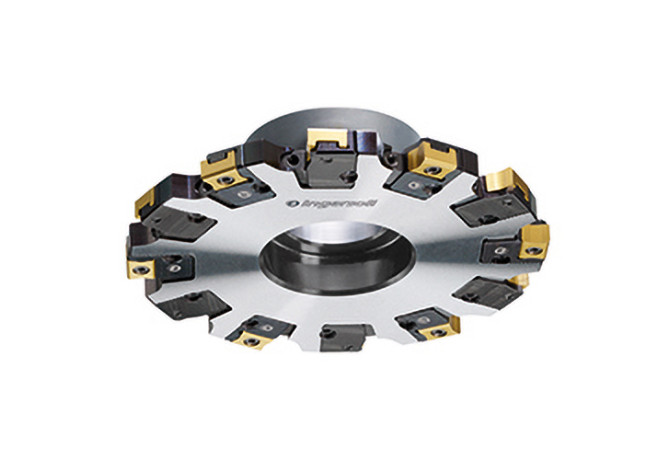

FamilyProducts
Slot Mill 4VJ5V...F/E 13-17 mm cutting width
ID Technical product number
5890746
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
SPK Spindle nose mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0600
LOC-03 DCONMS Diameter
60 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK06000200
Name Identifying order number
4VJ5V315013F6R00
OAL Overall length
45 mm
Working process
No working processes available
WT Weight of item
8.35 kg
ZEFF Face effective cutting edge count
10
ZEFP Peripheral effective cutting edge count
10
