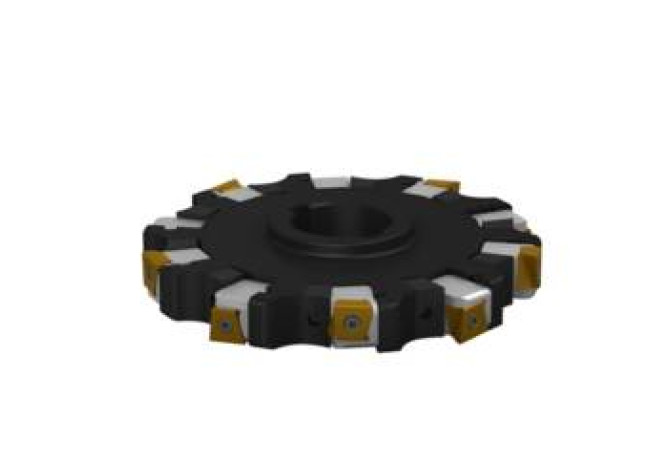

Главная Каталог продукции Toolunited 10 308-05 - Full-side slot milling cutter 335.25-125.2126.40-4N/ADJ

335.25-125.2126.40-4N/ADJ

335.25-125.2126.40-4N/ADJ 335.25-125.2126.40-4N/ADJ 335.25-125.2126.40-4N/ADJ 335.25-125.2126.40-4N/ADJ

335.25-125.2126.40-4N/ADJ

SECO Tools
Артикул: 02814600
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
4
BLDB Tool style code Position B
4
CCONMS Connection count machine side
3
CDX Cutting depth maximum
32.7 mm
CICT Cutting item count
12
COMPC Company code
SO - SECO Tools
CWN Cutting width minimum
26 mm
DC Cutting diameter
125 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DHUB Hub diameter
55 mm
DIN
FDA04002100
FamilyProducts
335.25-125.2126.40-4N/ADJ
GAMF Rake angle radial
-10 Degree
GAMP Rake angle axial
-5 Degree
HAND Cutting direction
R - Right
ID Technical product number
02814600
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
FDA21G4000H$06
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
LNHQ140708TN4-M11
LOC-02 ISO
SO$$LN1407**3NB****
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-SO 335 25-1407
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 ISO
FDA21G4000H$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA04002100
Name Identifying order number
335.25-125.2126.40-4N/ADJ
OAL Overall length
32 mm
RPMX Rotational speed maximum
4900 1/min
Working process
No working processes available
WT Weight of item
1.286 kg
ZEFP Peripheral effective cutting edge count
4
