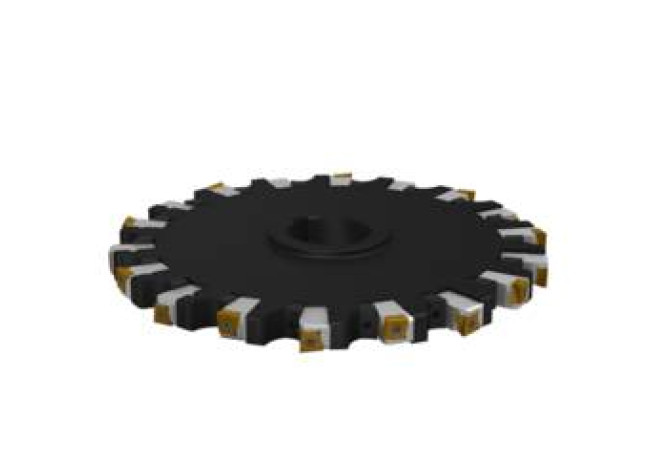

335.25-12.00-XL1316N

335.25-12.00-XL1316N 335.25-12.00-XL1316N 335.25-12.00-XL1316N 335.25-12.00-XL1316N

335.25-12.00-XL1316N

SECO Tools
Артикул: 02814655
В наличии
В корзину
Описание
Характеристики

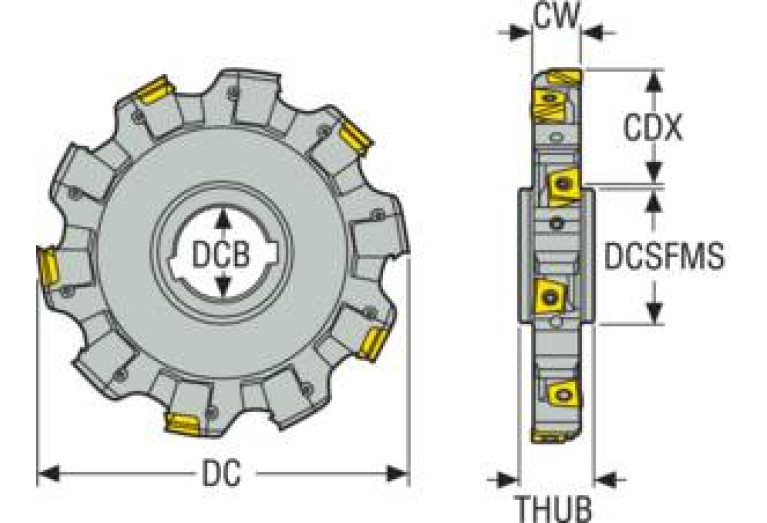

CCONMS Connection count machine side
1
CDX Cutting depth maximum
112.1 mm
CICT Cutting item count
27
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CWN Cutting width minimum
21 mm
CXSC Coolant exit style code
0 - Without coolant exit

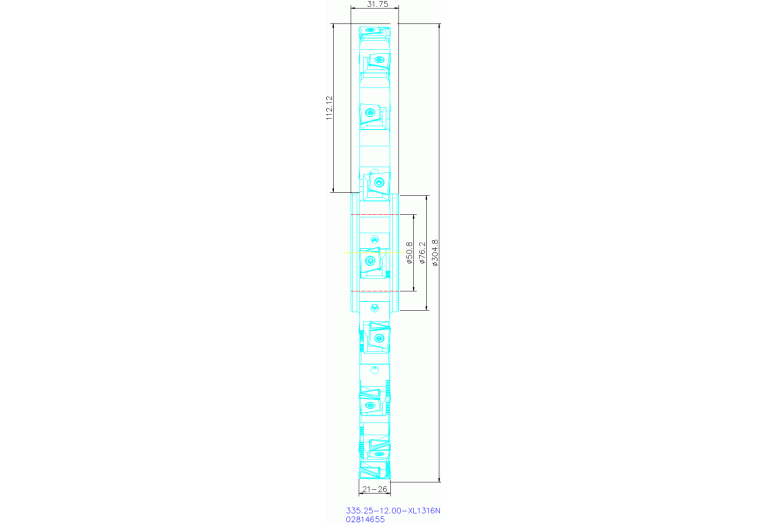

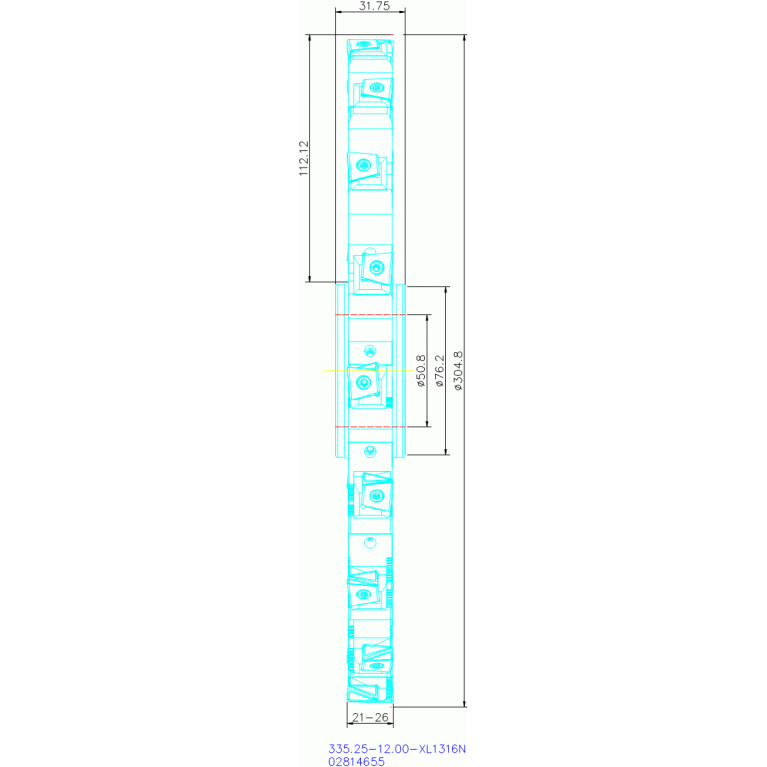

DC Cutting diameter
304.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
76.2 mm
DIN
FDA20002120
FamilyProducts
335.25-12.00-XL1316N
GAMF Rake angle radial
-8 Degree
GAMP Rake angle axial
-5 Degree
HAND Cutting direction
N - Neutral
ID Technical product number
02814655
Interface codes
J6 /
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-02 BI Block index
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-LN1407 3N
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
2000
LOC-03 DCONMS Diameter
50.8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA20002120
Name Identifying order number
335.25-12.00-XL1316N
OAL Overall length
31.75 mm
RPMX Rotational speed maximum
3200 1/min
Working process
No working processes available
WT Weight of item
9.321 kg
ZEFF Face effective cutting edge count
9
ZEFP Peripheral effective cutting edge count
9
