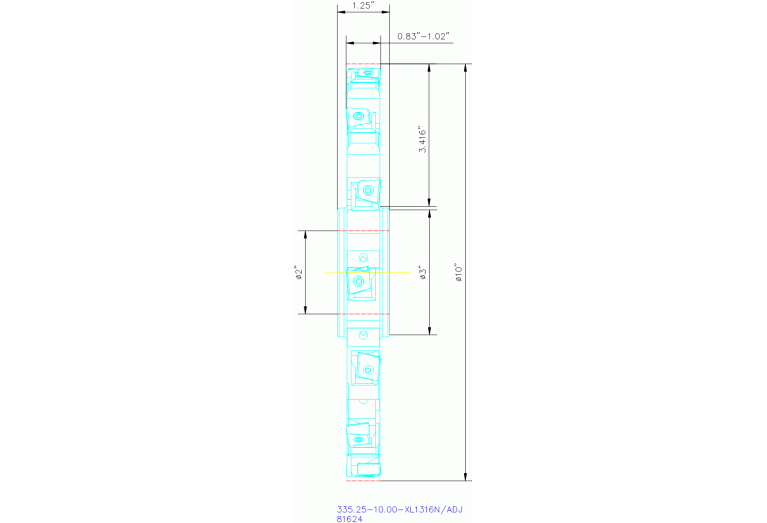

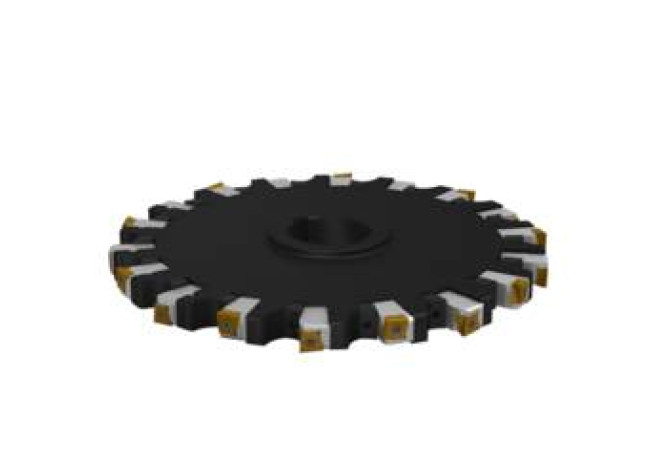

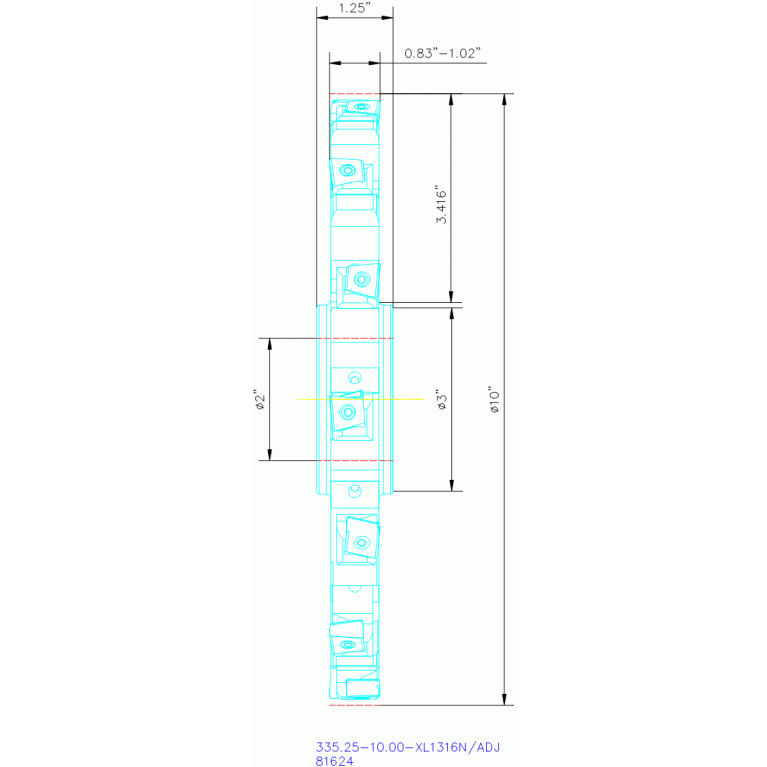

335.25-10.00-XL1316N/ADJ

335.25-10.00-XL1316N/ADJ 335.25-10.00-XL1316N/ADJ 335.25-10.00-XL1316N/ADJ 335.25-10.00-XL1316N/ADJ

335.25-10.00-XL1316N/ADJ

SECO Tools
Артикул: 02814652
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
4
BLDB Tool style code Position B
4
CCONMS Connection count machine side
2

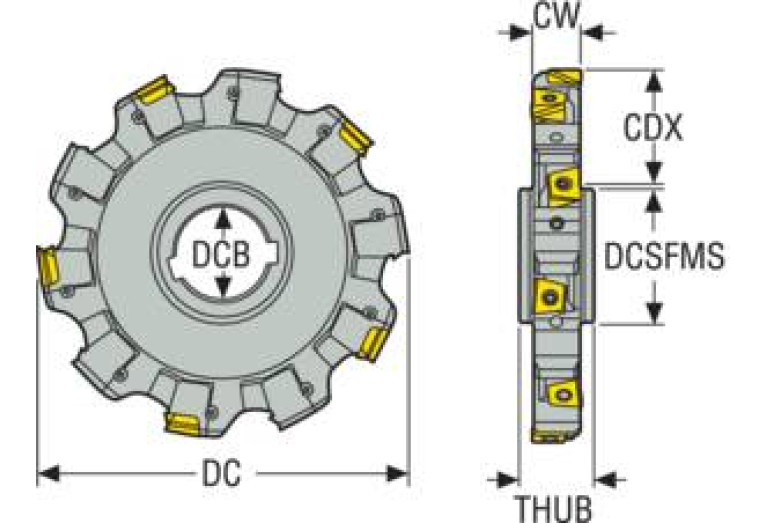

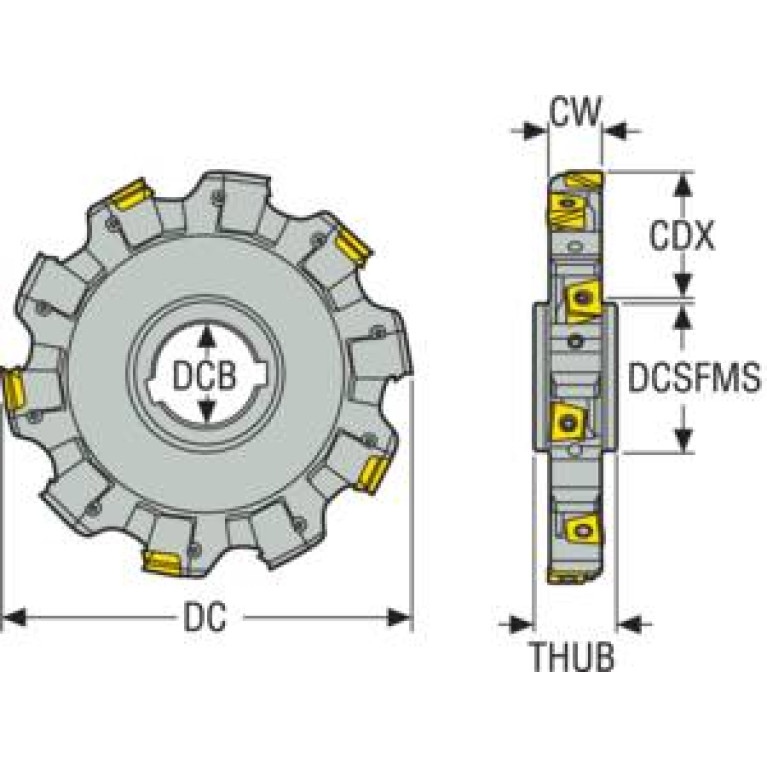

CDX Cutting depth maximum
86.7 mm
CICT Cutting item count
21
COMPC Company code
SO - SECO Tools
CWN Cutting width minimum
26 mm
DC Cutting diameter
254 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DHUB Hub diameter
76.2 mm
DIN
FDA20002120
FamilyProducts
335.25-10.00-XL1316N/ADJ
GAMF Rake angle radial
-8 Degree
GAMP Rake angle axial
-5 Degree
HAND Cutting direction
R - Right
ID Technical product number
02814652
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
FDA21S2000H$06
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
LNHQ140708TN4-M11
LOC-02 ISO
SO$$LN1407**3NB****
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-SO 335 25-1407
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
2000
LOC-03 DCONMS Diameter
50.8 mm
LOC-03 ISO
FDA21S2000H$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA20002120
Name Identifying order number
335.25-10.00-XL1316N/ADJ
OAL Overall length
31.75 mm
RPMX Rotational speed maximum
3500 1/min
Working process
No working processes available
WT Weight of item
6.275 kg
ZEFP Peripheral effective cutting edge count
7
