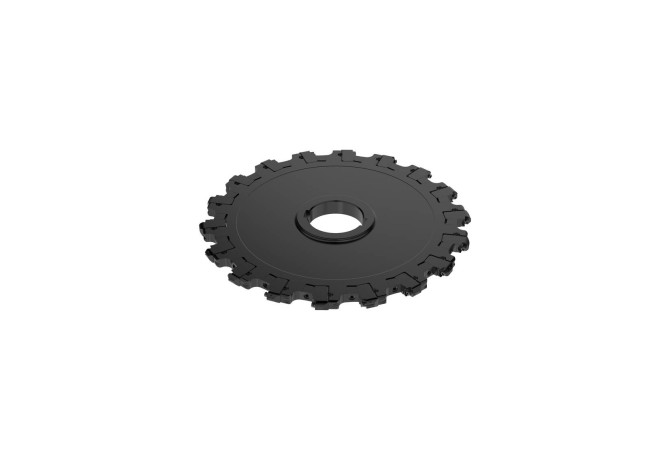

Главная Каталог продукции Toolunited 10 308-05 - Full-side slot milling cutter 335.18-250.1012XL.50-9N-R5

335.18-250.1012XL.50-9N-R5

335.18-250.1012XL.50-9N-R5 335.18-250.1012XL.50-9N-R5 335.18-250.1012XL.50-9N-R5

335.18-250.1012XL.50-9N-R5

SECO Tools
Артикул: 02712946
В наличии
В корзину
Описание
Характеристики

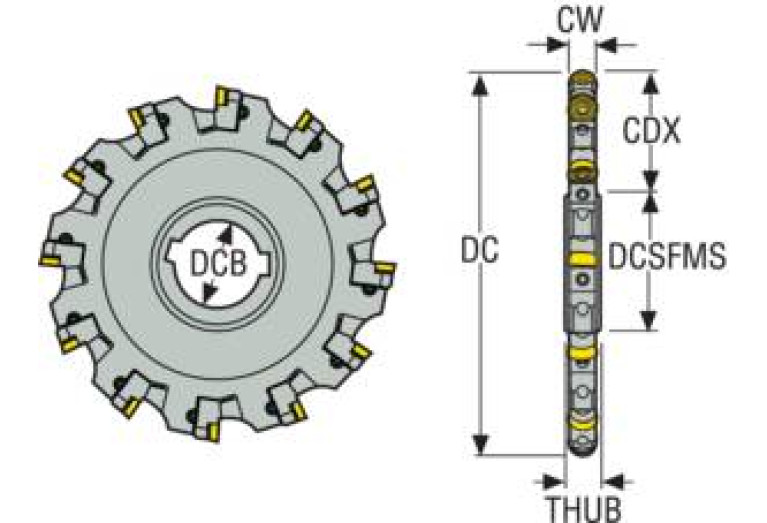

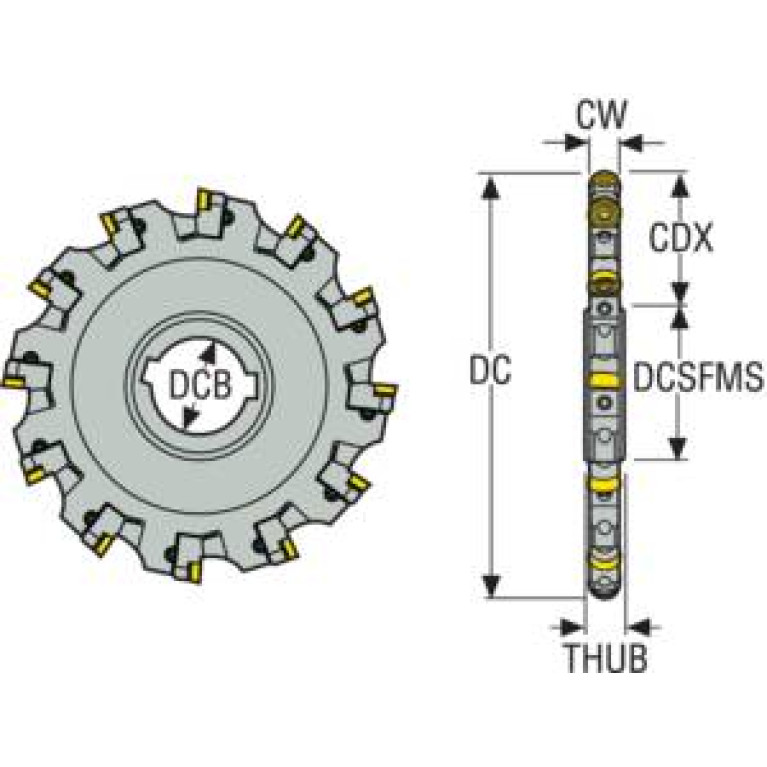

CCONMS Connection count machine side
1
CDX Cutting depth maximum
88.5 mm
CICT Cutting item count
27
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CWN Cutting width minimum
10 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
250 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
69 mm
DIN
FDA05002100
FamilyProducts
335.18-250.1012XL.50-9N-R5
GAMF Rake angle radial
1 Degree
GAMP Rake angle axial
2 Degree
HAND Cutting direction
N - Neutral
ID Technical product number
02712946
Interface codes
J6 /
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-02 BI Block index
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-RD10T3 3N
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA05002100
Name Identifying order number
335.18-250.1012XL.50-9N-R5
OAL Overall length
15 mm
RPMX Rotational speed maximum
6000 1/min
Working process
No working processes available
WT Weight of item
1.65 kg
ZEFF Face effective cutting edge count
9
ZEFP Peripheral effective cutting edge count
9
