Главная Каталог продукции Toolunited 10 308-05 - Full-side slot milling cutter 335.18-04.00-0.31F-5N

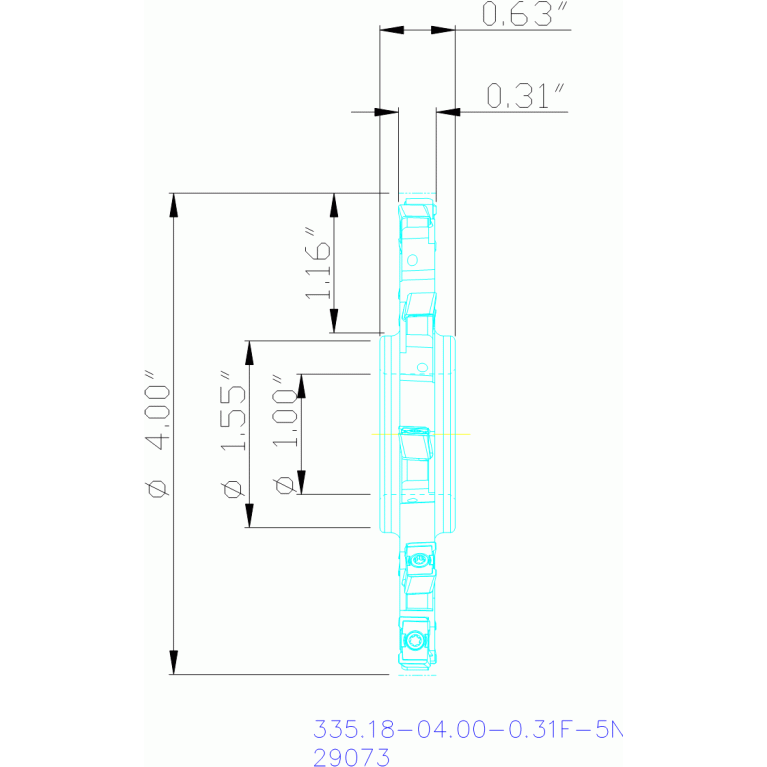

335.18-04.00-0.31F-5N

335.18-04.00-0.31F-5N 335.18-04.00-0.31F-5N 335.18-04.00-0.31F-5N 335.18-04.00-0.31F-5N

335.18-04.00-0.31F-5N

SECO Tools
Артикул: 02541837
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
0 Degree
A2B Clearance angle major Pos. B
0 Degree
BLDA Tool style code Position A
4
BLDB Tool style code Position B
4
C1A Insert thickness Pos. A
4.7 mm
C1B Insert thickness Pos. B
4.7 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
29.5 mm
CICT Cutting item count
10
COMPC Company code
SO - SECO Tools
CWN Cutting width minimum
7.92 mm
D1A Corner radius Pos. A
0.4 mm
D1B Corner radius Pos. B
0.4 mm
D4A Cutting edge angle major Pos. A
90 Degree
D4B Cutting edge angle major Pos. B
90 Degree
D6A Wiper edge length Pos. A
1.3 mm
D6B Wiper edge length Pos. B
1.3 mm
DC Cutting diameter
101.6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/7/2017
DHUB Hub diameter
41.4 mm
DIN
FDA10002220
FamilyProducts
335.18-04.00-0.31F-5N
GAMF Rake angle radial
-10 Degree
GAMP Rake angle axial
3 Degree
HAND Cutting direction
R - Right
ID Technical product number
02541837
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
1
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
LNKT050404PPN4-E05
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-LN3-0504
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10002220
Name Identifying order number
335.18-04.00-0.31F-5N
OAL Overall length
15.875 mm
RPMX Rotational speed maximum
9700 1/min
Working process
No working processes available
WT Weight of item
0.4 kg
ZEFP Peripheral effective cutting edge count
5
