M3255.051-B26-05-57
M3255.051-B26-05-57
Артикул:
7440087
В наличии
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
48.2 mm
BLDA Tool style code Position A
4
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
1.3 mm
CICT Cutting item count
25
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CWN Cutting width minimum
42.75 mm
CXSC Coolant exit style code
0 - Without coolant exit
DAH Diameter access hole
21 mm

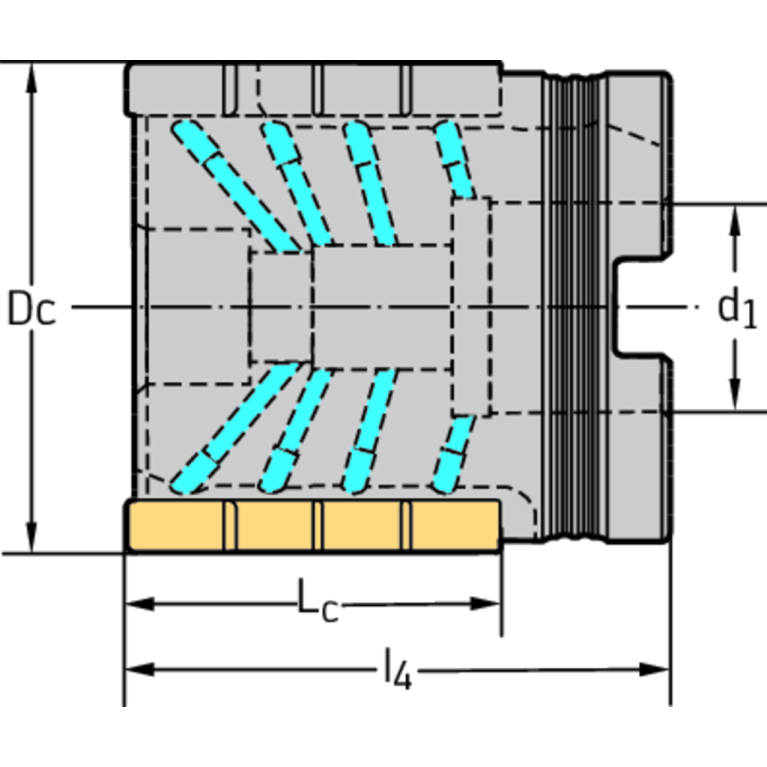

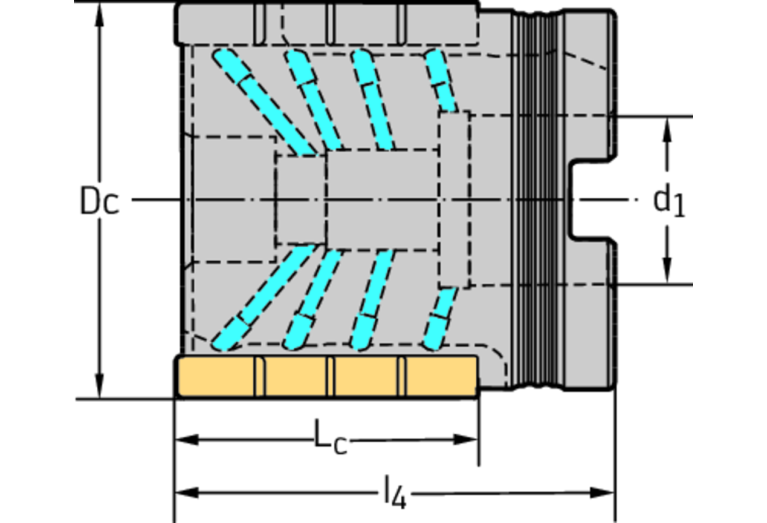

DC Cutting diameter
50.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
48.2 mm
DIN
FDA10001220
FamilyProducts

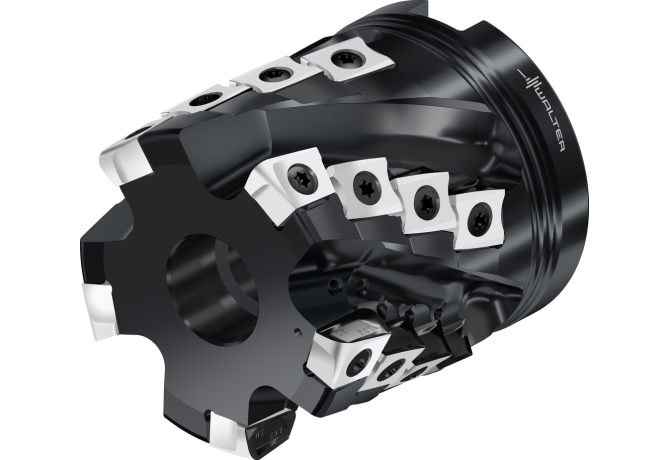

Helical milling cutters M3255
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
7440087
Interface codes
J6 / J61
ISO
FDA12S1000$$$$
ISYC Subclass
308-04 - Shell milling cutter
LOC-02 BI Block index
2
LOC-02 ISO
WR$$LN1206043R***04
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
W-LN1206043R***04
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 ISO
FDA12S1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10001220
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
M3255.051-B26-05-57
OAL Overall length
85.725 mm
RPMX Rotational speed maximum
20000 1/min
Working process
FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FZI - Circular milling
WT Weight of item
0.668 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
