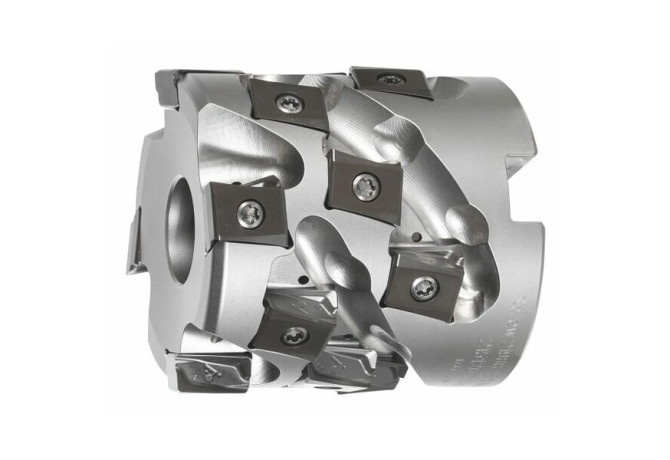

Главная Каталог продукции Toolunited 10 308-04 - Shell milling cutter 215126 50/4

215126 50/4

Артикул: 215126 50/4

В наличии

В корзину

Описание

Характеристики

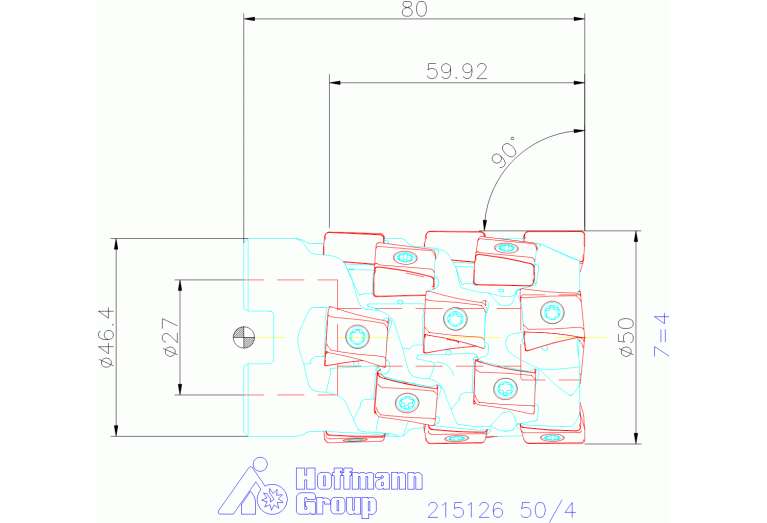

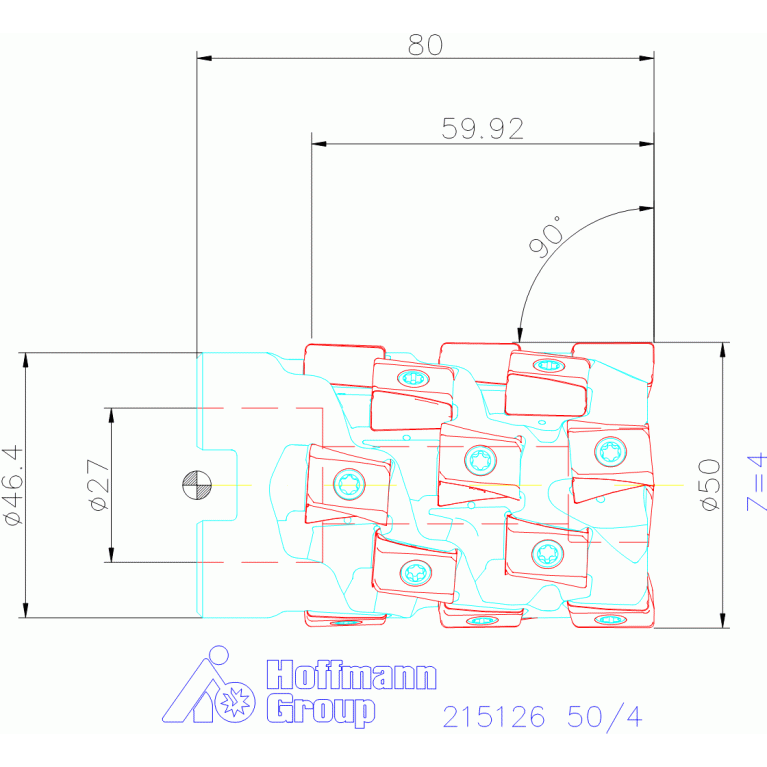

BD Body diameter

46.4 mm

CCONMS Connection count machine side

CDX Cutting depth maximum

59 mm

CICT Cutting item count

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.8 mm

DC Cutting diameter

50 mm

DCCB Counterbore diameter connection bore

20 mm

DCP Data chip provision

0 - Without data chip

DHUB Hub diameter

46.4 mm

DIN

FDA02702210

FamilyProducts

90° tangential high performance indexable end/face mill Softcut® MTC

GAMF Rake angle radial

-22 Degree

GAMP Rake angle axial

-6 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

308-04 - Shell milling cutter

LCCB Counterbore depth connection bore

13 mm

LOC-02 BI Block index

LOC-02 MIID Master insert identification

LOEU1307xxTR

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

LO1307083R

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0270

LOC-03 DCONMS Diameter

27 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02702210

Name Identifying order number

215126 50/4

OAL Overall length

80 mm

Working process

No working processes available

WT Weight of item

0.6 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
